Rogue Truck Campers

Designed with the Adventurer in mind. The Rogue by Palomino gives you a camper that is lightweight, low-profile, rugged, and well equipped that doubles as a comfortable place to call home whether you’re completely connected in a campground or completely off-grid on a mountain on in the forest. Our standard Electric Roof Lift System, 20,000 BTU Furnace, 2 Burner Cook-top, and Dome Sky-Light give you all the things you’ve come to expect in a Palomino Truck Camper. And with Options like our Badlands Package you’re able to have the power to enjoy all these features along with the ability to take your toys along with you. No matter what size truck you have, we have a Rogue that will work for you.

Care Camps, fighting cancer and making memories

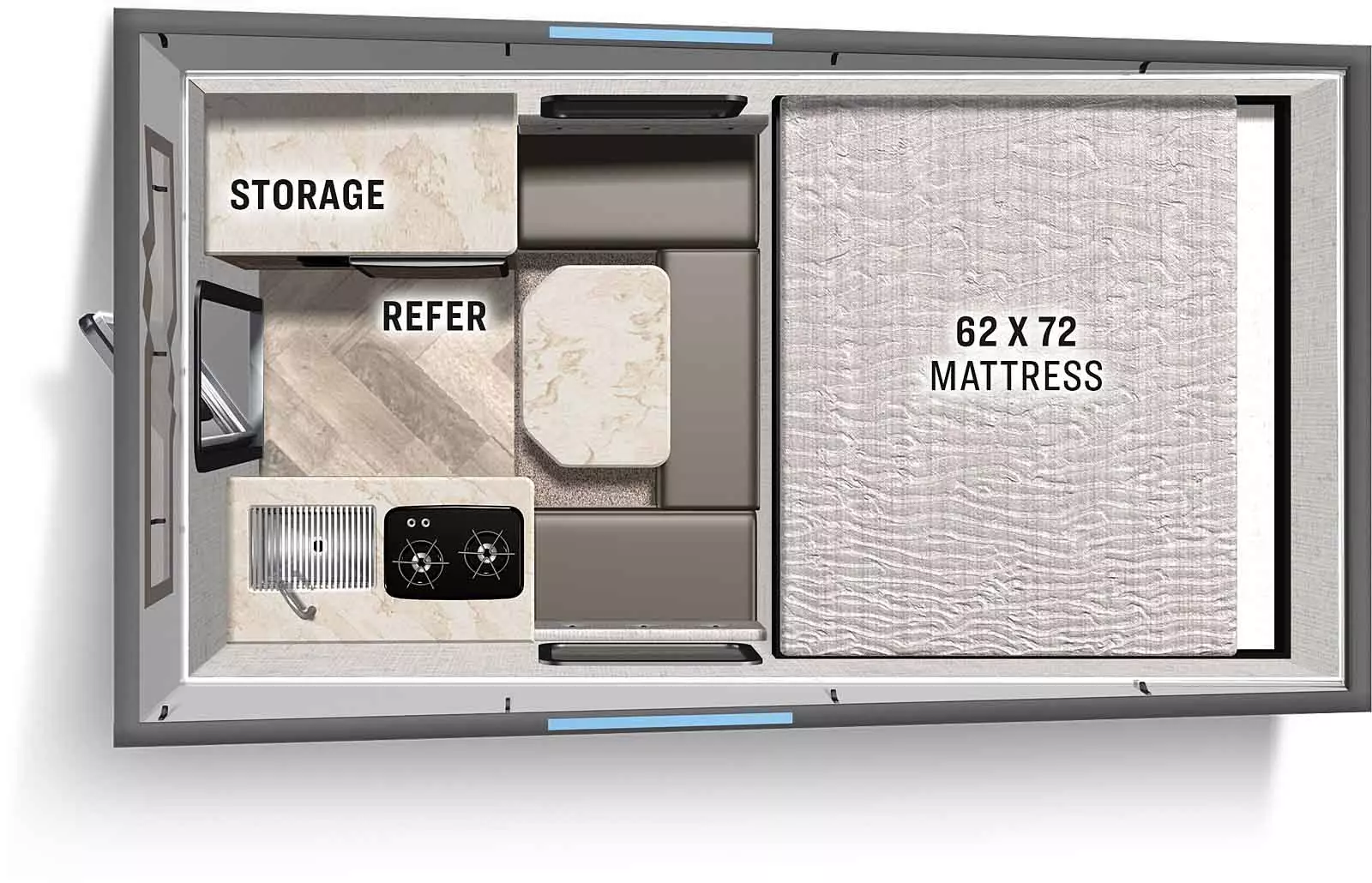

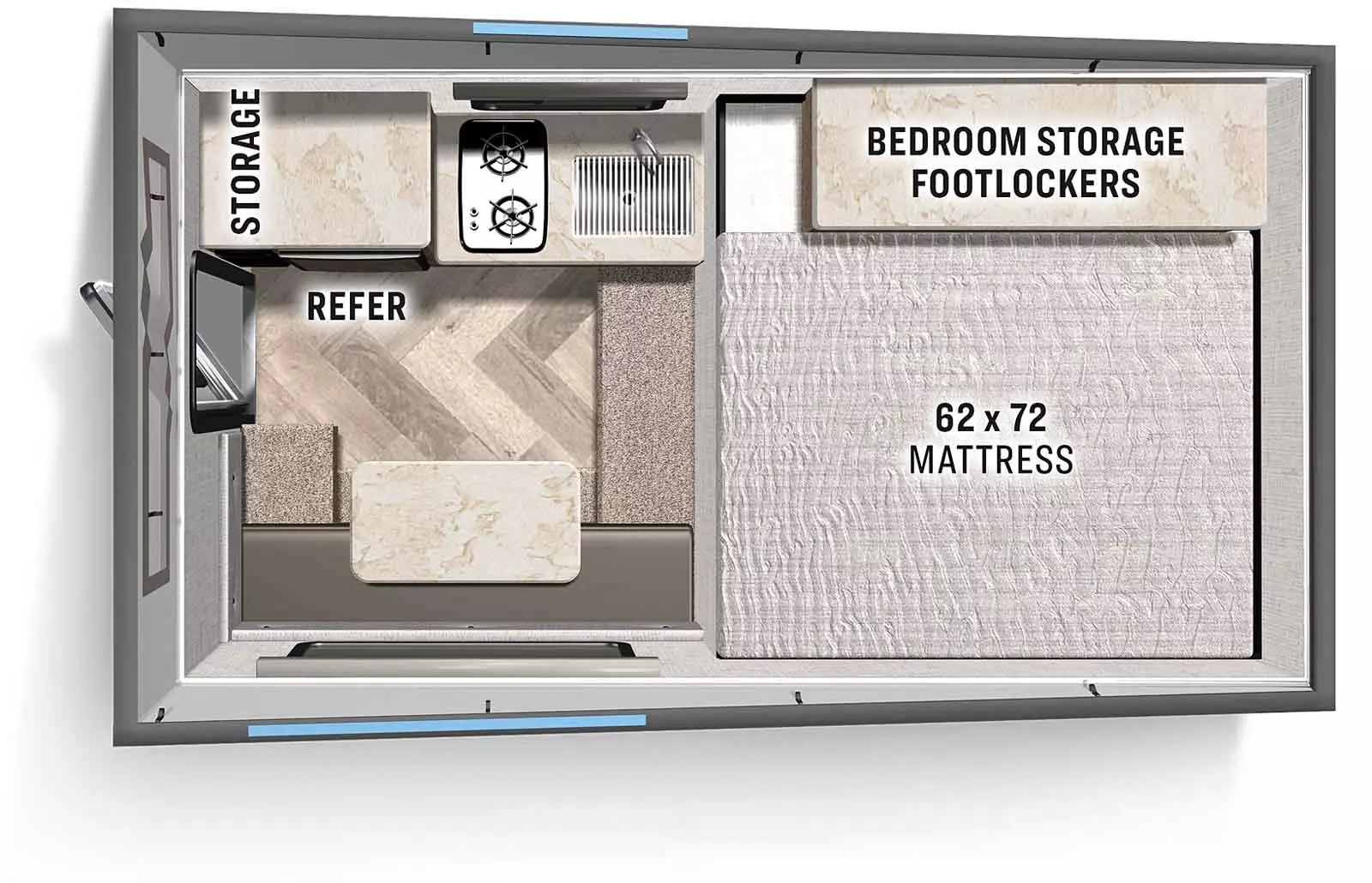

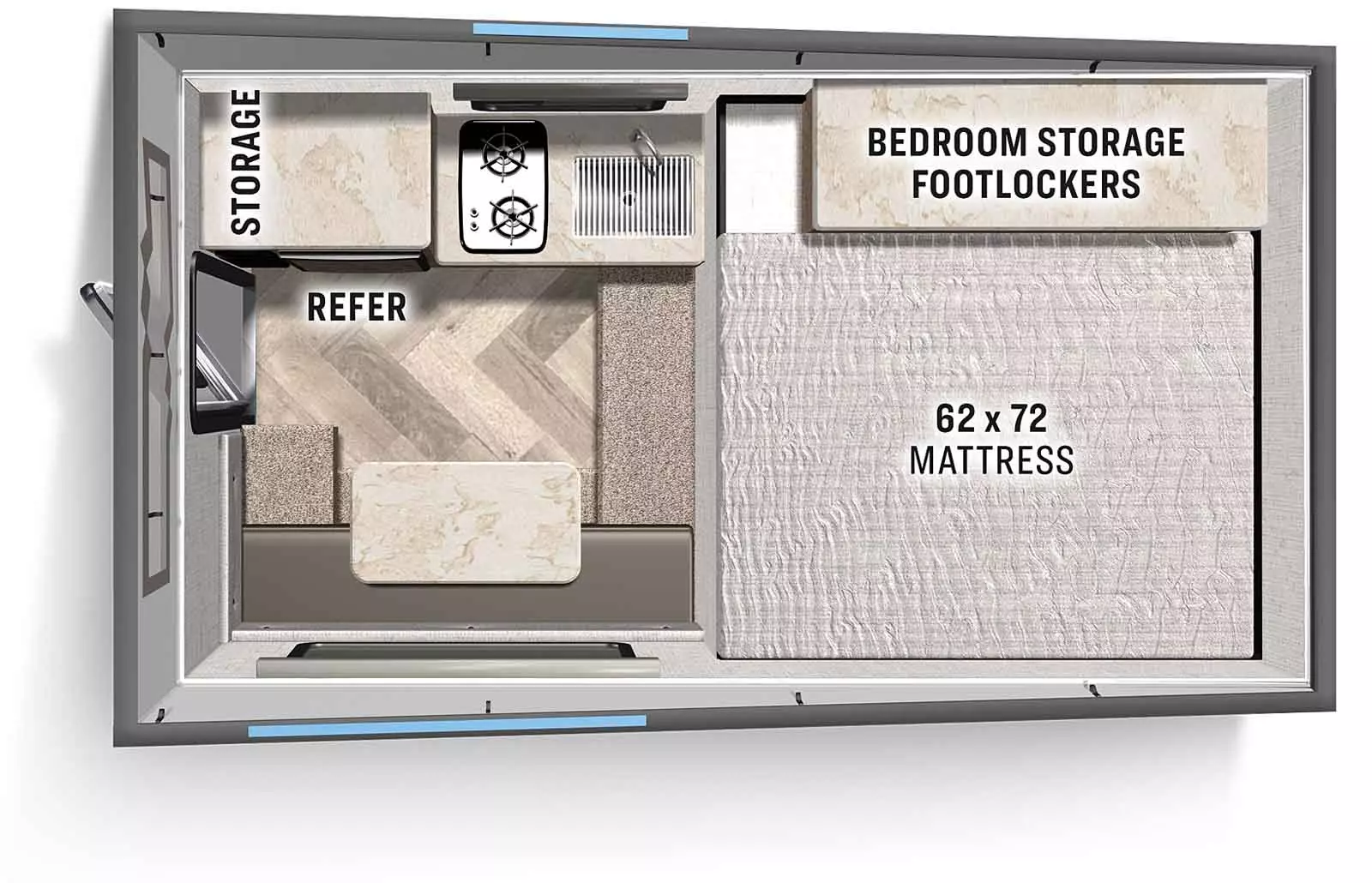

Floorplans

Print

Rogue EA
Rogue EB


Specifications

Print

Floorplan: EA-1 : Rogue EA EA-2 : Rogue EA EB-1 : Rogue EB EB-2 : Rogue EB
UVW:1,402 lb.1,243 lb.1,402 lb.1,243 lb.
Exterior Length:12' 5"12' 2"12' 5"12' 2"
Exterior Height:6' 0"6' 0"6' 0"6' 0"
Exterior Width:86"80"86"80"
Interior Width:7' 8"7' 2"7' 8"7' 2"
Fresh Water:8.00 gal.8.00 gal.8.00 gal.8.00 gal.
Gray Water:0.00 gal.0.00 gal.0.00 gal.0.00 gal.
Black Water:0.00 gal.0.00 gal.0.00 gal.0.00 gal.
Floor Length:6' 11"6' 6"6' 11"6' 6"
Wheel Well:45"39"45"39"
Center of Gravity:29.00"27.50"29.00"27.50"
LP Tank Capacity:20 lb.20 lb.20 lb.20 lb.

GVWR (Gross Vehicle Weight Rating) – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GAWR (Gross Axle Weight Rating) – is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by a combination of all axles.

UVW (Unloaded Vehicle Weight)* – is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s) and tongue or pin and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity) ** – is the amount of weight available for fresh potable water, cargo, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before filling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Palomino RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Palomino RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.

Note: Specifications are subject to change without notice.

Features & Options

Print
  • Solar Prep
  • Carbon Monoxide Detector
  • Maxx Air Vent
  • 20,000 BTU Furnace
  • Pre-Wired for Electric Jacks
  • Electric Roof Lift w/ Manual Override
  • Large Skylight w/ Shade
  • 3 cu. ft. Refrigerator
  • Two-Burner Cooktop
  • Black Rieco Titan Convertible Jacks
  • Hi Gloss Exterior Fiberglass (Option of White or Grey)
  • AM/FM iPod Bluetooth Stereo
  • Second Battery Tray
  • Dually Bracket
  • Electric Jacks
  • Entry Step (4)
  • Hot Water/Outside Shower
  • Solar Panel
  • Thule Roof Rack
  • Mesa Maple Cabinets (Lighter Wood)
  • Walnut Maple Cabinets (Darker Wood)
  • Thule Roof Rack
  • 110 Watt Solar Panel
  • Second Battery Tray


Videos

Some videos may show features or options not available on all products. Contact our service representatives or your local dealer if you have questions about how your specific RV operates.
