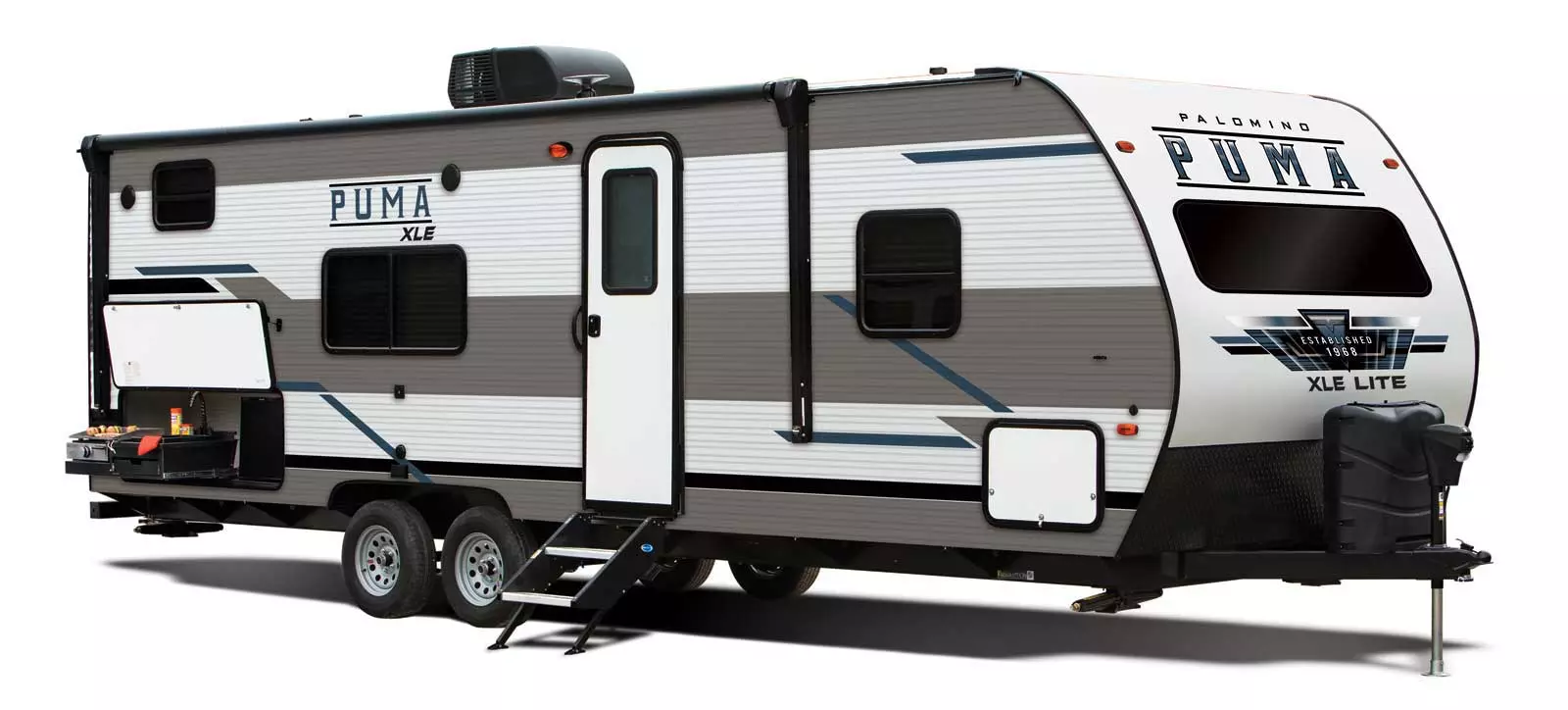

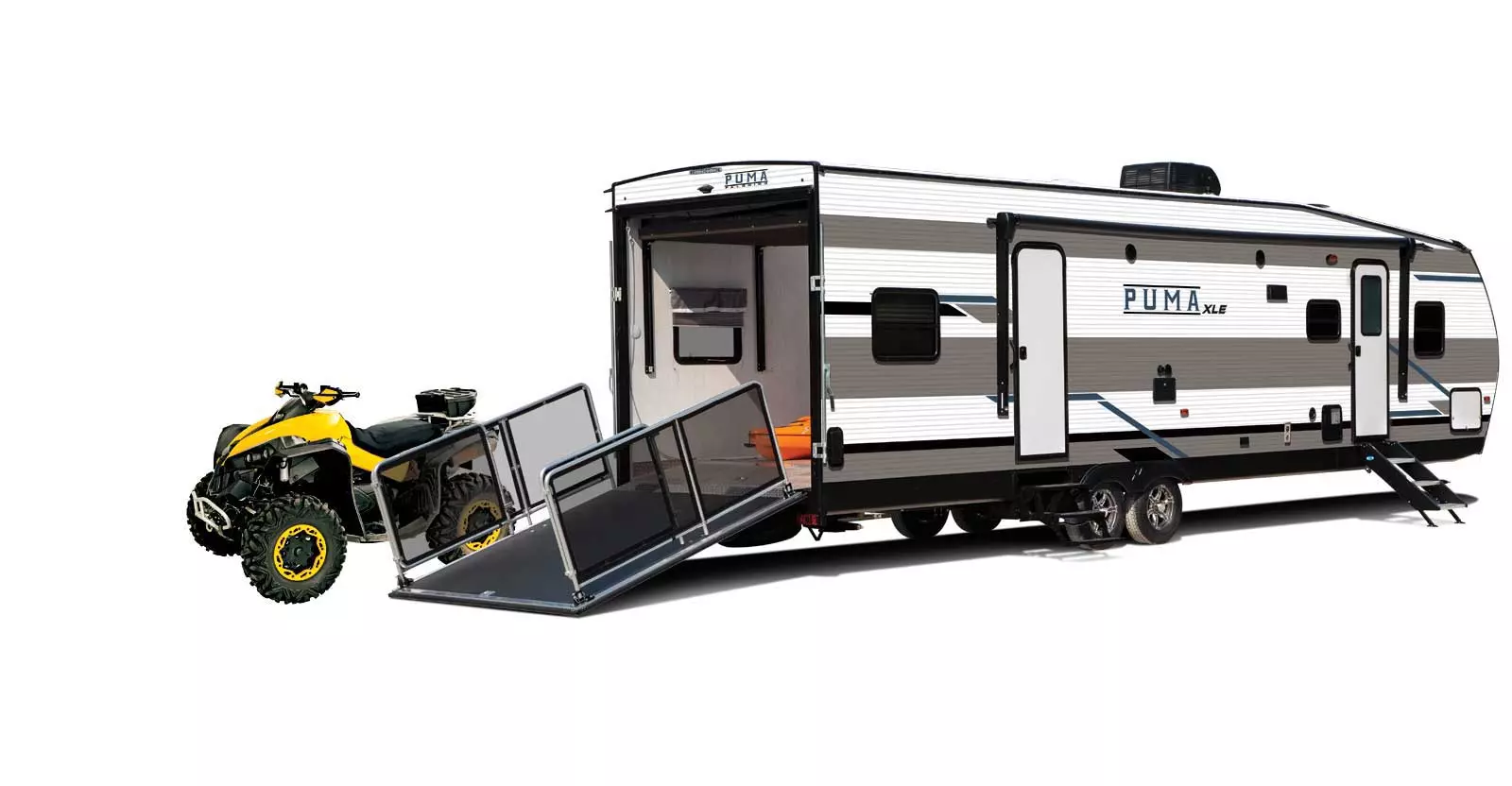

Puma XLE Travel Trailers and Toy Haulers

Puma XLE is loaded with creature comforts and is designed to offer the camping lifestyle at an affordable price. It’s a lighter weight trailer than most in its class, that’s not light on amenities. These quality crafted campers feature solid I-beam frames, one-piece 5/8" floor decking, one-piece rubber roofs and large fresh water tanks. Get out there and prowl with the Puma XLE!

Care Camps, fighting cancer and making memories

Floorplans

Print

Toy Haulers
Travel Trailers


Specifications

Print

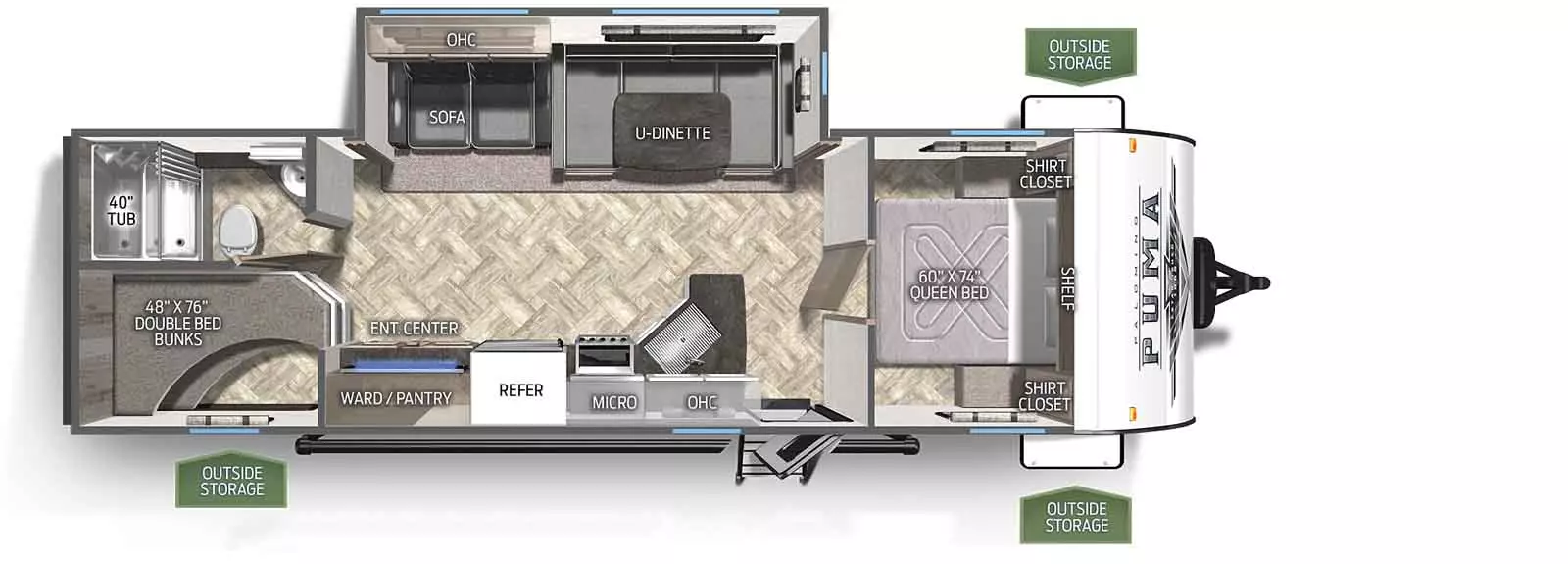

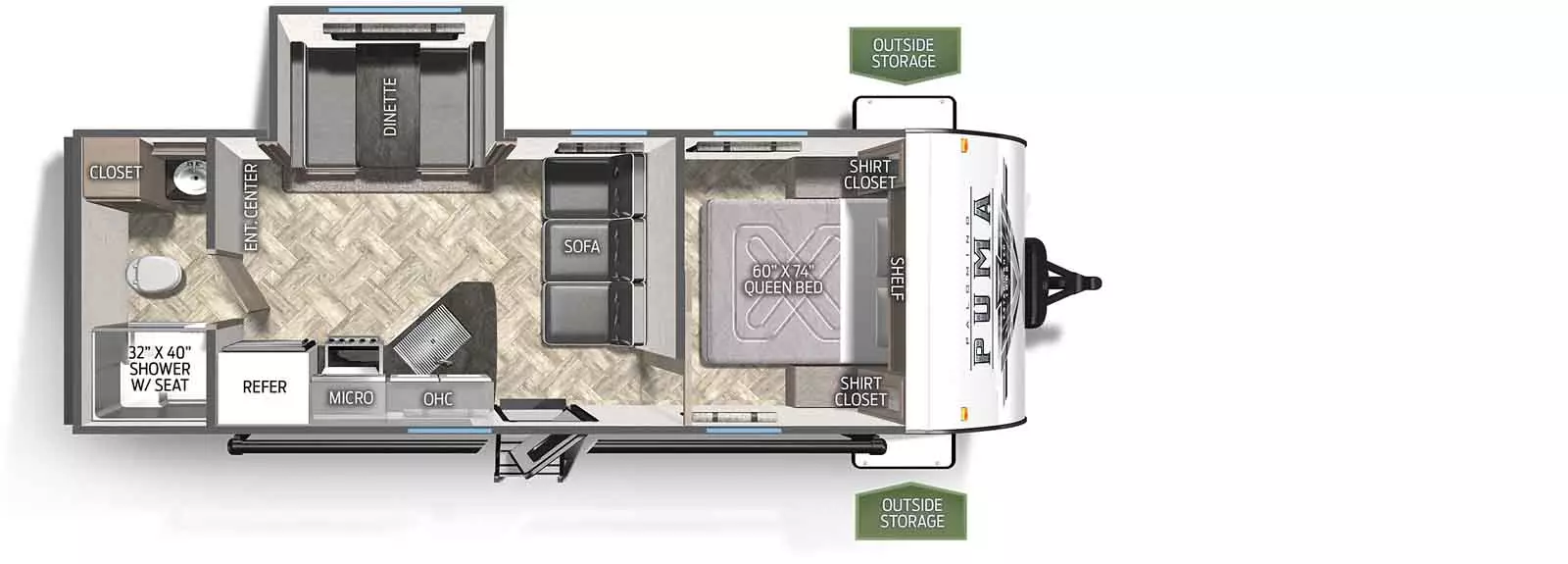

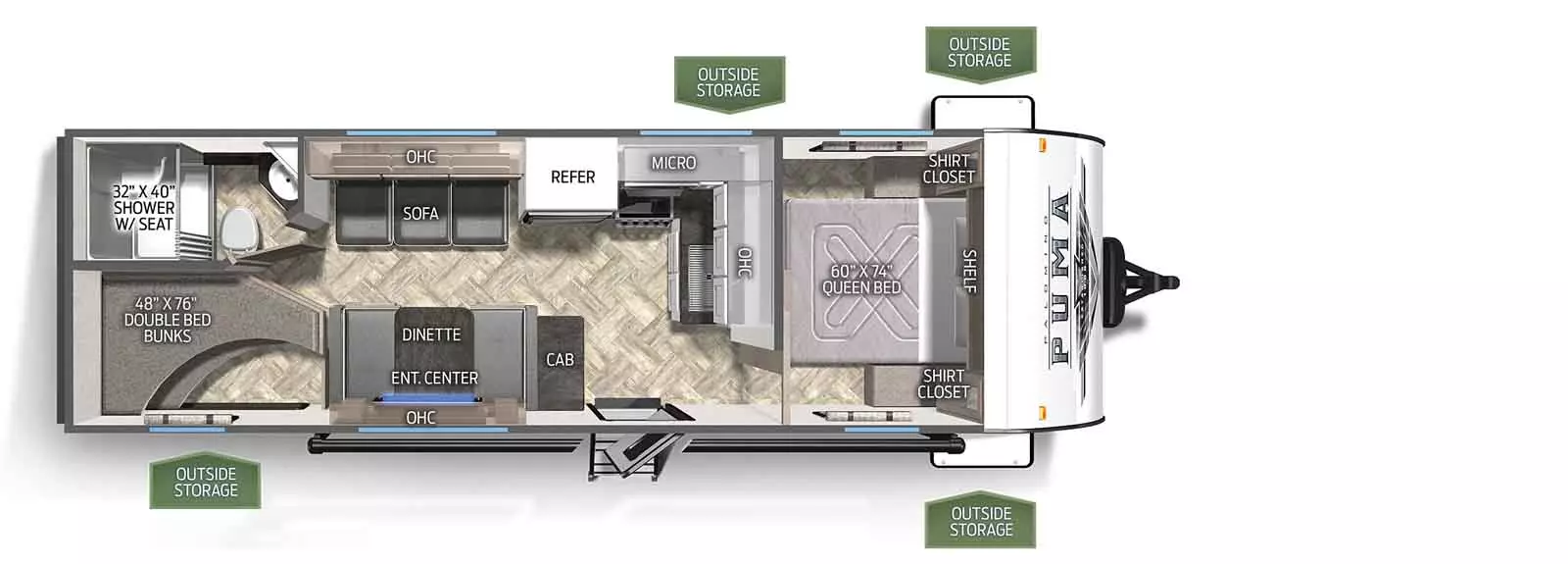

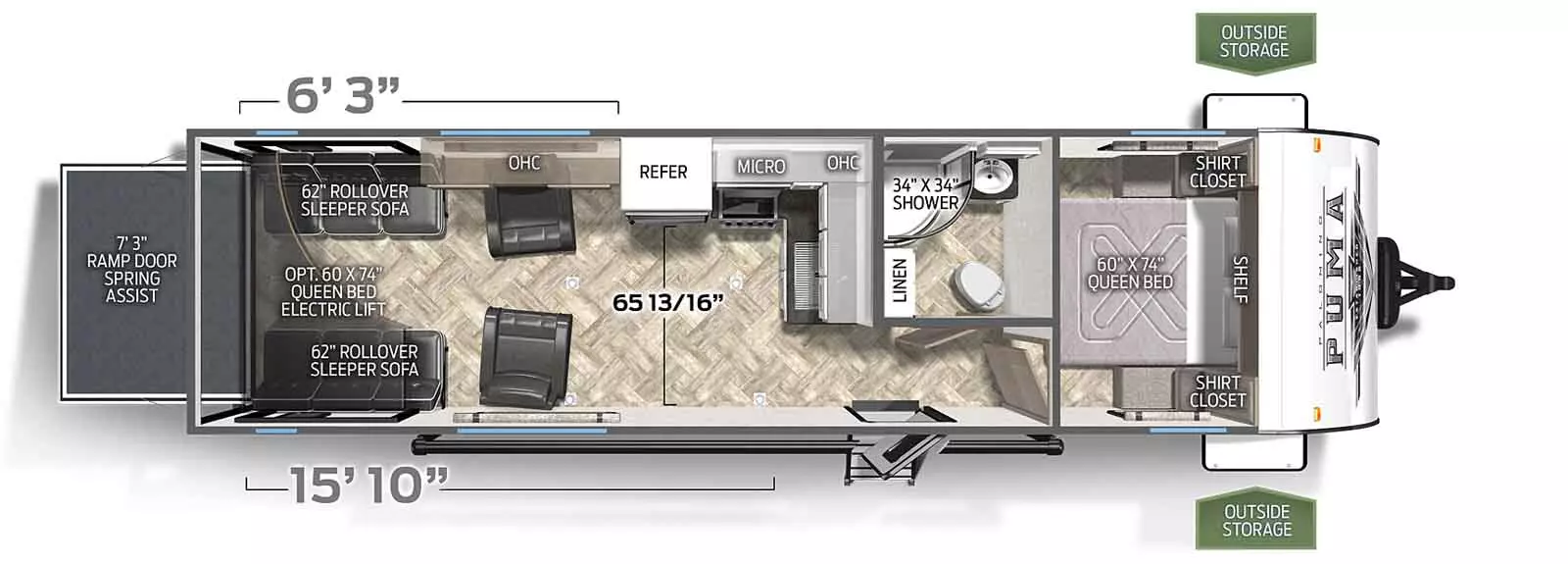

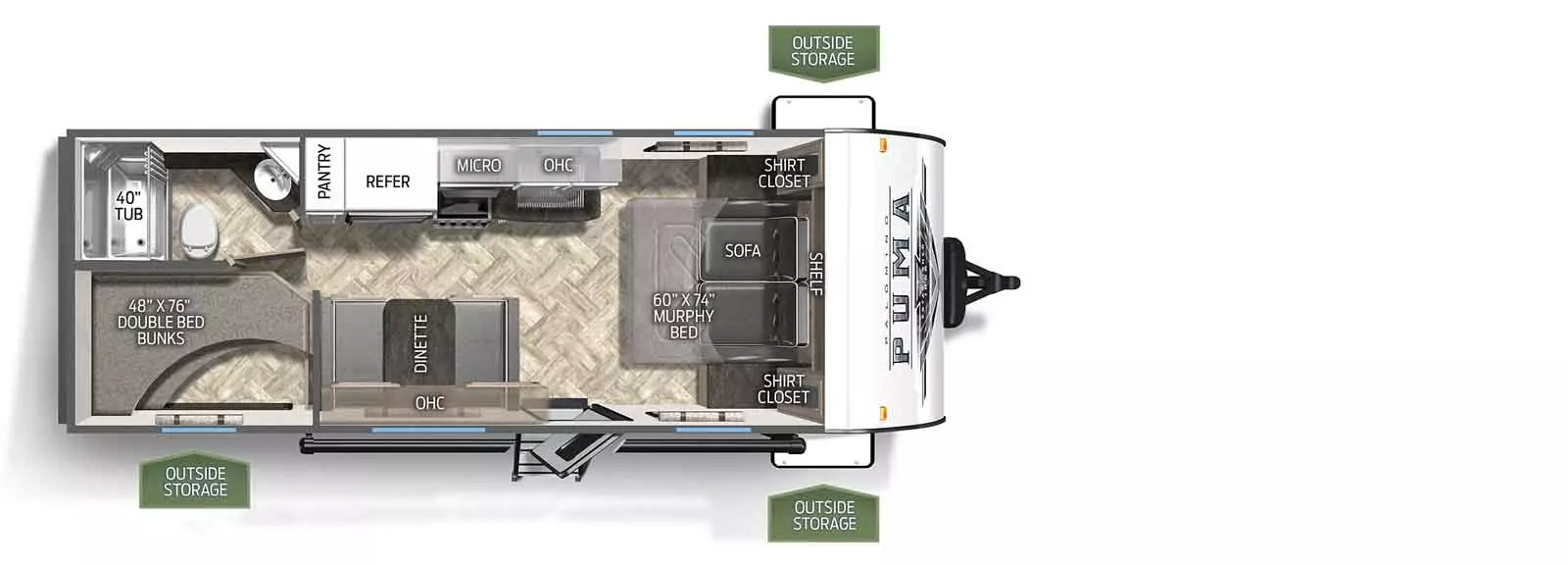

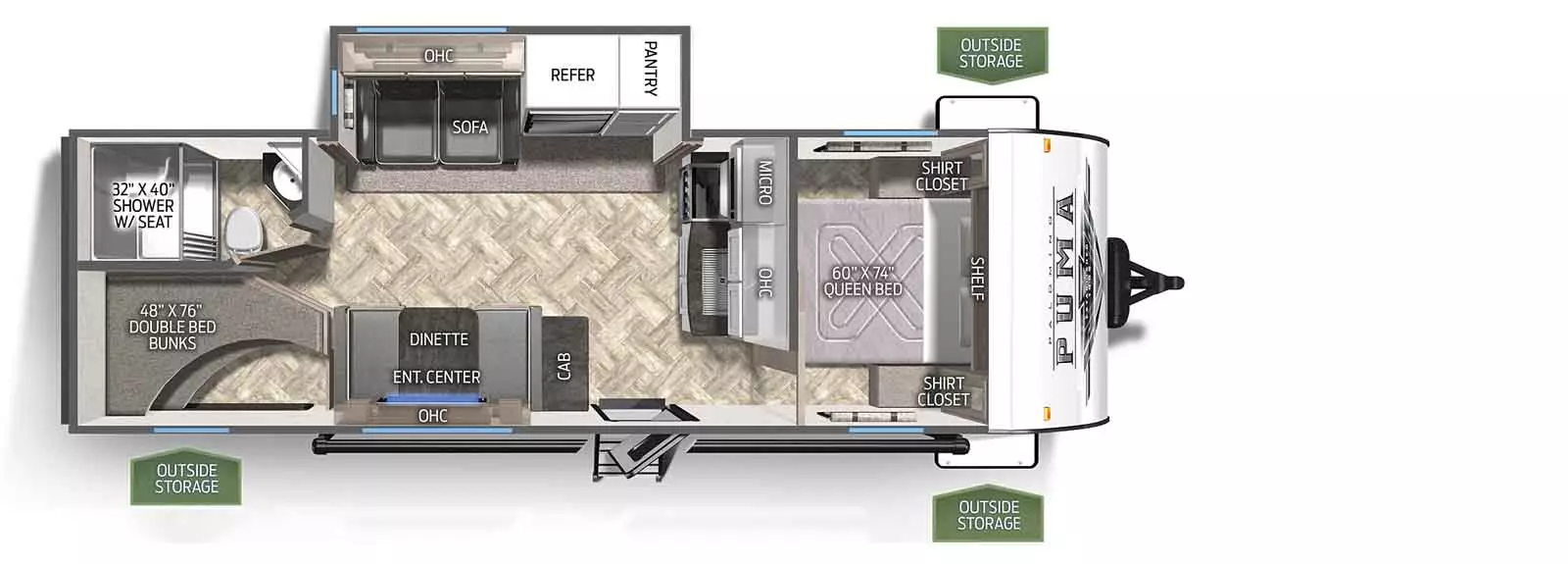

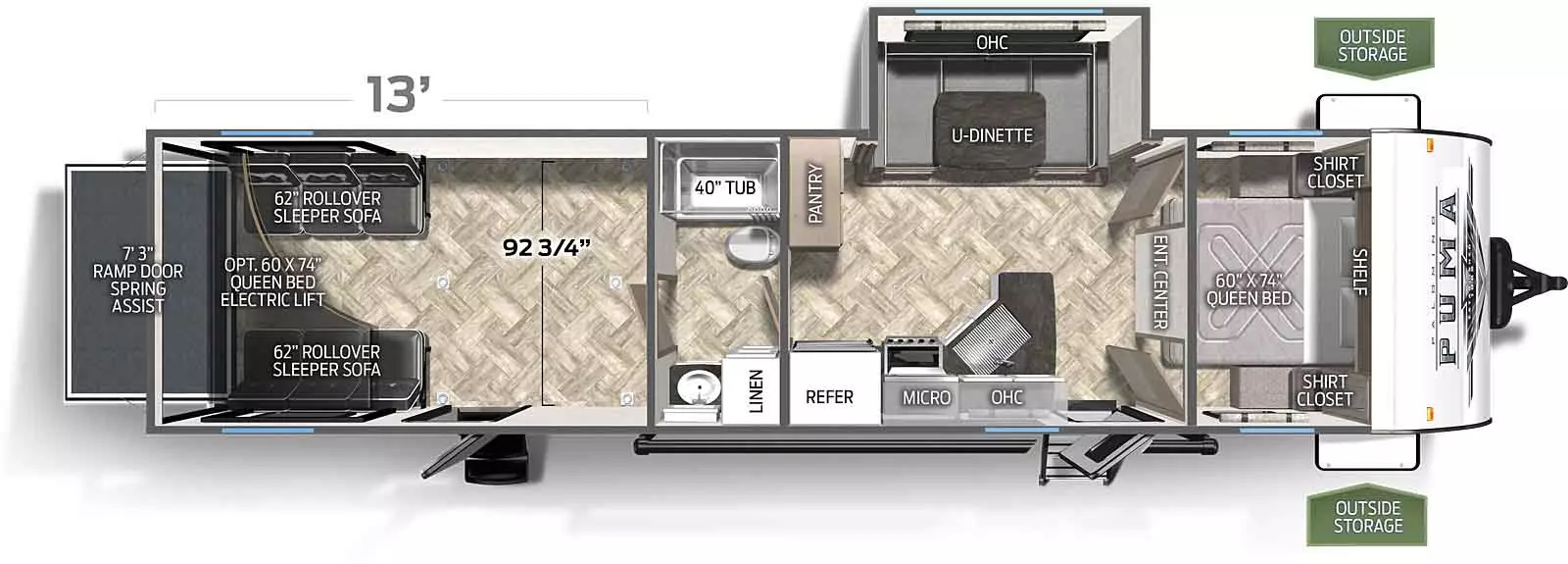

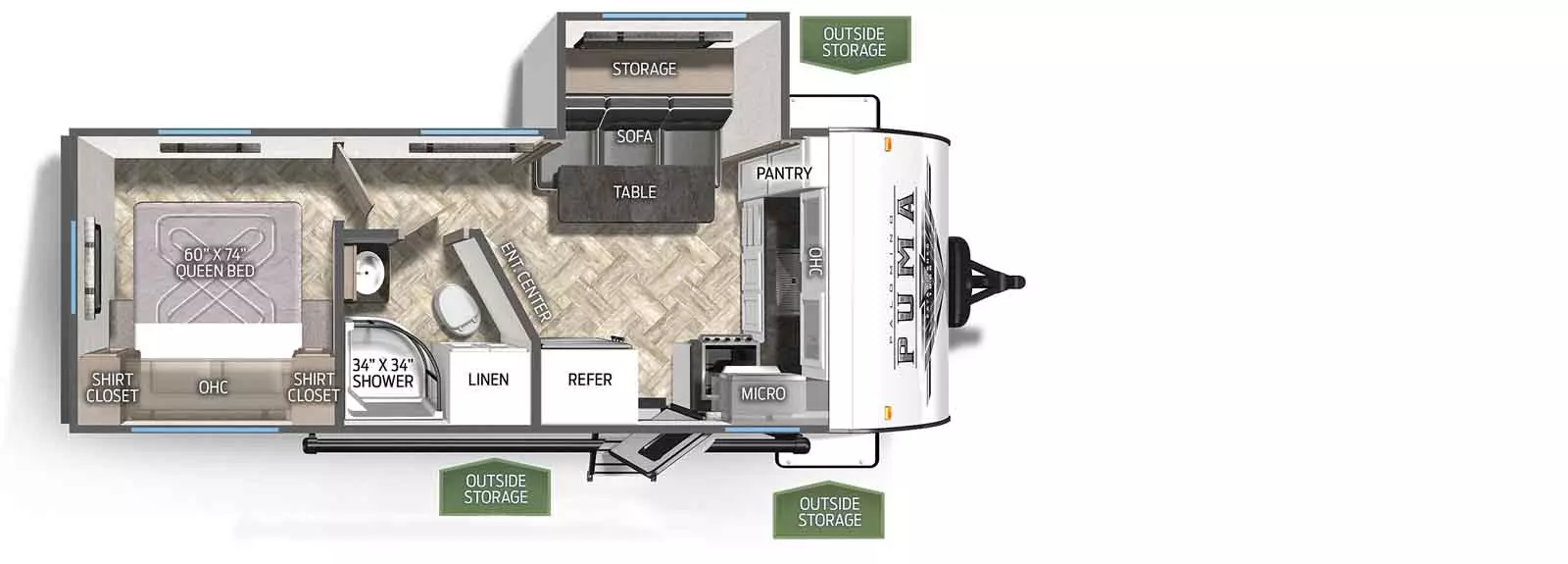

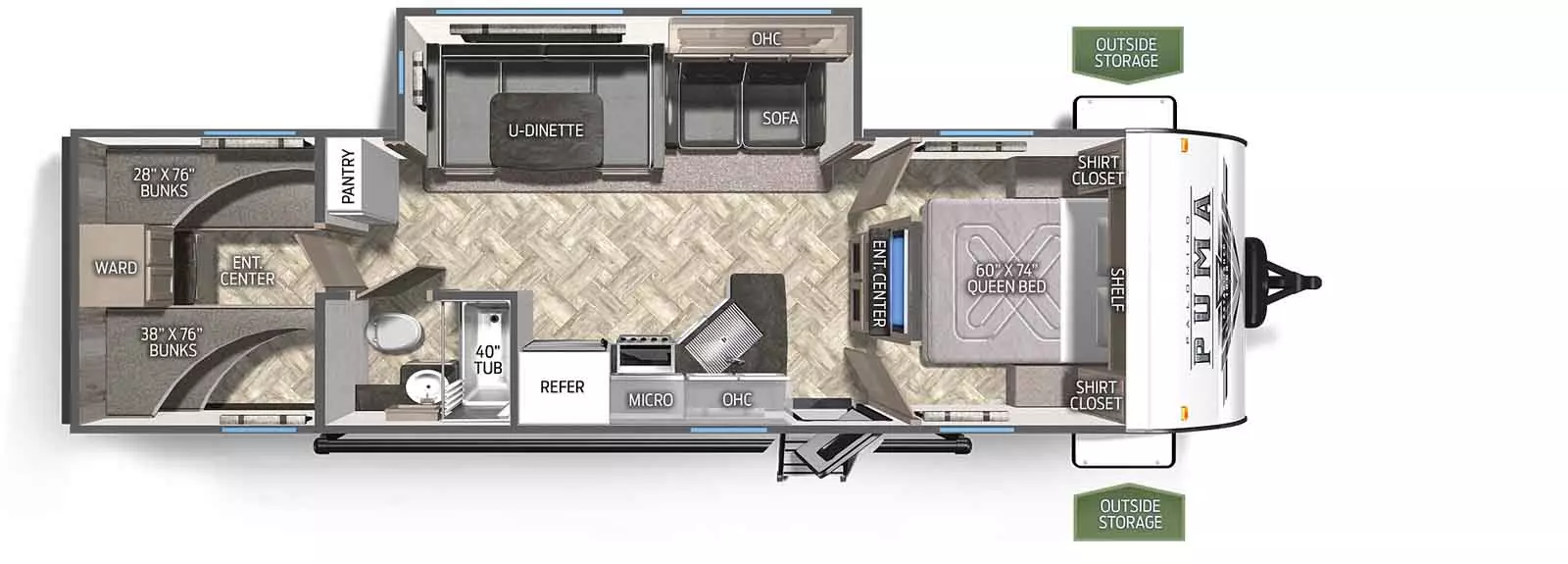

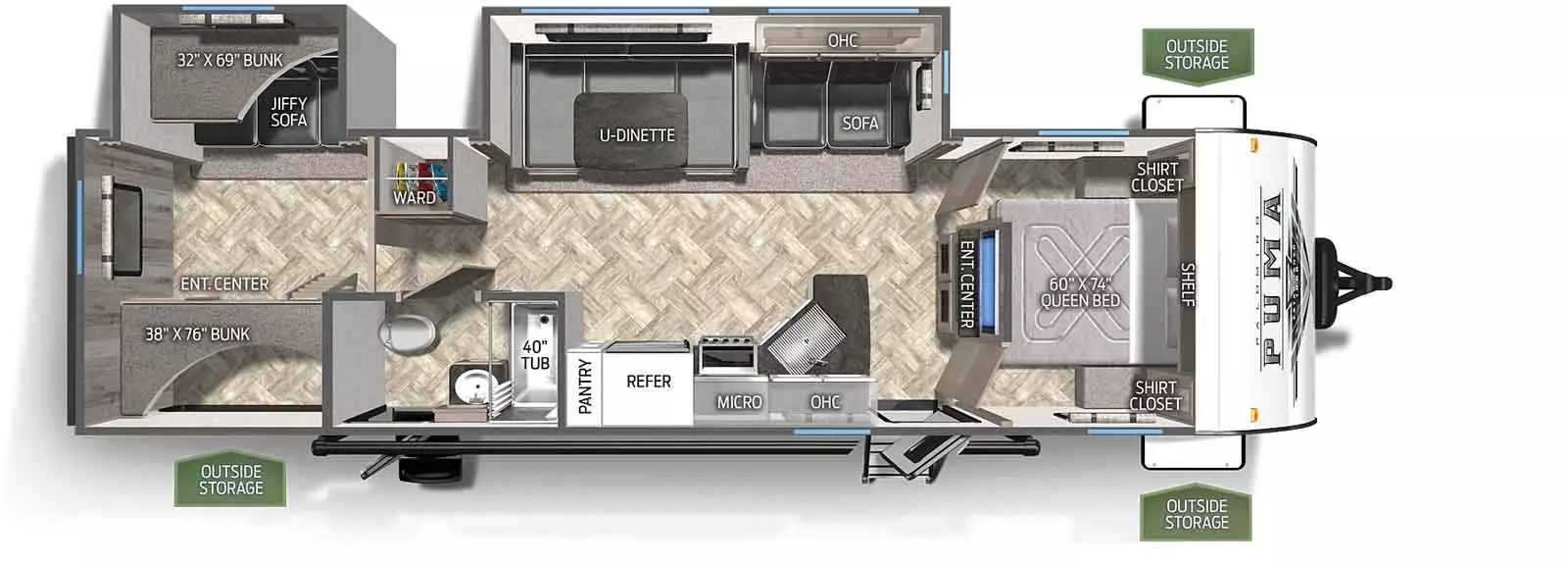

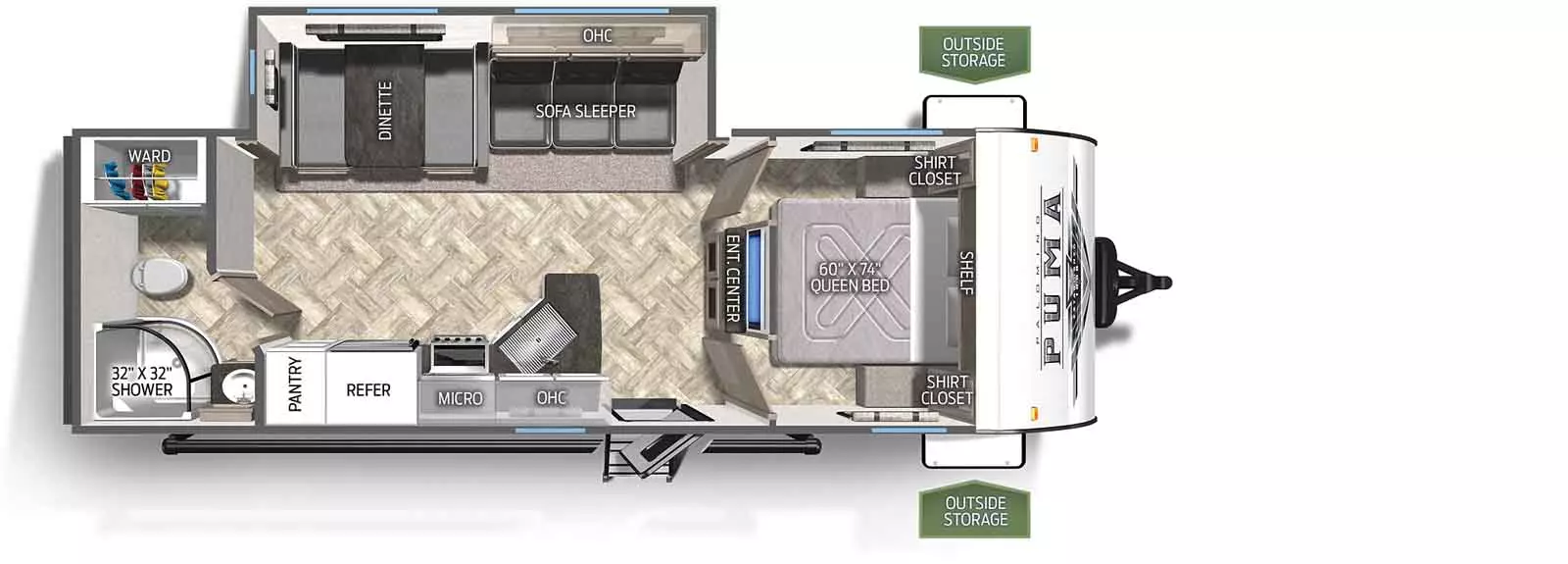

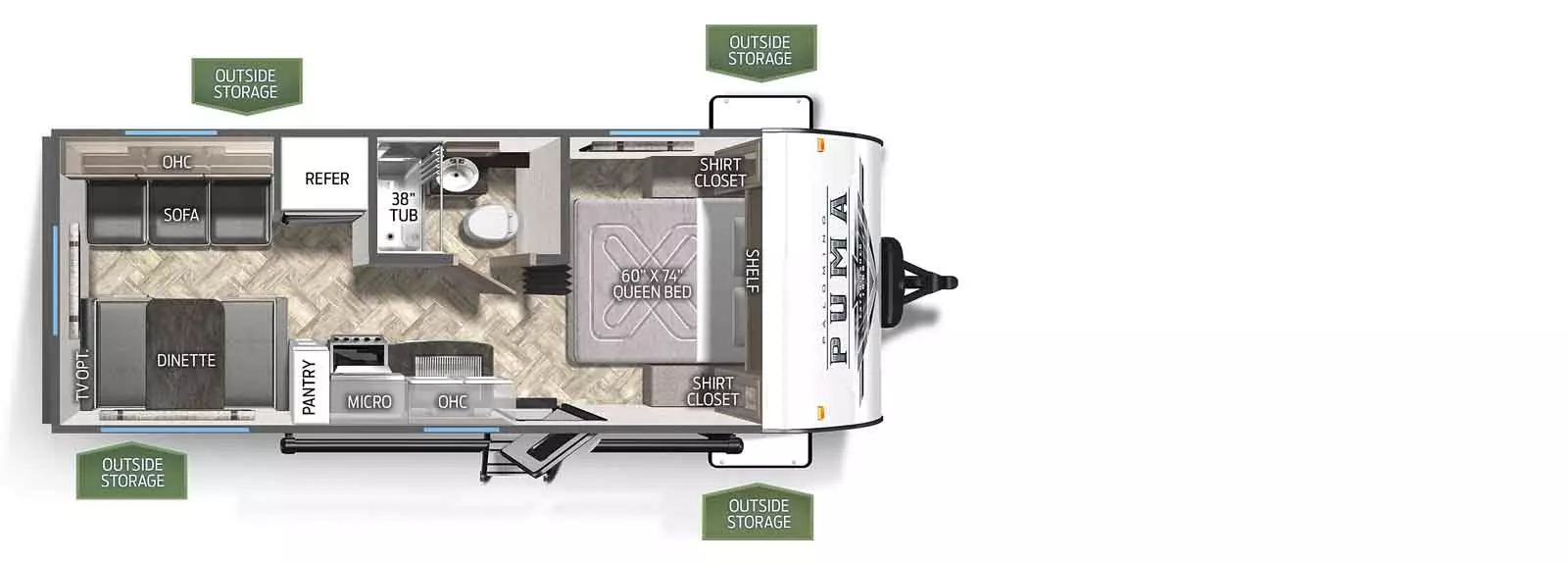

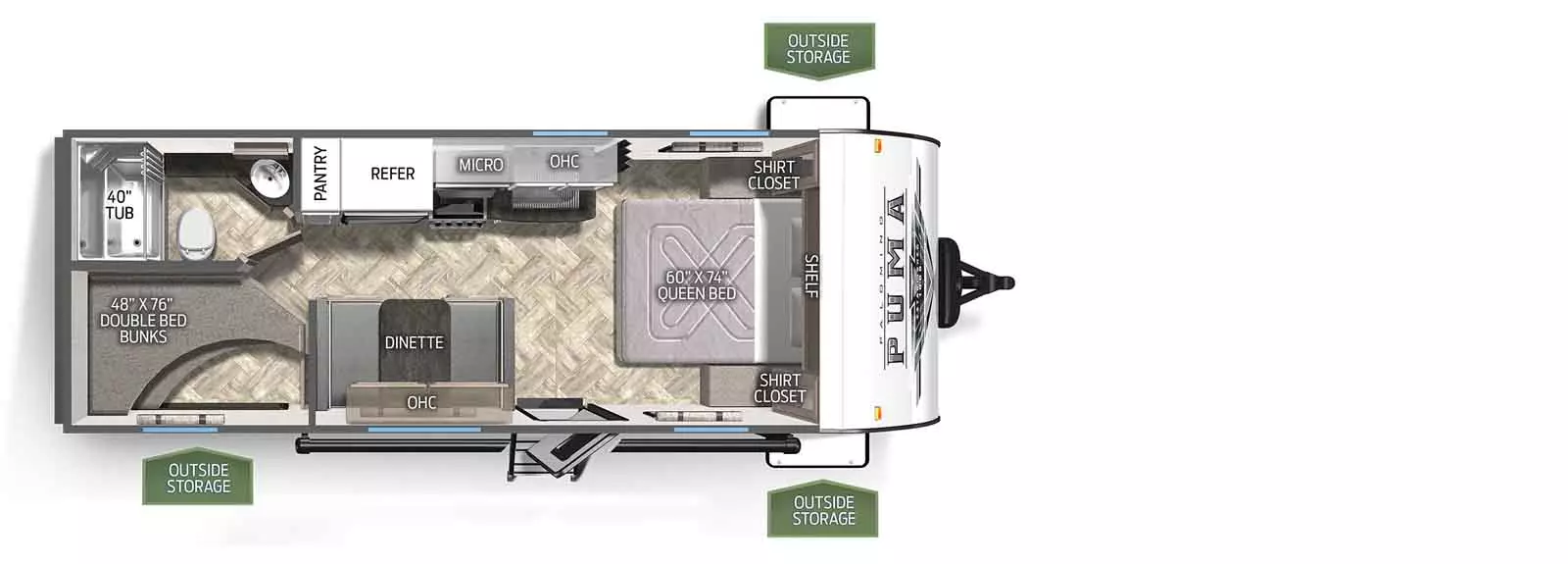

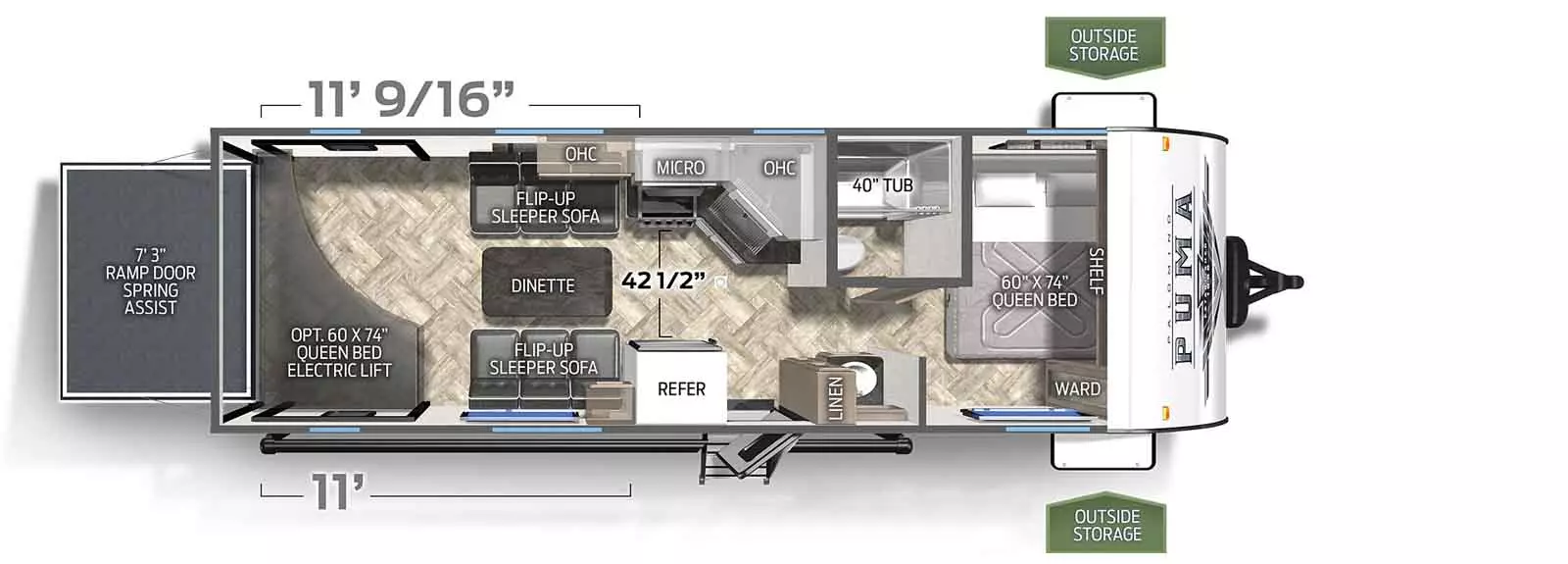

Floorplan: 24FBC : Toy Haulers 25TFC : Toy Haulers 27QBC : Toy Haulers 27TSB : Toy Haulers 29TSS : Toy Haulers 20MBC : Travel Trailers 20RLC : Travel Trailers 22FKC : Travel Trailers 22RBC : Travel Trailers 23BHC : Travel Trailers 24FBSC : Travel Trailers 25BHSC : Travel Trailers 25RBSC : Travel Trailers 27RBQC : Travel Trailers 30DBSC : Travel Trailers 31BHSC : Travel Trailers
Hitch Weight:775 lb.745 lb.892 lb.1,145 lb.1,235 lb.450 lb.600 lb.685 lb.435 lb.600 lb.556 lb.650 lb.590 lb.687 lb.754 lb.912 lb.
GVWR:7,775 lb.8,800 lb.9,200 lb.9,995 lb.11,435 lb.6,000 lb.5,708 lb.6,633 lb.5,800 lb.6,608 lb.6,500 lb.7,528 lb.7,300 lb.7,687 lb.8,000 lb.9,600 lb.
UVW:6,061 lb.6,137 lb.6,646 lb.7,268 lb.7,853 lb.4,458 lb.4,208 lb.5,133 lb.4,243 lb.5,108 lb.4,846 lb.6,028 lb.5,698 lb.5,933 lb.6,338 lb.7,946 lb.
CCC:1,714 lb.2,663 lb.2,554 lb.2,727 lb.3,582 lb.1,542 lb.1,500 lb.1,500 lb.1,557 lb.1,500 lb.1,654 lb.1,500 lb.1,602 lb.1,754 lb.1,662 lb.1,654 lb.
Exterior Length:29' 9"29' 9"34' 1"33' 7"37' 6"26' 0"24' 10"26' 0"26' 0"30' 1"27' 6"30' 5"29' 8"33' 2"33' 7"35' 6"
Exterior Height:12' 2"12' 2"12' 2"12' 2"12' 2"10' 2"10' 2"10' 2"10' 2"10' 2"10' 2"11' 1"11' 1"11' 1"11' 1"11' 1"
Exterior Width:96"96"96"96"96"96"96"96"96"96"96"96"96"96"96"96"
Fresh Water:43.00 gal.43.00 gal.43.00 gal.43.00 gal.43.00 gal.43.00 gal.43.00 gal.43.00 gal.43.00 gal.45.00 gal.43.00 gal.43.00 gal.43.00 gal.43.00 gal.43.00 gal.43.00 gal.
Gray Water:34.50 gal.34.50 gal.34.50 gal.34.50 gal.34.50 gal.34.50 gal.30.00 gal.65.00 gal.34.50 gal.70.00 gal.34.50 gal.70.00 gal.30.00 gal.64.50 gal.34.50 gal.34.50 gal.
Black Water:34.50 gal.34.50 gal.34.50 gal.34.50 gal.34.50 gal.34.50 gal.35.00 gal.30.00 gal.34.50 gal.35.00 gal.34.50 gal.35.00 gal.34.50 gal.30.00 gal.34.50 gal.30.00 gal.
Awning Size:18'14'19'21'21'14'15'18'10'19'16'19'18'21'18'21'

GVWR (Gross Vehicle Weight Rating) – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GAWR (Gross Axle Weight Rating) – is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by a combination of all axles.

UVW (Unloaded Vehicle Weight)* – is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s) and tongue or pin and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity) ** – is the amount of weight available for fresh potable water, cargo, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before filling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Palomino RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Palomino RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.

Note: Specifications are subject to change without notice.

Features & Options

Print

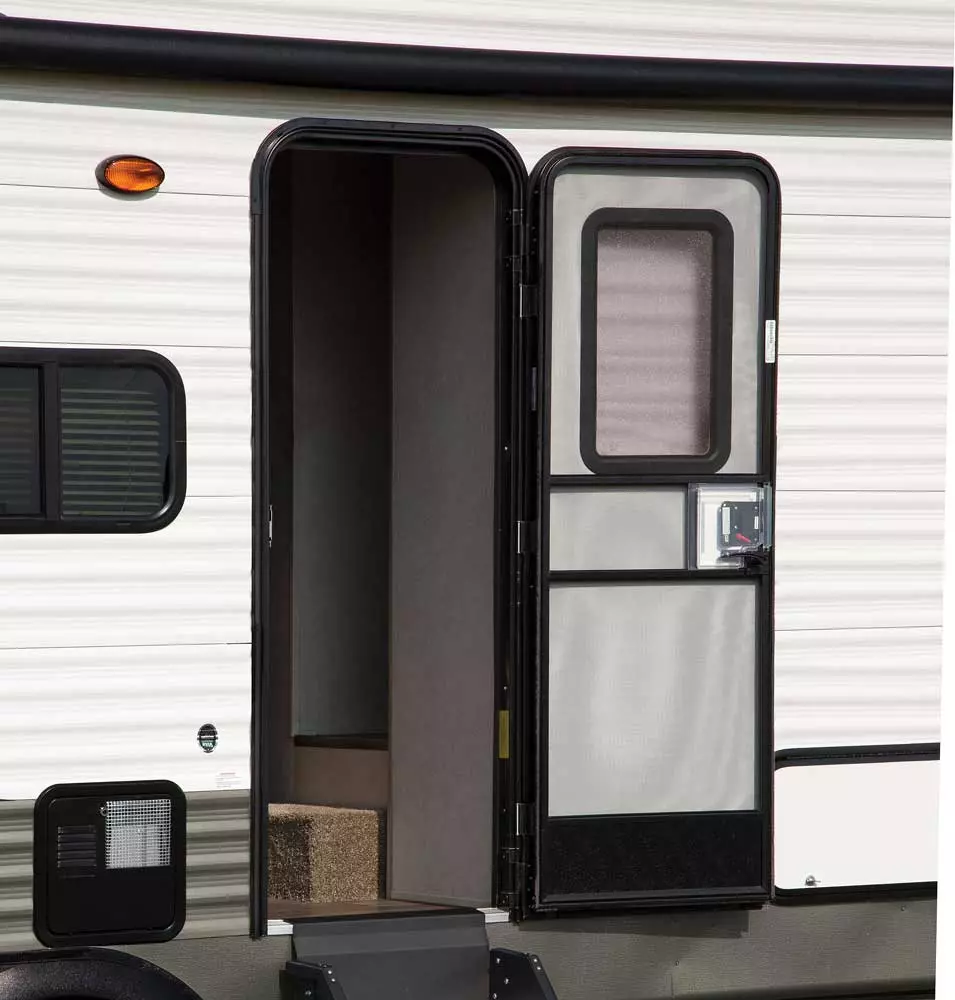

  • Friction Hinged Radius Entry Doors
  • Smooth, Radius Front Metal with Diamond Plate
  • Large Front Frameless Window (Most models)
  • Powder Coated Frames

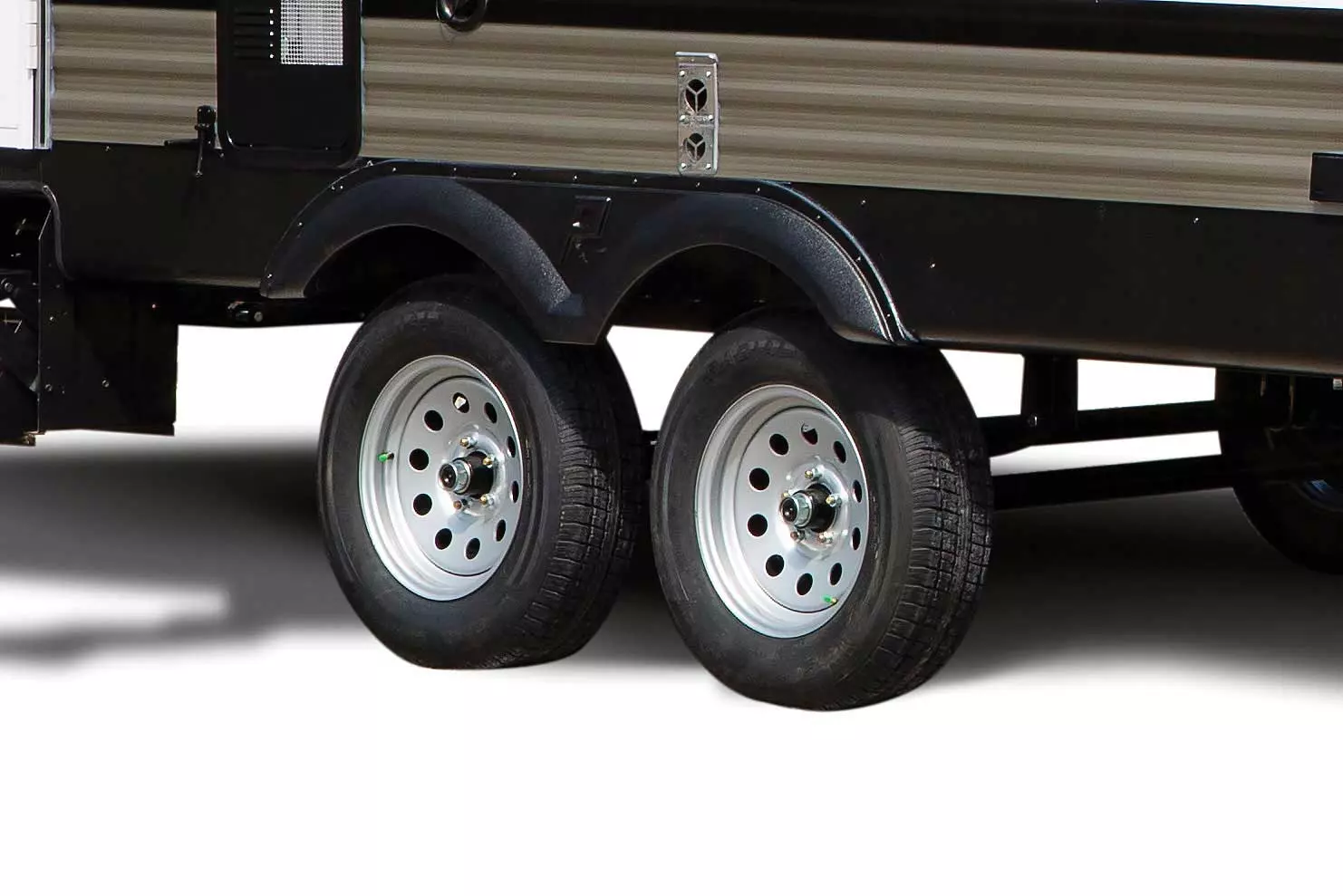

  • Super Lube Axles
  • Tinted Safety Glass
  • Clamp Ring Windows
  • Pass-Thru Storage (Where applicable)
  • AlphaPly Roofing Membrane w/Limited Lifetime Warranty
  • Rain Gutters with Large Drop Spouts
  • ABS Automotive Style Fender Skirts
  • Radius Baggage Doors
  • Clamp Ring Luggage Doors
  • Darco Wrapped Underbelly
  • 5/8" Araucoply Plywood Floor Decking (25 Year manufacturer’s limited warranty)
  • 2" x 3" Flush Floor Joists on 12" Centers
  • 2-20 Lb. Gas Bottles
  • Rack & Pinion Electric Slide System with Manual Override (Large models)
  • Schwintek Slide System with Manual Override (Small models)

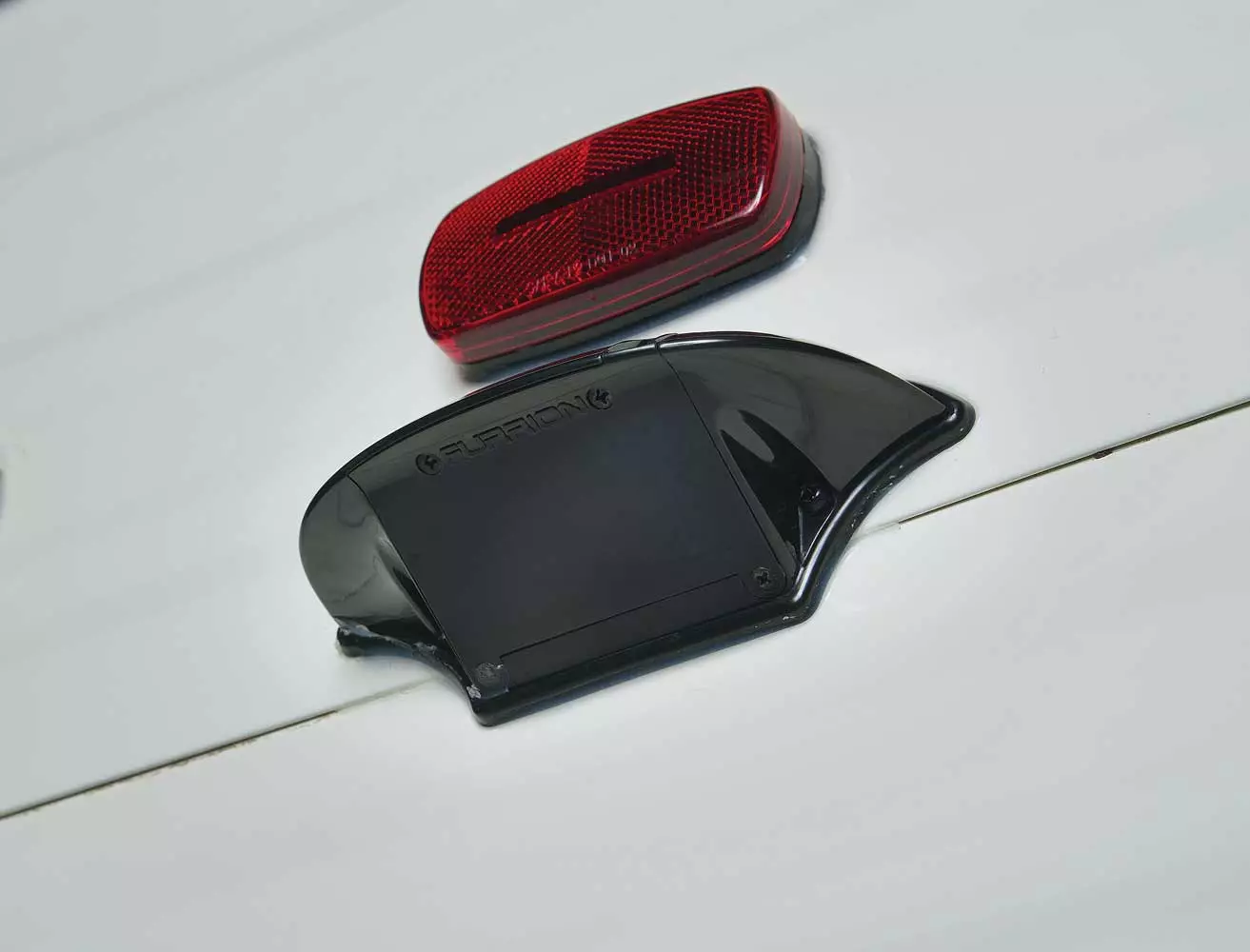

  • Back-up Camera Prep

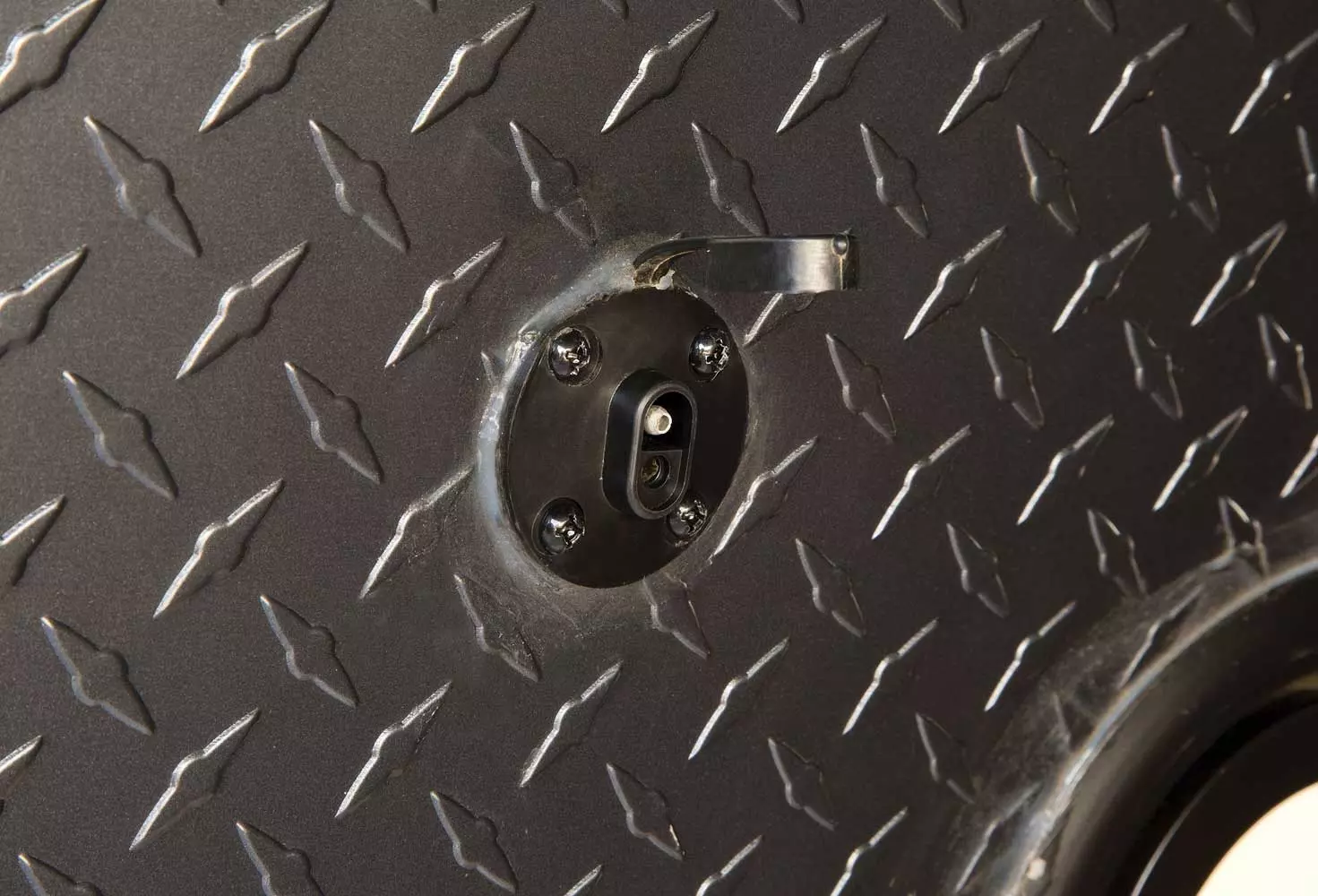

  • Solar Prep
  • 80" Interior Height (Large models)
  • 78" Interior Height (Small models)

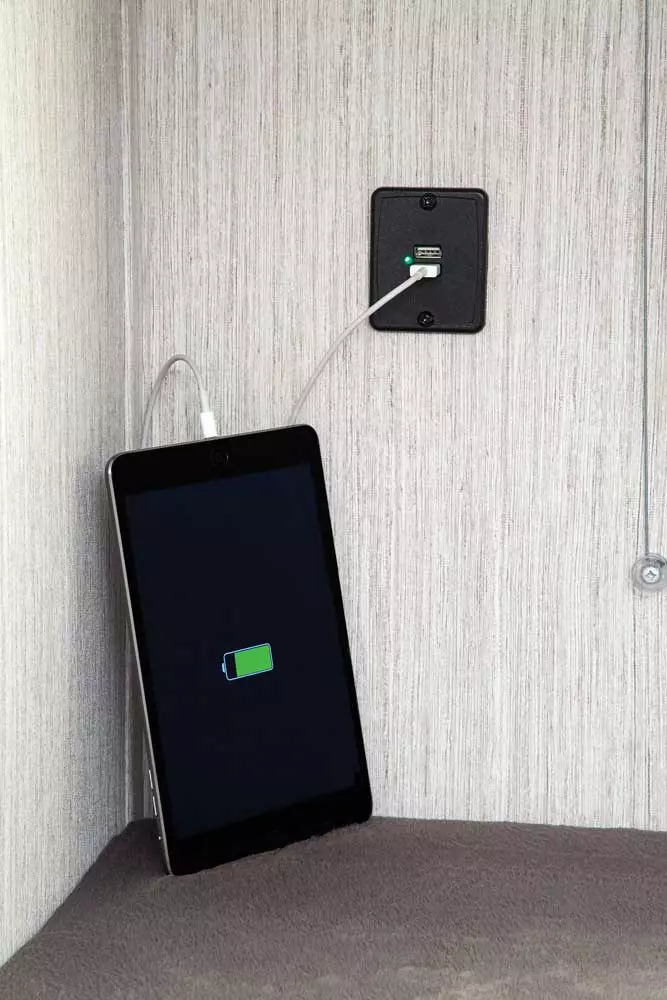

  • USB Charging Ports
  • Floor Ducted Heat (Most models)

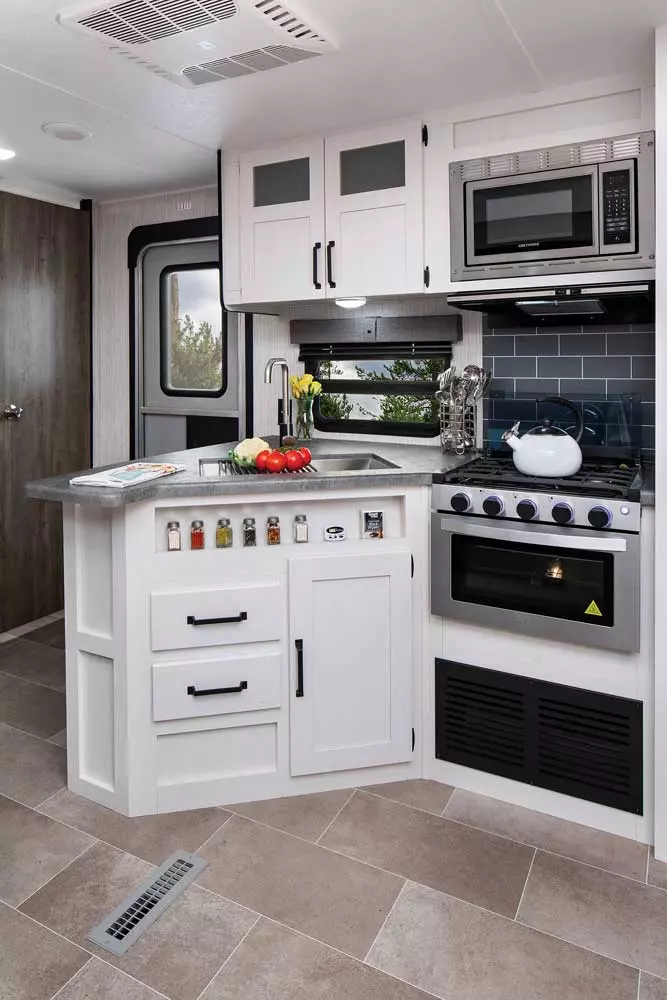

  • Decorative Kitchen Backsplash
  • Spice Rack (Kitchen)
  • Divided Silverware Drawer
  • Nickel Finish, Single Control Gooseneck Kitchen Faucet
  • Undermount Stainless Steel Sink
  • Glass Range Cover
  • Built-in Knife Rack

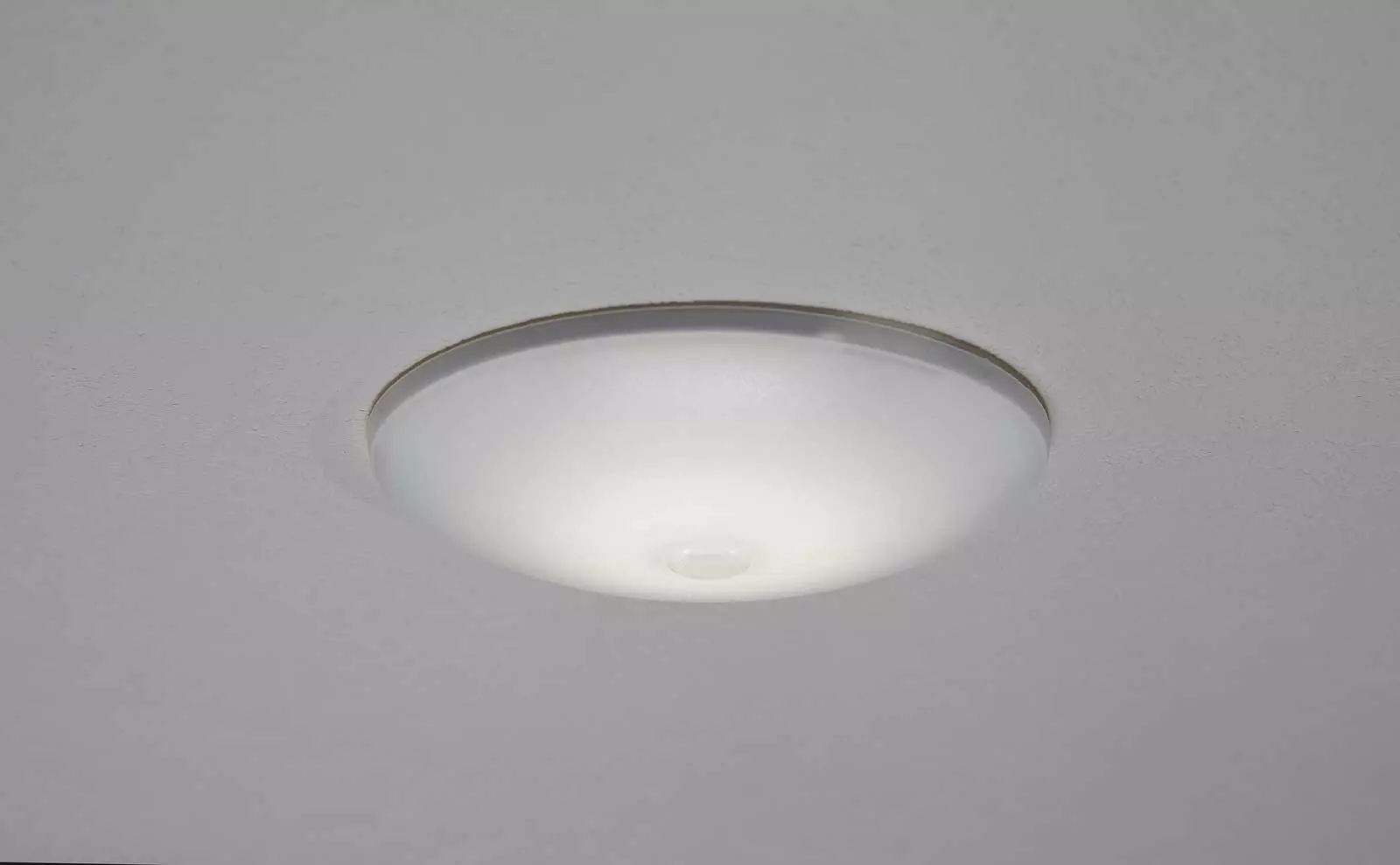

  • LED Ceiling Lights
  • 55 Amp Converter with Battery Charger

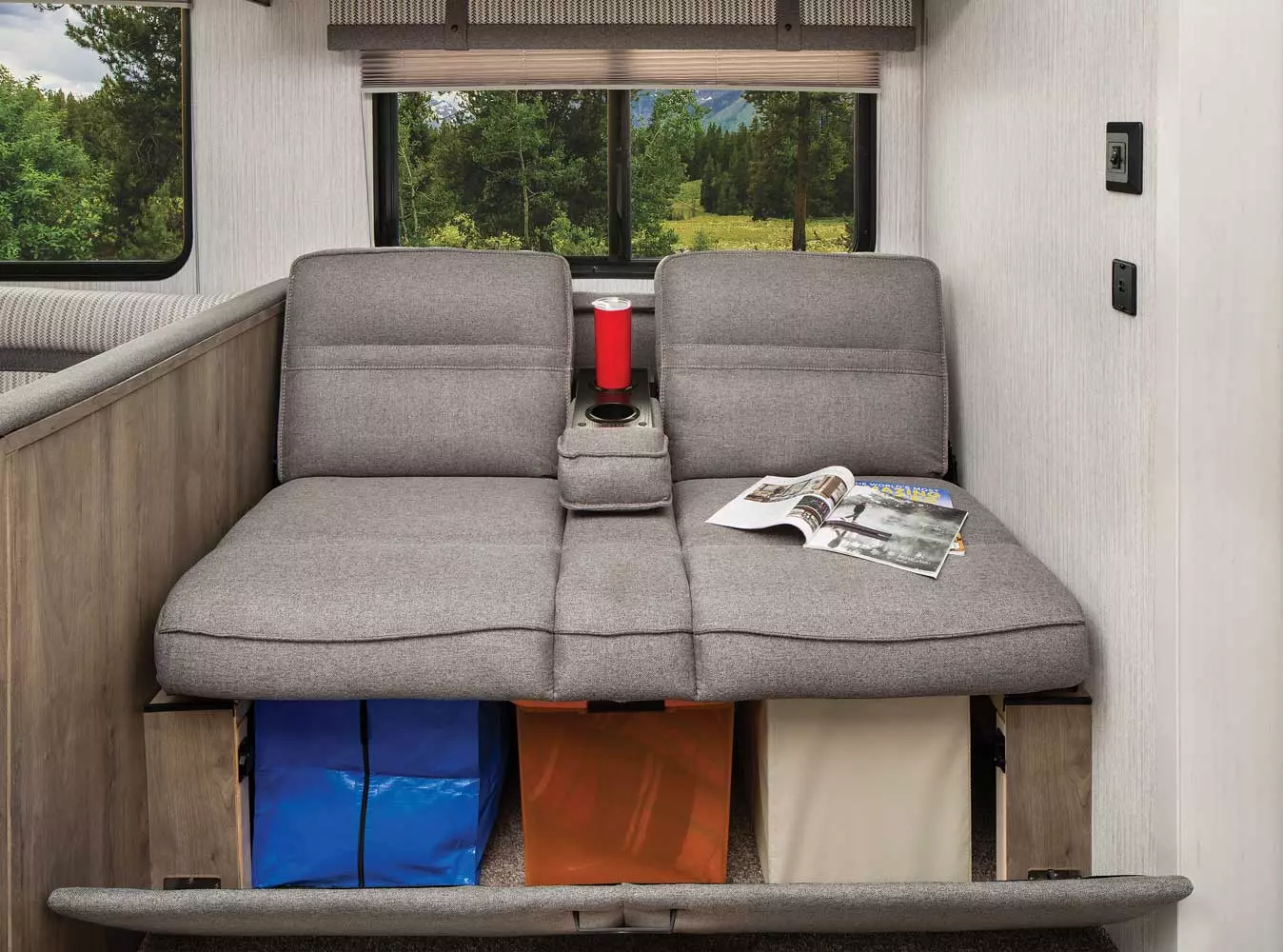

  • Jack Knife Sofa with Pull-down Center Drink Tray – Storage Underneath (Most models)
  • Wood Medicine Cabinet with Mirrored Door
  • Power Vent in Bath
  • Glass Shower Door (select models)
  • 12V Shower LED Light

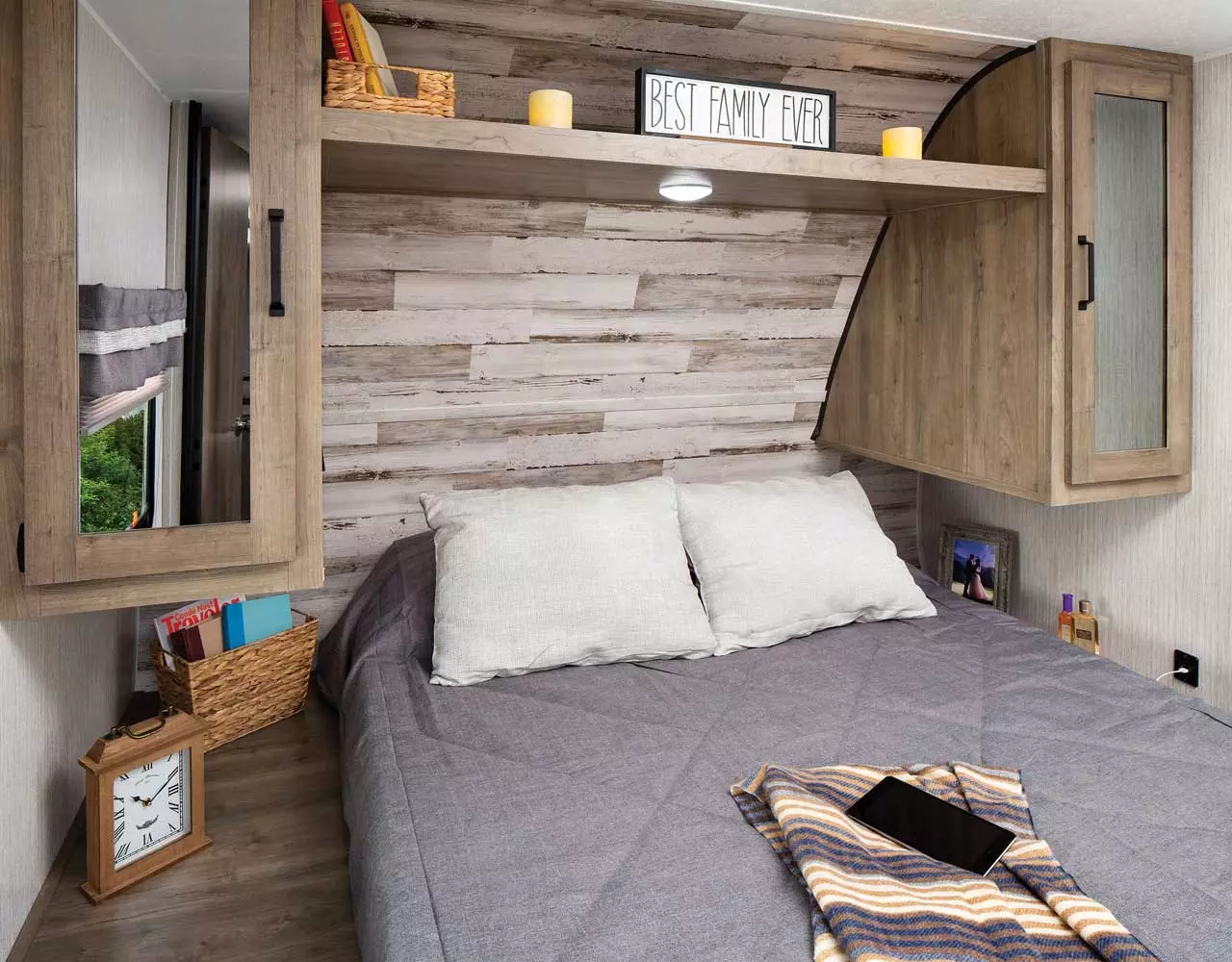

  • 60” x 74” Queen Beds
  • Upgraded Soft Teddy Bear Bunk Mats
  • Shirt Closet in Front Bedrooms
  • Two Interior Decors
  • Satin Nickel Hardware, Light & Bath Fixtures

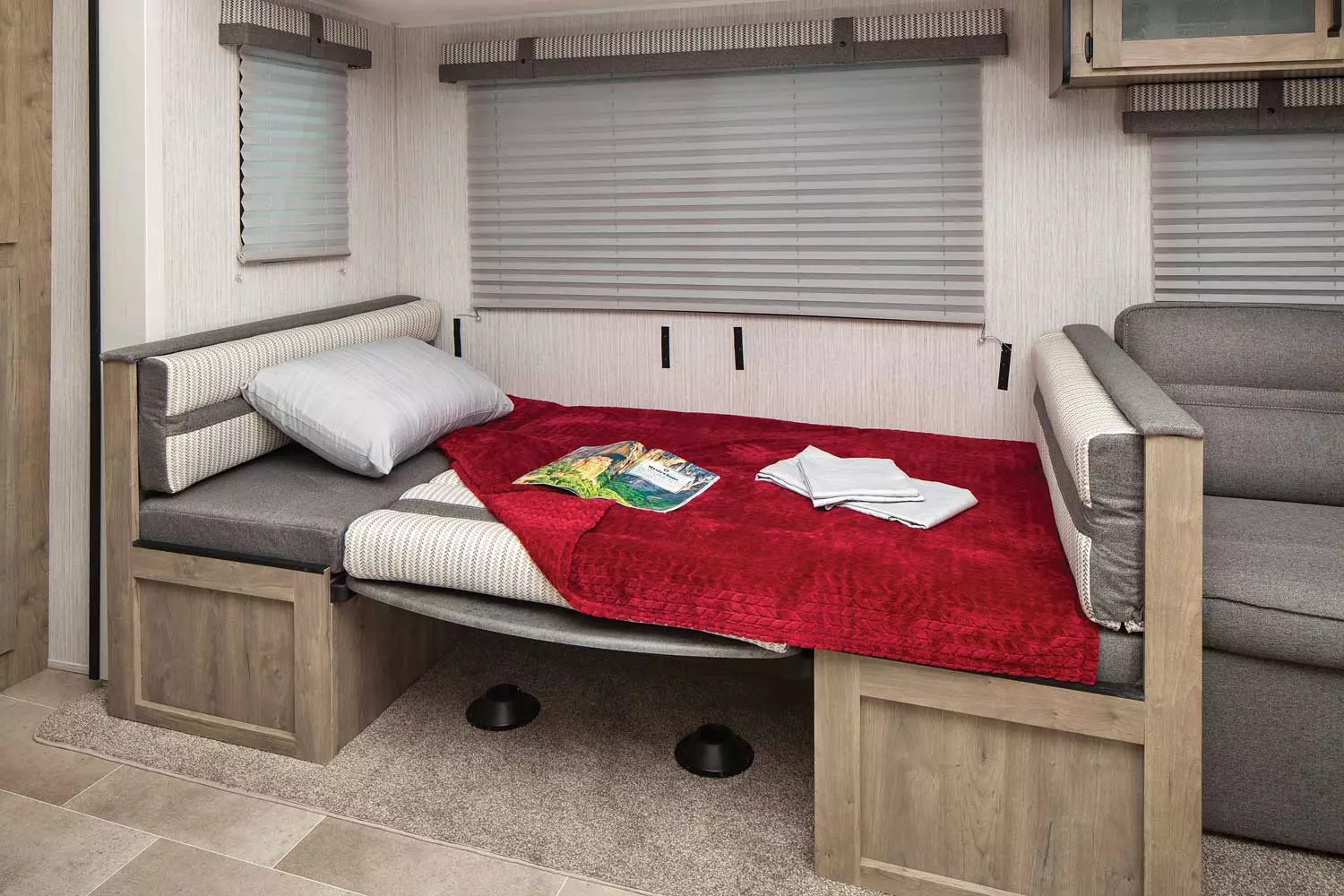

  • Square Dinette Seat Bases with Storage
  • Residential Carpet with Pad
  • Designer Window Treatments (Living room)
  • Carbon Monoxide Detector
  • LP Leak Detector
  • Fire Extinguisher
  • Smoke Detector
  • Tub Surround
  • Bedspread with Pillows

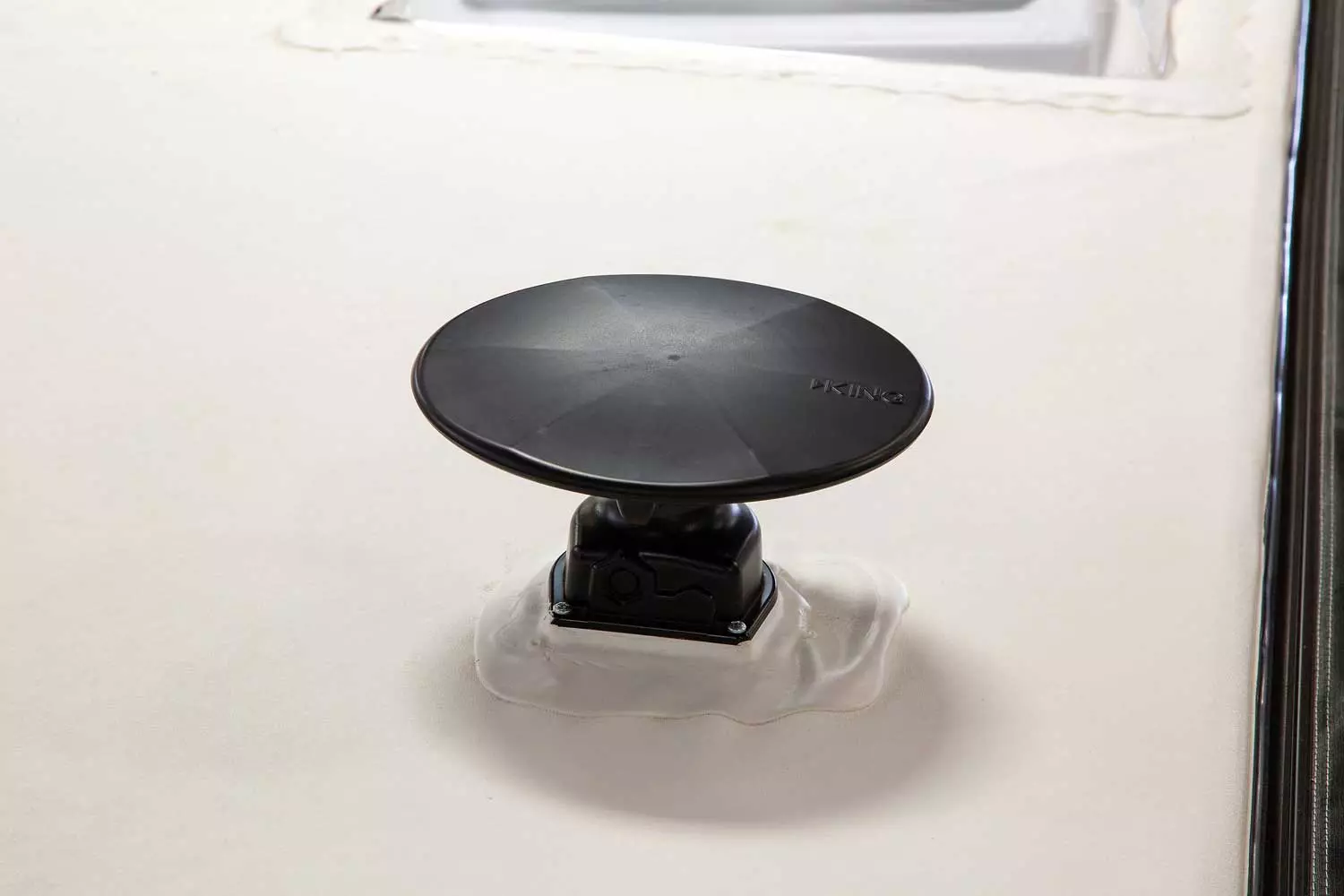

  • TV Antenna with Cable Hook-up
  • Tinted Windows
  • Super Lube Axles
  • Front & Rear Stabilizer Jacks
  • Beauflor Linoleum
  • Bath Skylight
  • LED Lighting
  • Bedroom TV Hook-up
  • WiFi Prep
  • Solar Prep
  • Electric Awning

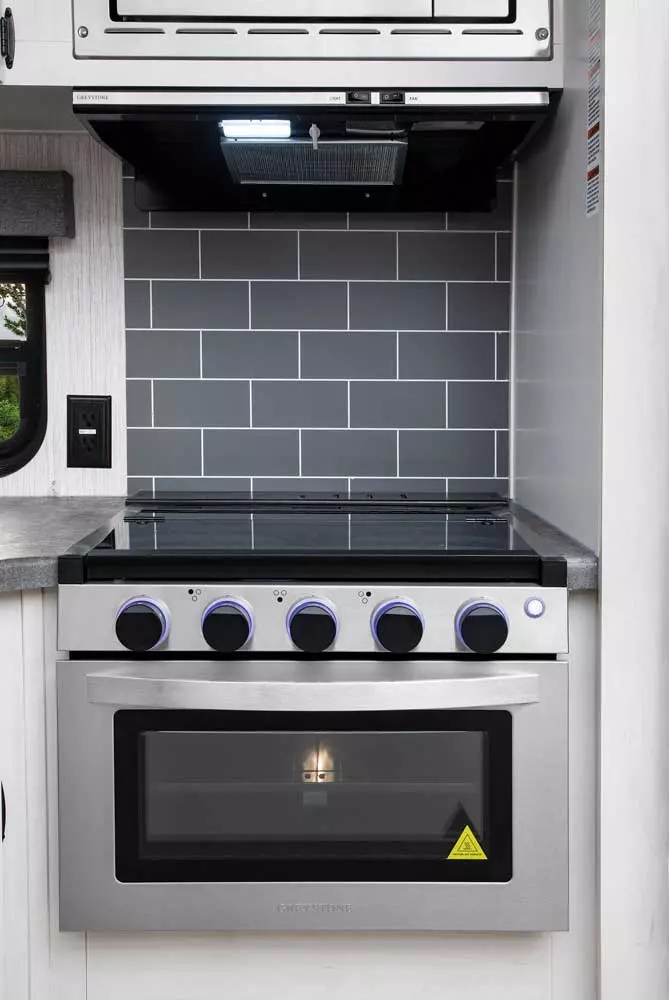

  • Oven & Range Hood
  • Stainless Steel Microwave
  • AM/FM/Bluetooth Stereo
  • 2 Exterior Speakers

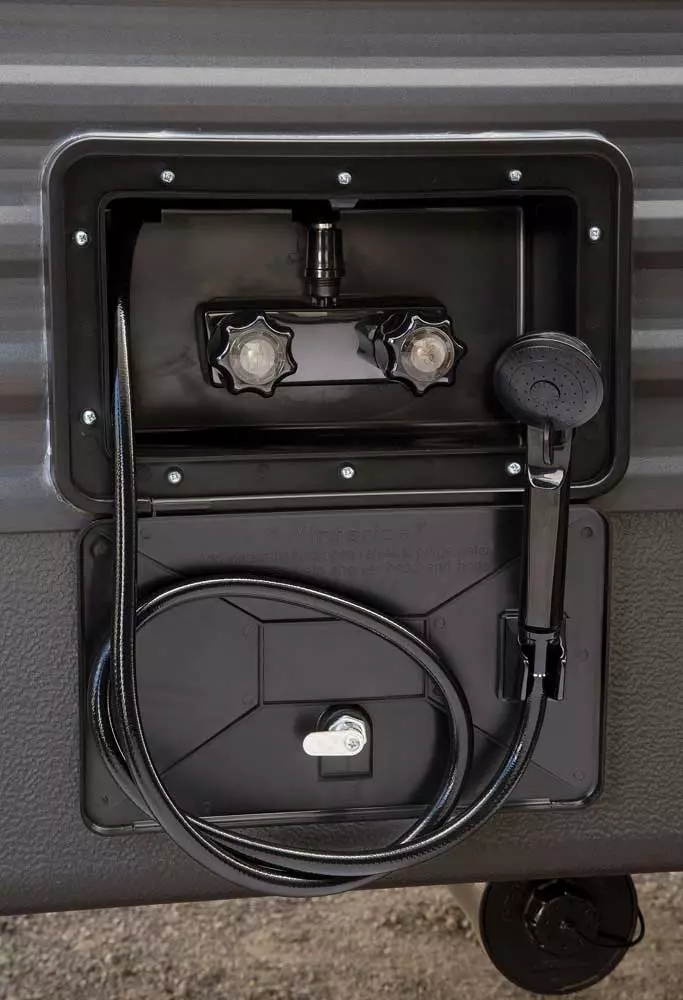

  • Outside Shower
  • Spare Tire
  • Front Diamond Plate
  • 13,500 BTU Ducted A/C
  • 6 Gal. Gas/Electric Water Heater
  • Night Shades
  • Aluminum Solid Steps

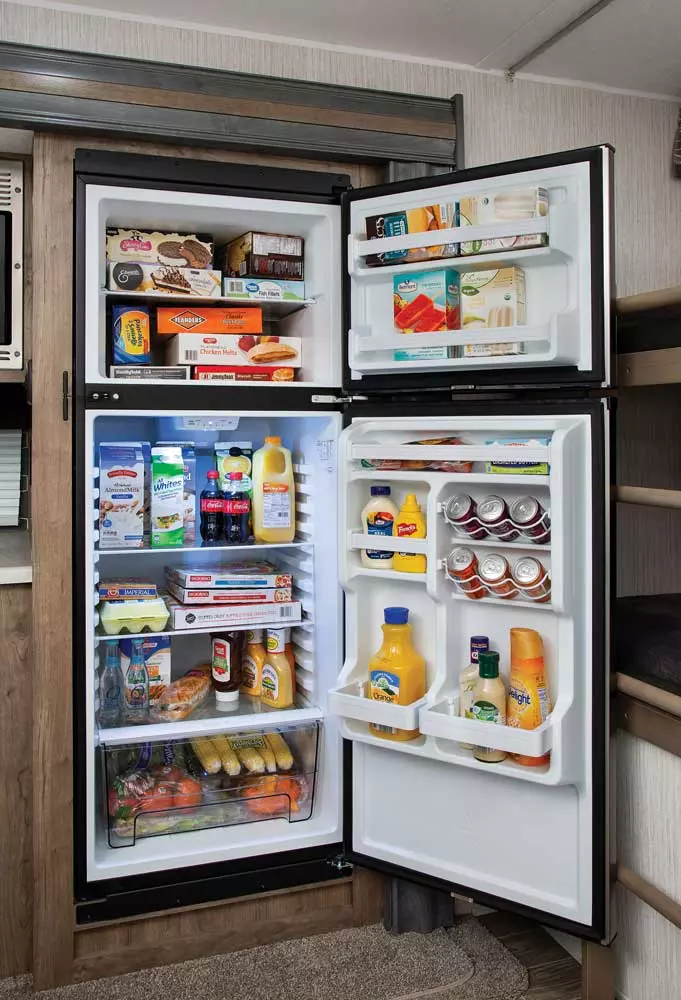

  • 11 Cu. Ft. Residential Refrigerator

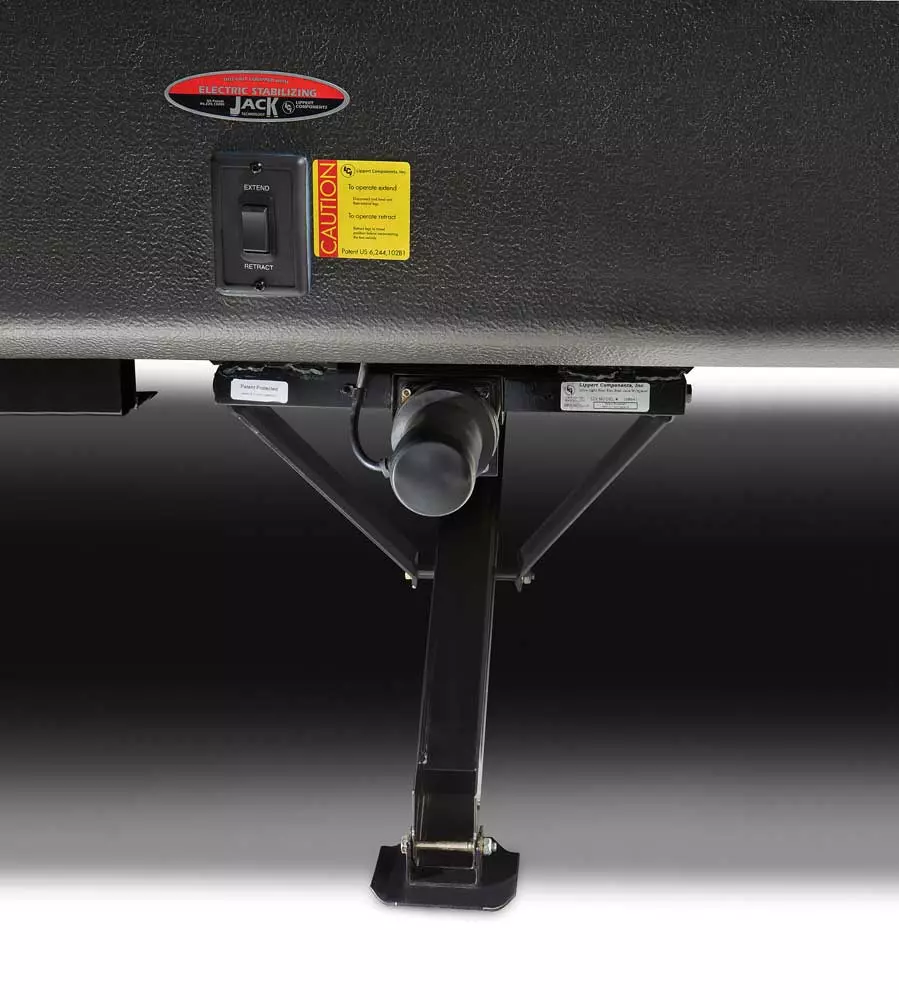

  • 4 Electric Stabilizer Jacks

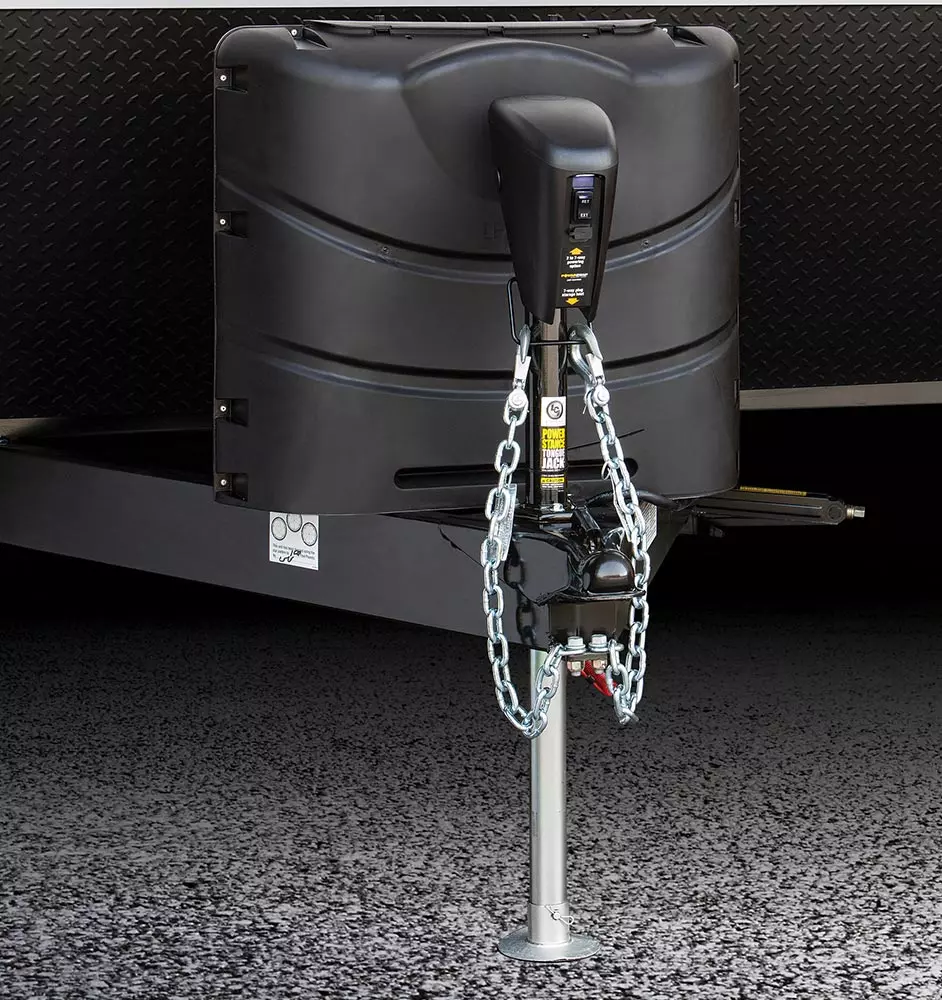

  • 3500 lb Electric Tongue Jack
