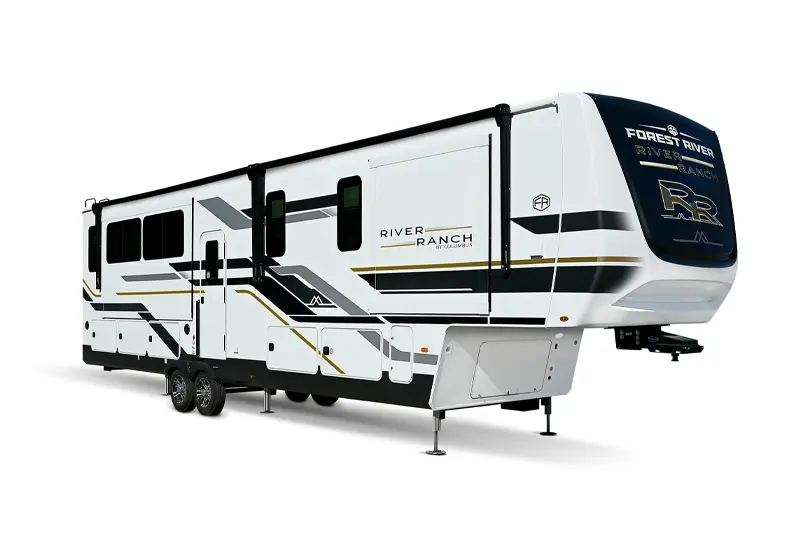

River Ranch Luxury Fifth Wheels

The ability to live ranch style in a luxury fifth wheel has never been done before.. Until now! The one-of-a-kind River Ranch - where practical living, storage, tow ability and lavish style sets a new bar of RV luxury. “Don’t just imagine it, live it.”


RV Business Top 10 2021 RV RV Pro Best New Model 2021 Azdel Onboard™ RV Composite PanelsCare Camps, fighting cancer and making memories

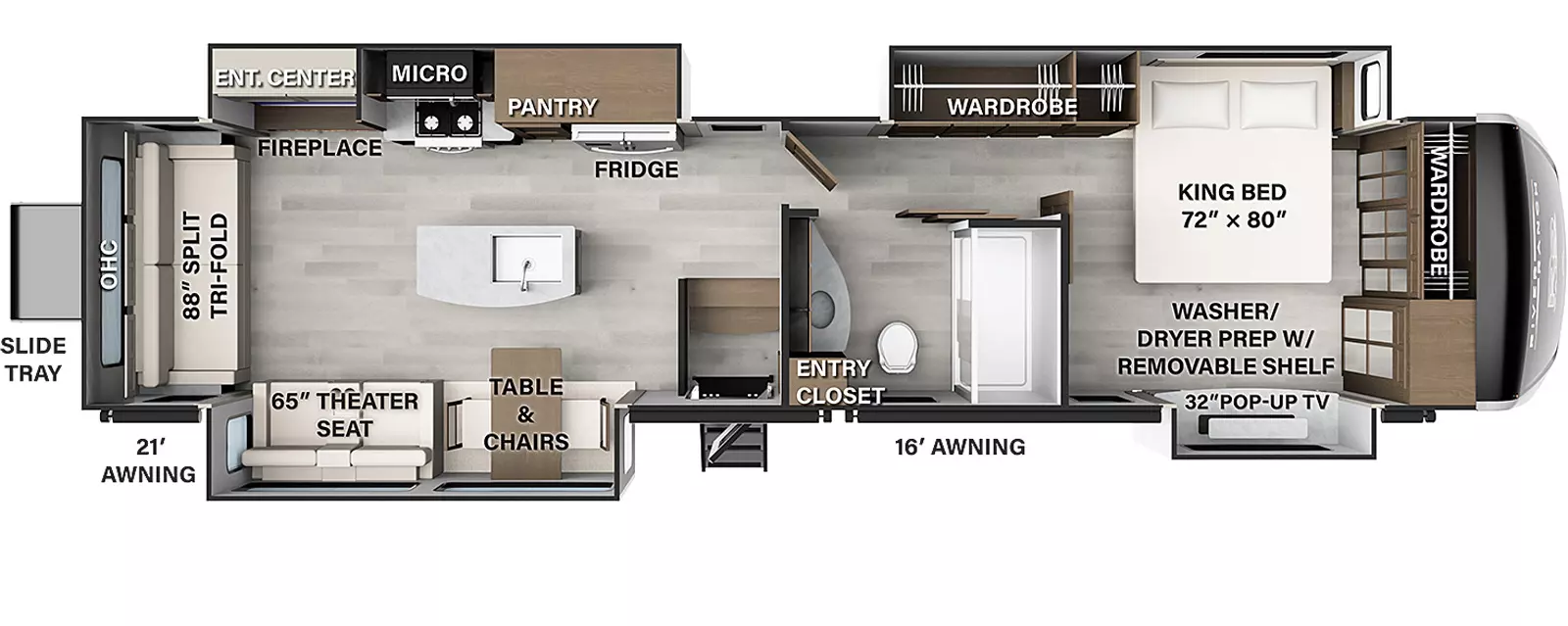

Floorplans

Print

Fifth Wheels


Specifications

Print

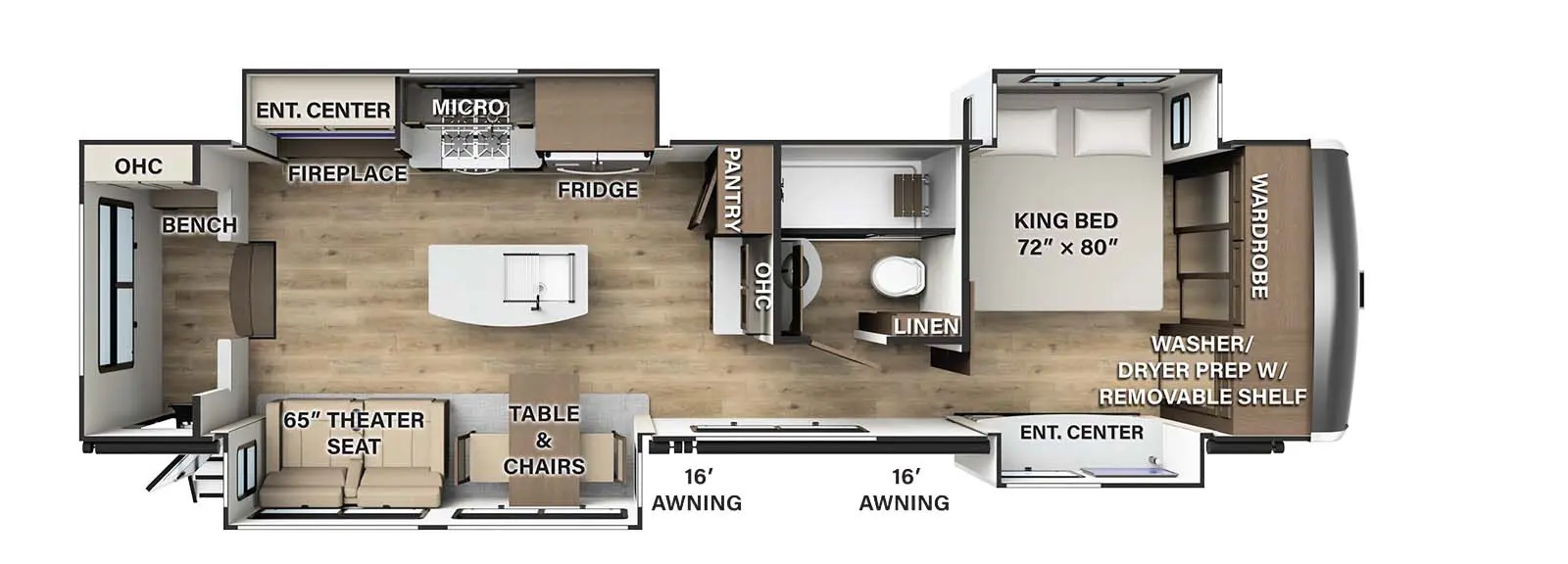

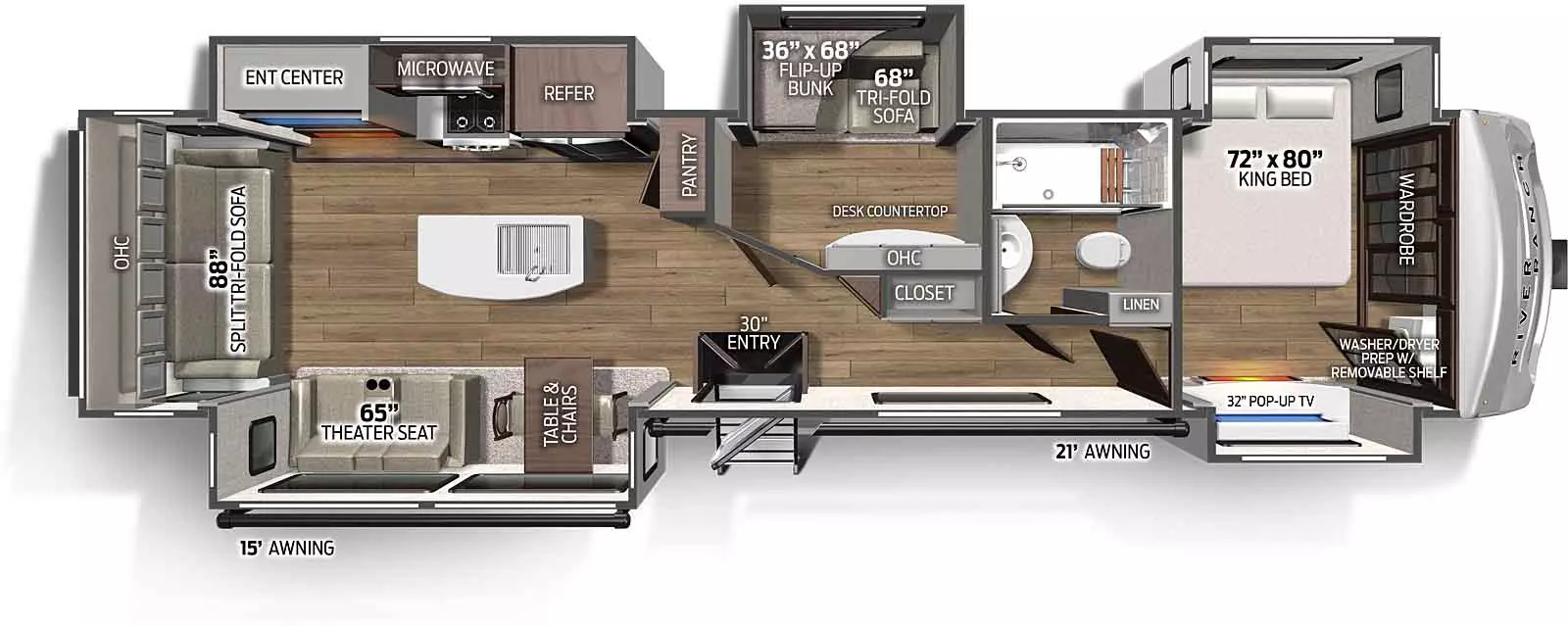

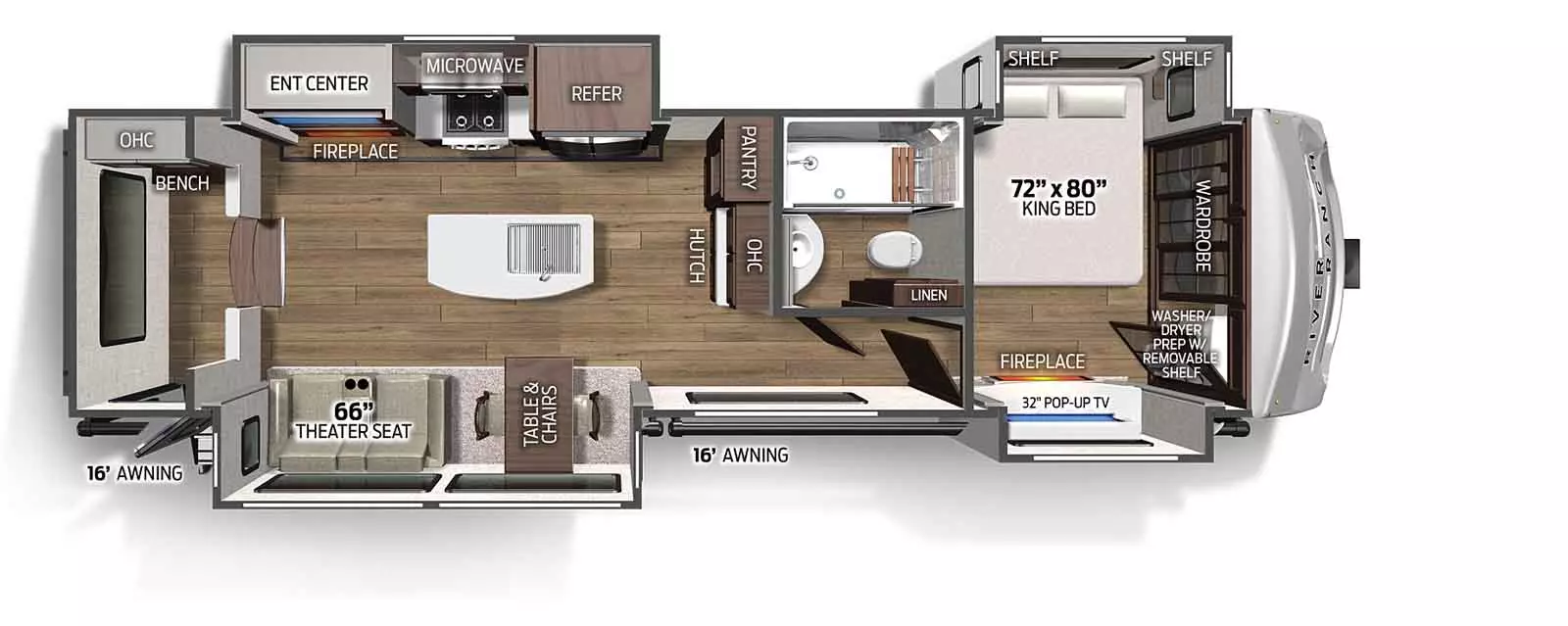

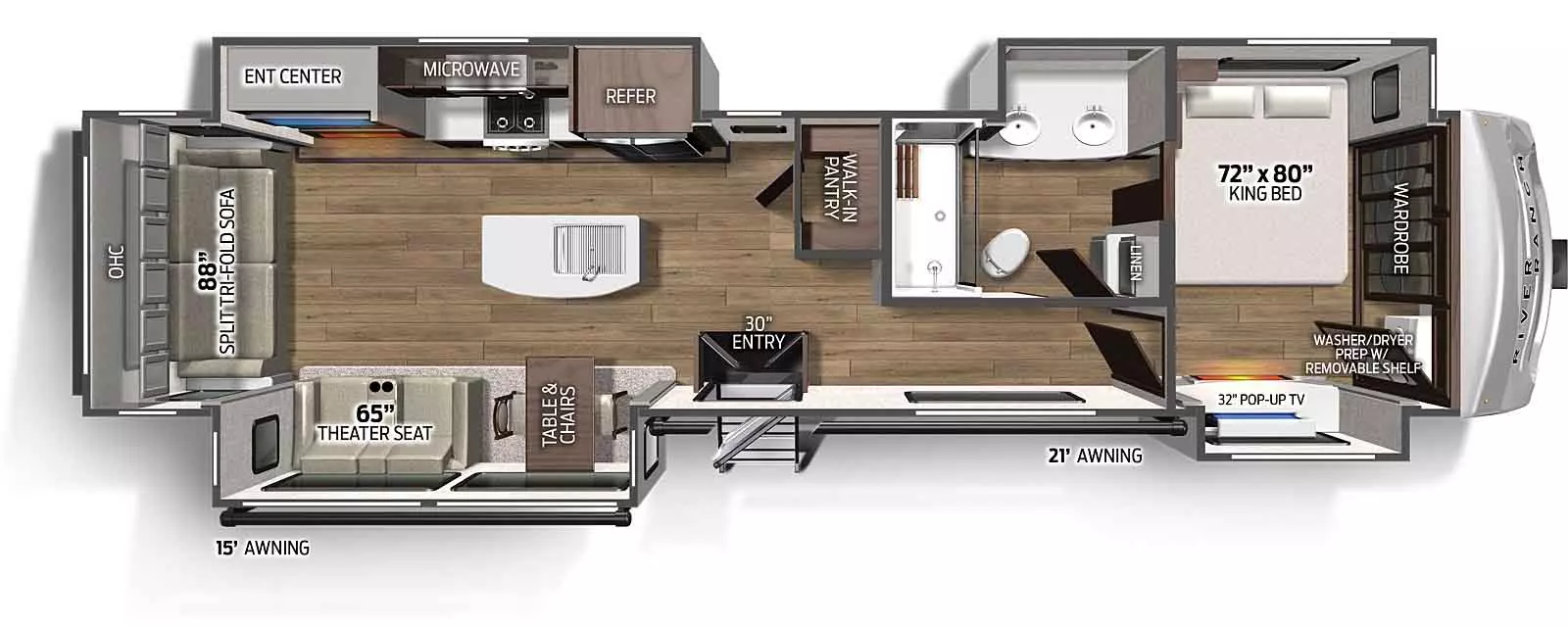

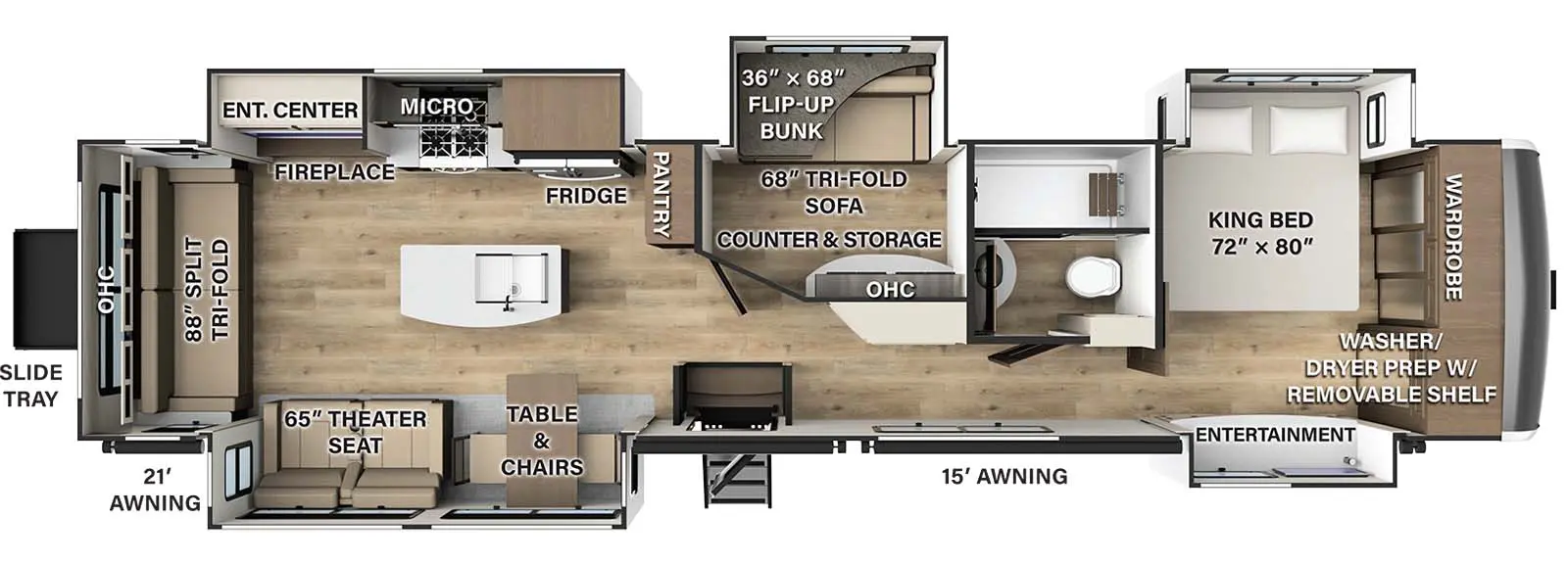

Floorplan: 390RL : Fifth Wheels 391MK : Fifth Wheels 392MB : Fifth Wheels
Hitch Weight:2,295 lb.2,400 lb.2,455 lb.
GVWR:17,999 lb.15,999 lb.17,999 lb.
UVW:13,944 lb.12,739 lb.14,844 lb.
CCC:4,055 lb.3,260 lb.3,155 lb.
Exterior Length:42' 0"36' 7"42' 0"
Exterior Height:13' 6"13' 6"13' 6"
Exterior Width:101"101"101"
Fresh Water:75.00 gal.75.00 gal.75.00 gal.
Gray Water:78.00 gal.78.00 gal.78.00 gal.
Black Water:39.00 gal.39.00 gal.39.00 gal.
Awning Size:21' & 15'16' & 16'21' & 15'

GVWR (Gross Vehicle Weight Rating) – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GAWR (Gross Axle Weight Rating) – is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by a combination of all axles.

UVW (Unloaded Vehicle Weight)* – is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s) and tongue or pin and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity) ** – is the amount of weight available for fresh potable water, cargo, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before filling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Palomino RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Palomino RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.

Note: Specifications are subject to change without notice.

Features & Options

Print
  • 84” Interior Height Throughout
  • 12V Heat Pads On All Holding Tanks
  • Frameless Windows
  • 101” Wide Body
  • All Welded Aluminum Frame Superstructure 3/4” Tongue & Groove Plywood Floor Residential, 5”, Radius, Wood-Truss Roof
  • 6’ Slide Height (Living Room Slides)
  • A/C & Heat Ducts In Out-Of-Traffic Areas Snap-In Ceiling Molding (No Staples Or Tape)
  • R-38 Floor Insulation
  • R-40 Roof Insulation
  • R-11 Sidewall Insulation
  • Vacuum-Bonded Walls With Azdel
  • Worry-Free Composite Floors In
  • Basement & Slide Boxes
  • 16” Wheels With Nitrogen-Filled Tires
  • Two-Tone Painted Front Cap
  • Large Frameless, Tinted Windows Throughout Hidden Hinges
  • Power Theater Seating With USB Charging
  • 88” Split Sleeper Sofa
  • Soft-Close, Reinforced Doors & Drawers With Upgraded Hardware
  • Upgraded Crack/Mold/Mildew-Resistant Flooring Hybrid Marine-Grade Carpet
  • LED Light Fixtures
  • Upgraded True Solid-Surface Countertops in Bathroom & Kitchen
  • Roller Day/Night Shades (Main Areas Only)
  • Solid Wood Entertainment & End Table Top Residential High-End Dining Chairs
  • Slam Latches On All Storage Doors Magnetic Compartment Door Holds
  • Two-Tone Aluminum Wheels
  • Grey Wheel Well Skirting
  • Painted Fiberglass Front Cap
  • Two Exterior Color Choices With Grey Metal Skirting (White, Full-Body Paint)
  • Heated Utility Convenience Center
  • Black Tank Flush
  • JBL Outside Speakers
  • Outside Shower
  • Two 30 Lb. LP Tanks (EZ Replacement)
  • 36” Entry Door With Window
  • Battery Quick-Disconnect
  • Power Awnings With LED Lighting (21’ & 15’) 8,000 Lb. Axles
  • Crank-Down Spare Tire
  • Storage Rack In Front Compartment
  • TST Tire Pressure Monitoring System
  • Residential Under-Counter Storage Additional Lighting Above Dinette Areas
  • Trash Can With Dedicated Storage
  • Deep, Residential, Single-Bowl Stainless Steel Sink With Accessories Kit
  • Single-Lever Faucet With Pull-Out Sprayer
  • Full Pantry
  • 5,000 BTU Fireplace
  • Cabinet-Mounted, Auto-Retract TV
  • Solid-Surface Dresser Top

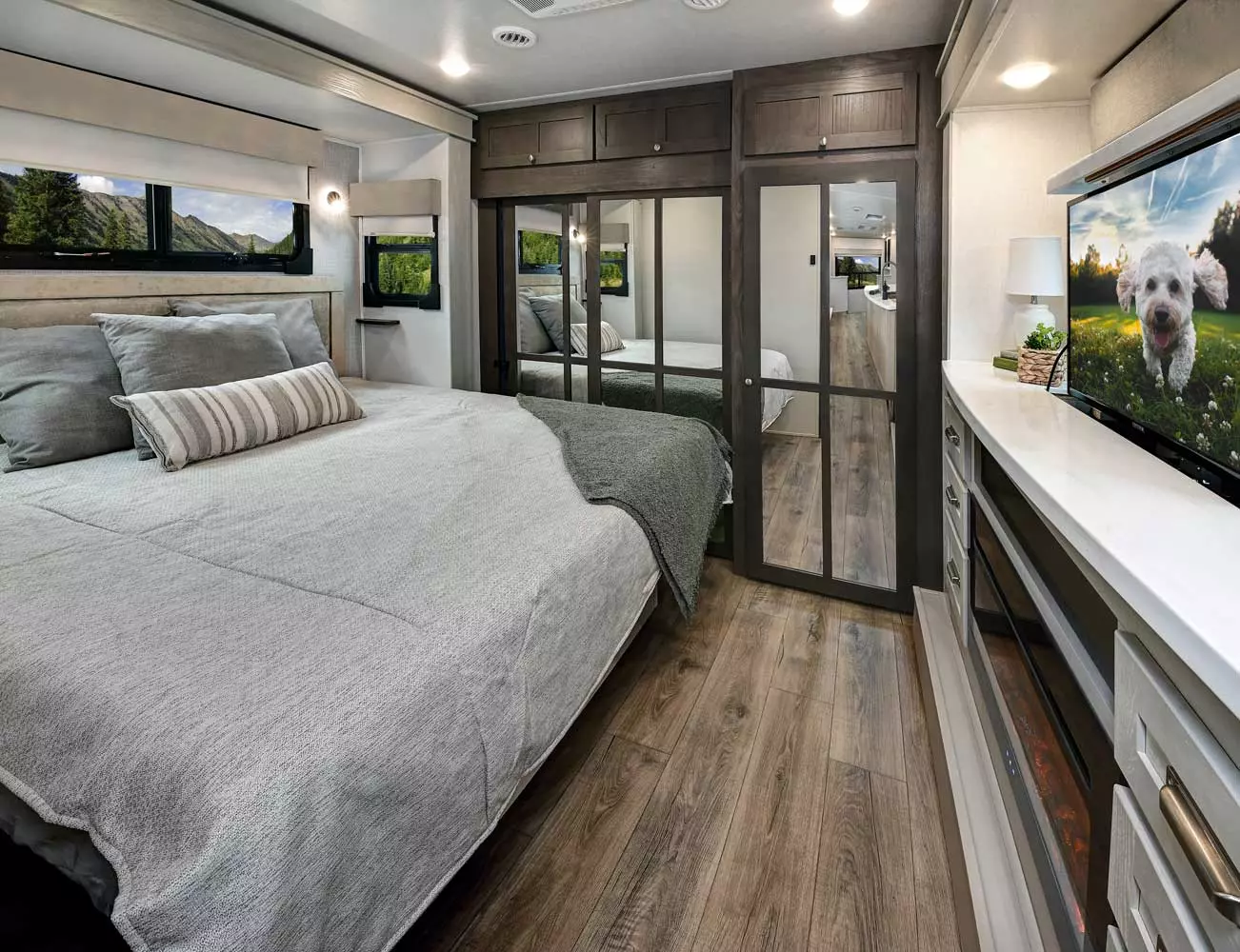

  • Pillow Top, King Size Mattress
  • French Mirrored Sliding Closet Doors
  • High-End Bedspread & Pillows
  • Reading Lights With USB Charging Ports

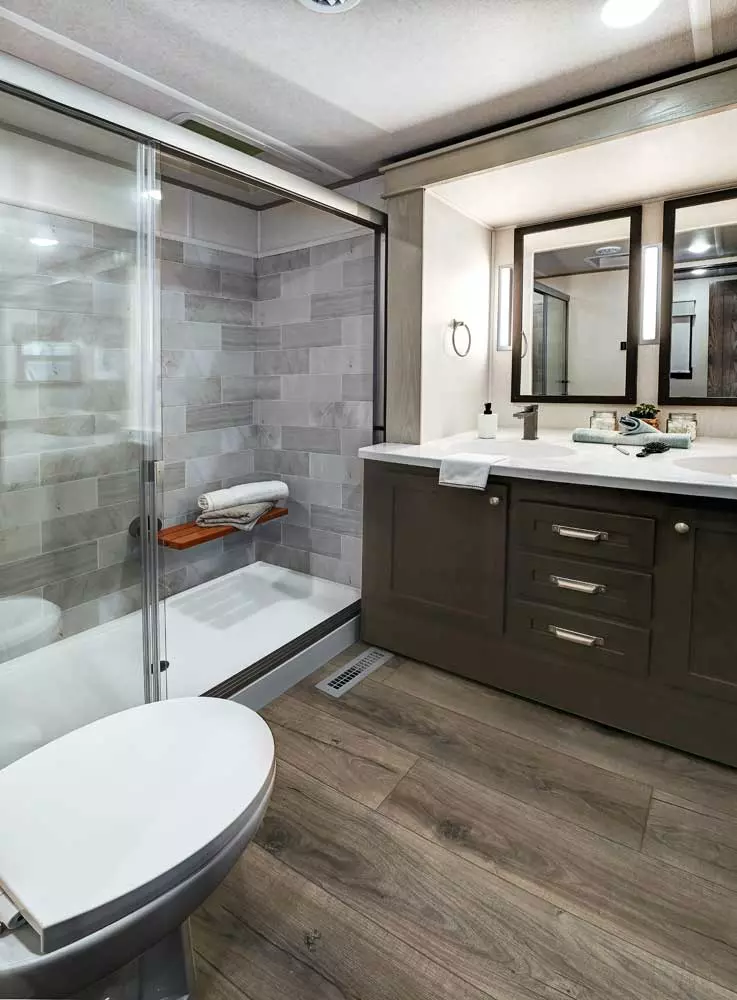

  • 60” x 30” One-Piece Signature Spa Walk-In Shower With Teak Wood Seat
  • Solid-Surface Counter Top
  • Three-Speed Power Vent
  • Porcelain Toilet
  • Towel Rack Built Into Door
  • Undermount Sink With Waterfall Faucet
  • 24” Insignia Range
  • 12 Gallon Water Heater
  • Insignia Four-Burner Gas Cooktop
  • 30” Residential Microwave

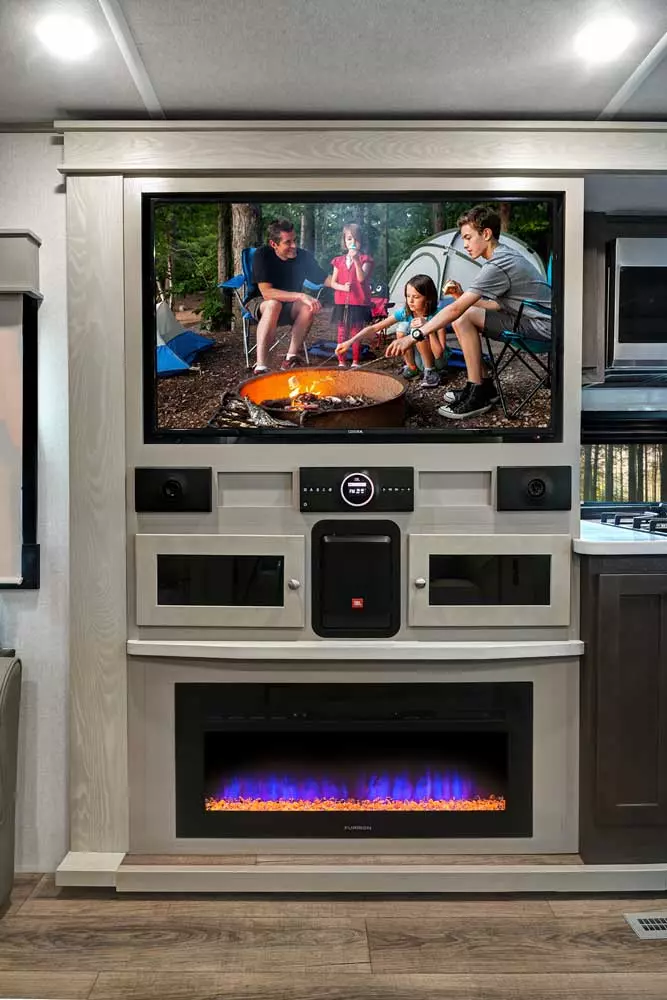

  • 50” LED TV With Sound Bar & JBL Sound System

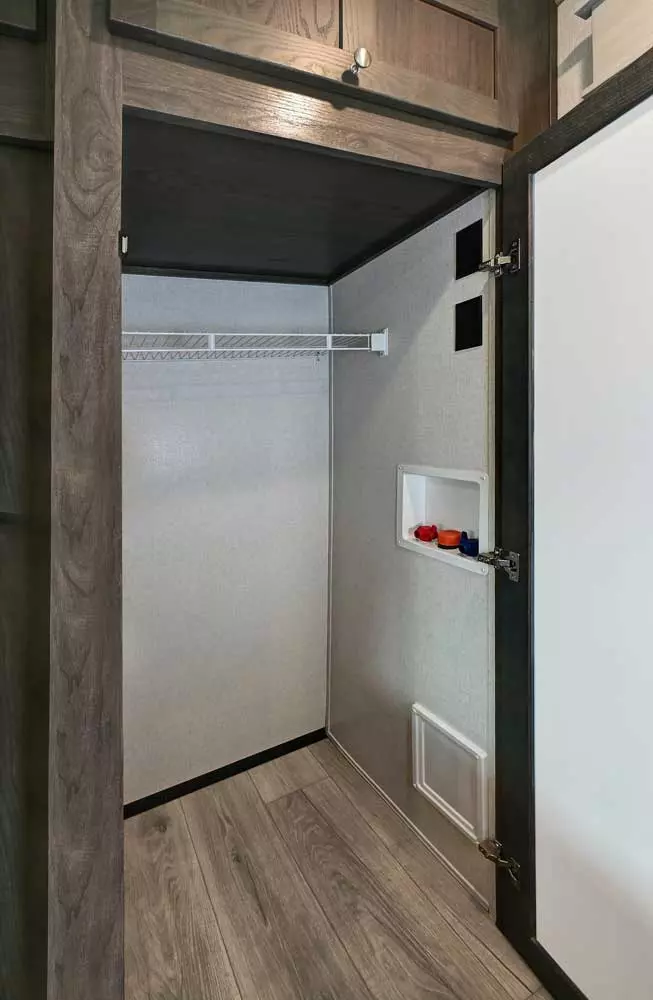

  • Washer/Dryer Prep
  • (3) Low Profile Coleman Mach 8 13,500 BTU A/C’s with energy management system
  • 35,000 BTU Furnace
  • 23 Cu. Ft. Residential Refrigerator With Ice Maker, Inverter & WiFi
  • Goodyear H-Rated Tires With Upgraded Rims
  • 18 Cu. Ft. Gas/Electric Refrigerator
  • Dual-Pane Windows
  • Stackable Washer/Dryer Installed
  • Generator Prep (N/A With Generator Install Option)
  • Full-Body Paint, Moon Grey (Required With Paint Exterior Option)
  • Slide Toppers
  • 200W Solar Panels With Batteries
  • Six-Point Hydraulic Leveling System 8000 Lb. Axles
  • Two-Tone Aluminum Wheels
  • G-Rated Tires With G-Rated Spare
  • Trail Air Flex Air Upgraded Pinbox
  • 12 Gal. Water Heater
  • (3) Low Profile Coleman Mach 8 13,500 BTU A/C’s with energy management system
  • Power Cord Storage Reel
  • 2” Hitch Receiver
  • Tire Pressure Monitoring System Frameless Windows
  • Battery Disconnect
  • 12V Heat Pads On Tanks
  • LED Awning Lights
  • MORryde LRE4000 Suspension
  • Syphon 360 Vent Covers
  • 36” Friction-Hinge Entry Door
  • WiFi Booster With 4G LTE Capability Ladder
  • LP Quick Connect
  • Back Up Camera Prep
  • Slide Topper Prep
  • Go Power Solar Prep
  • Metal Wrapped Awning
  • Composite Basement And Slide Box Floors High-Gloss Fiberglass With Azdel
  • Two Tone Painted Front Cap
  • Touch-Screen Control Operating System
  • JBL Sound System
  • Wall-Mounted Free-Standing Dinette Table With Extension
  • Two Residential Dinette Chairs
  • Pop-Up Recepts
  • 50” LED TV
  • 32” Bedroom TV
  • 60” x 30” Signature Spa Walk-In Shower With Teak Wood Seat
  • MCD Day/Night Roller Shades
  • Memory Foam Mattress
  • Hybrid Carpet
  • Aluminum Bed Base With King Bed
  • Power Theater Seating With USB Charging
  • 50/50 Split Sleeper Sofa
  • Upgraded Residential Hardware With Two-Tone Cabinets & Soft Close Doors/Drawers
  • Deep-Bowl Stainless Steel Kitchen Sink
  • Stainless Steel Residential Appliance Package
  • Washer/Dryer Prep
  • Porcelain Toilet
  • Large Kitchen Pantry (Select Models)
  • Electric Fireplace In Living Room & Bedroom
  • Kitchen Maxx Air Vent With Rain Hood
  • Undermount Bath Sink With Solid-Surface Countertop
  • Two Folding Chairs
  • Wood-Look Linoleum
