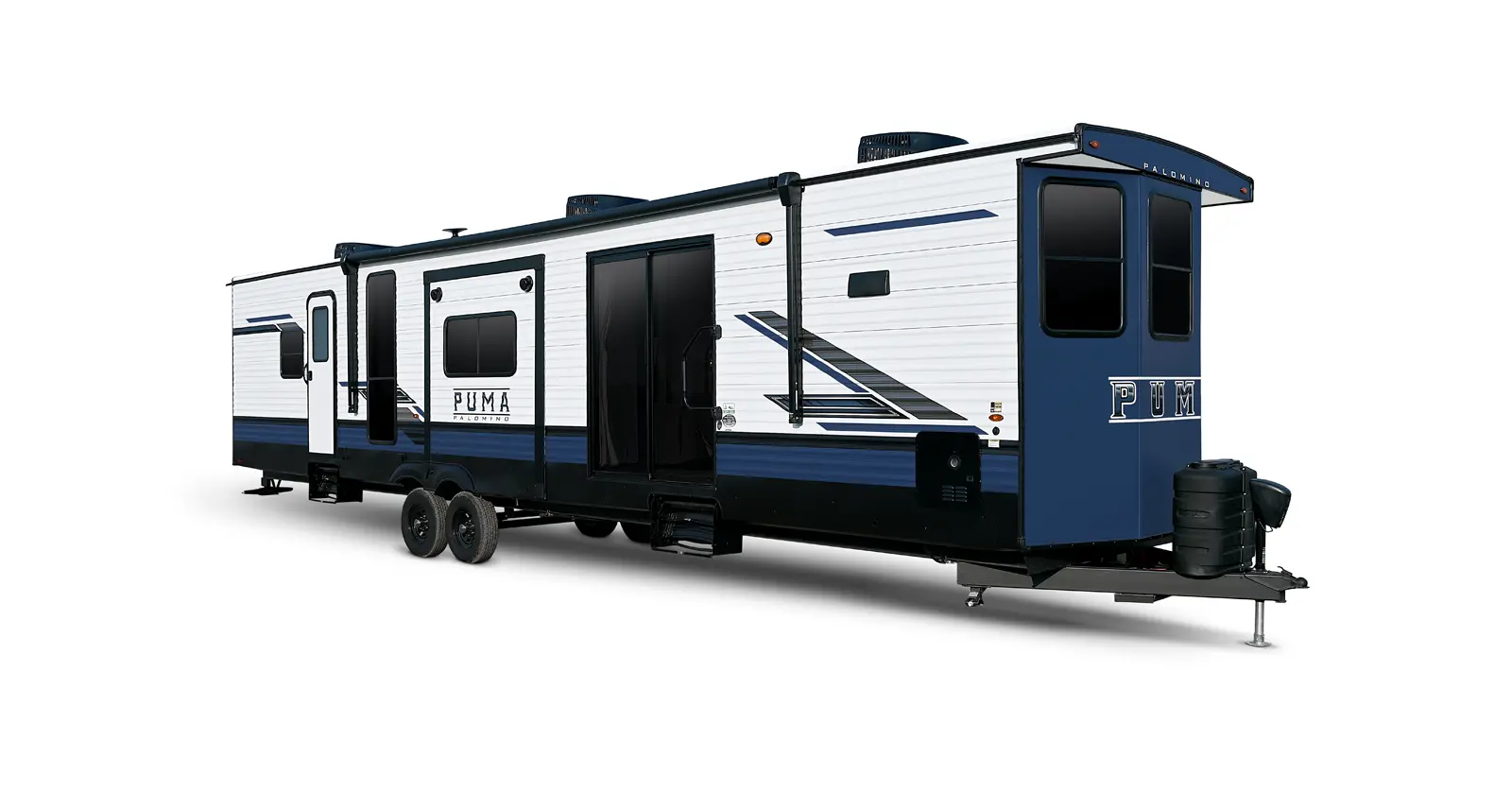

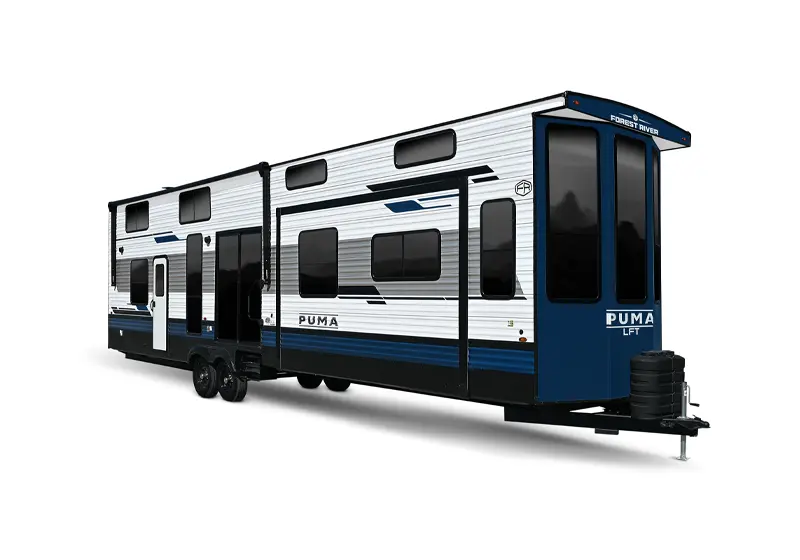

Puma Destination Trailers

Enjoy vacation comfort in your Puma Destination Model whether for a weekend or a week at the lake, in the mountains, or at your favorite campsite. The best in leisure living with several floorplans; two bedroom options, and a den option to accommodate whatever your family needs are. Residential style furnishings and a large master bedroom with a king size bed to ensure a comfortable and relaxing getaway.

Care Camps, fighting cancer and making memories

Floorplans

Print

Destination Trailers


Specifications

Print

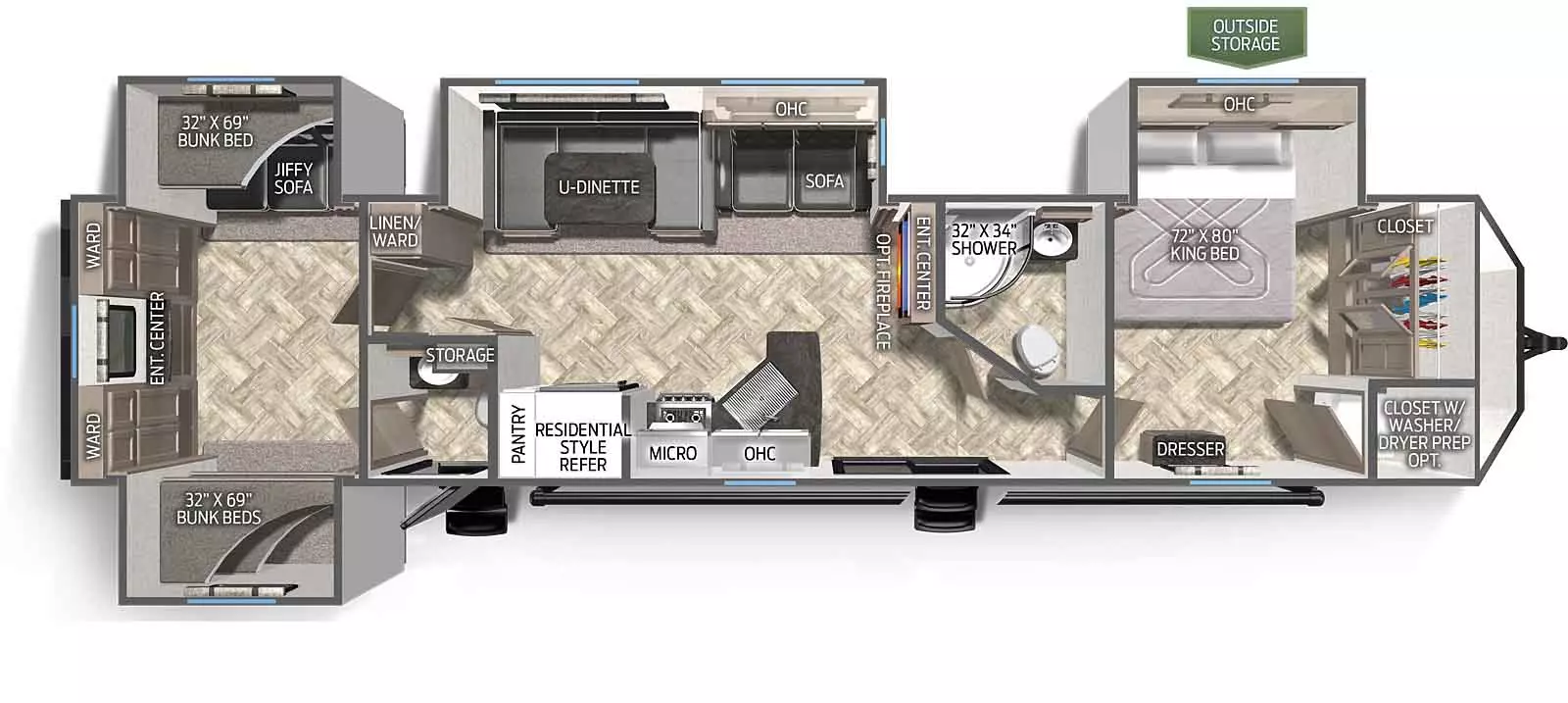

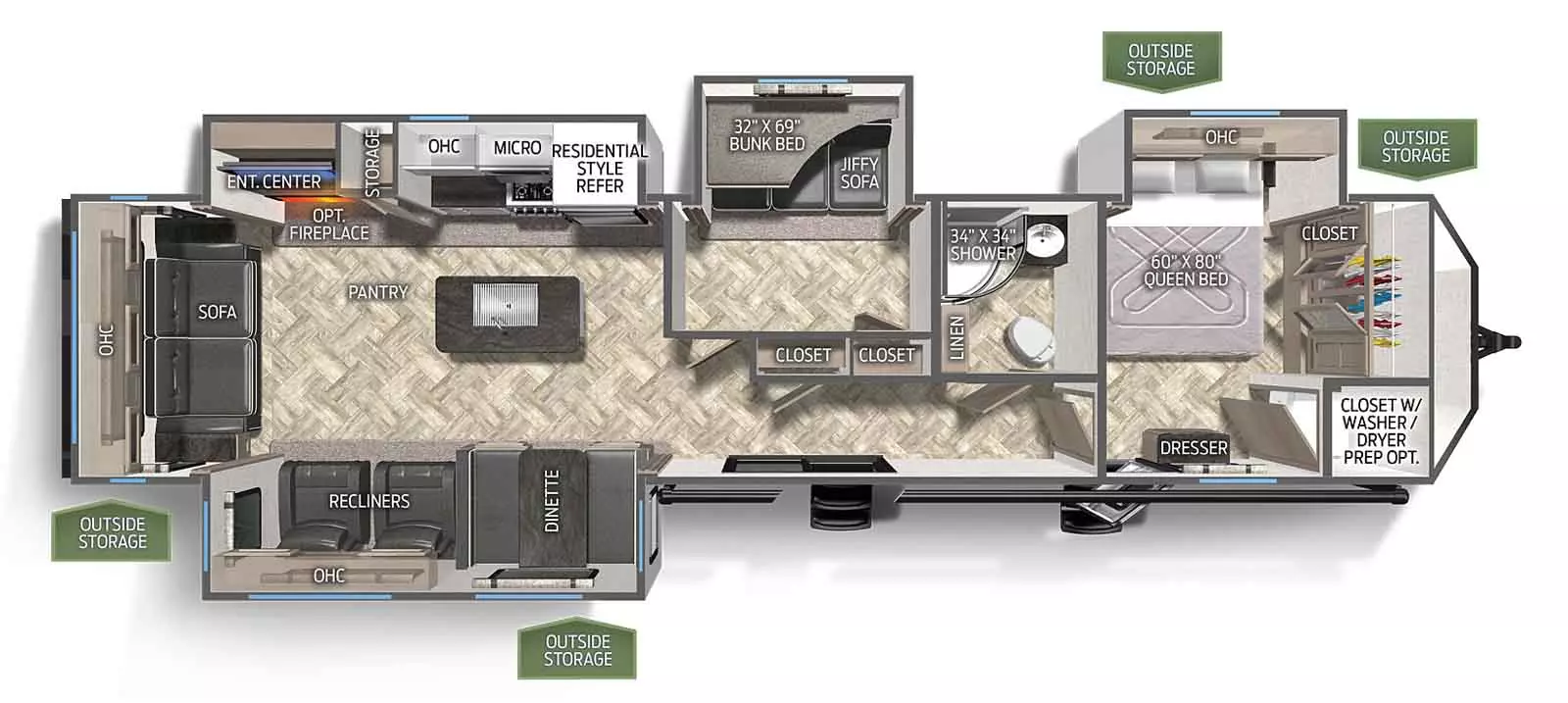

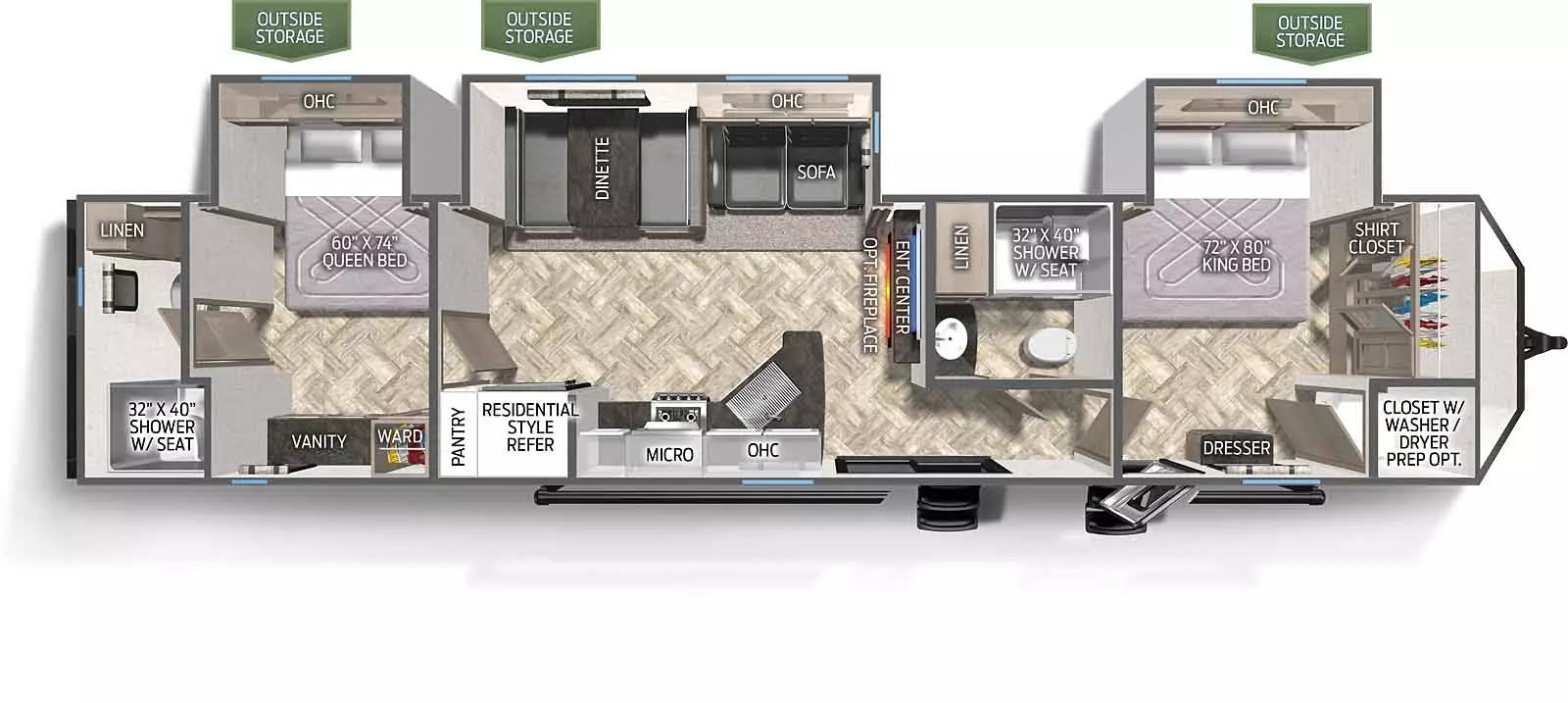

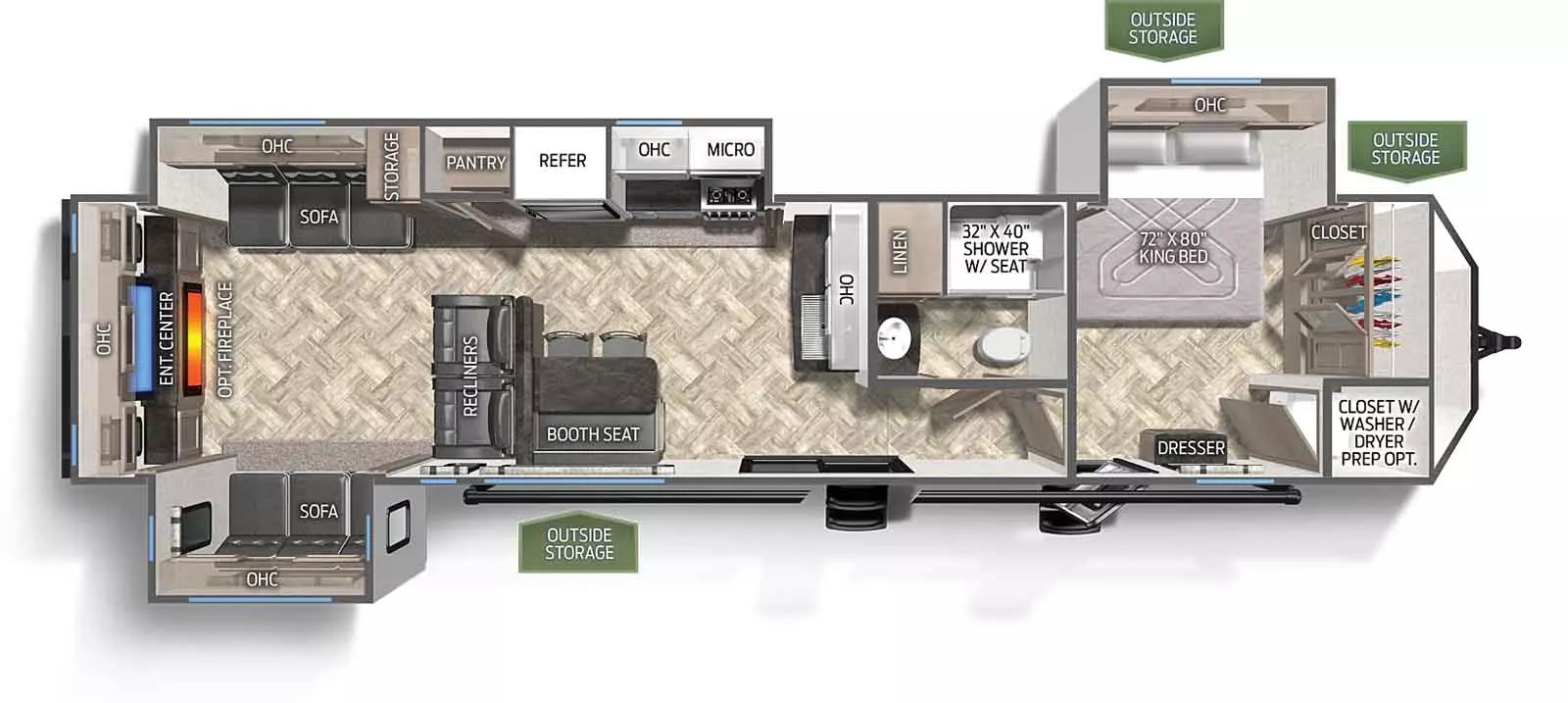

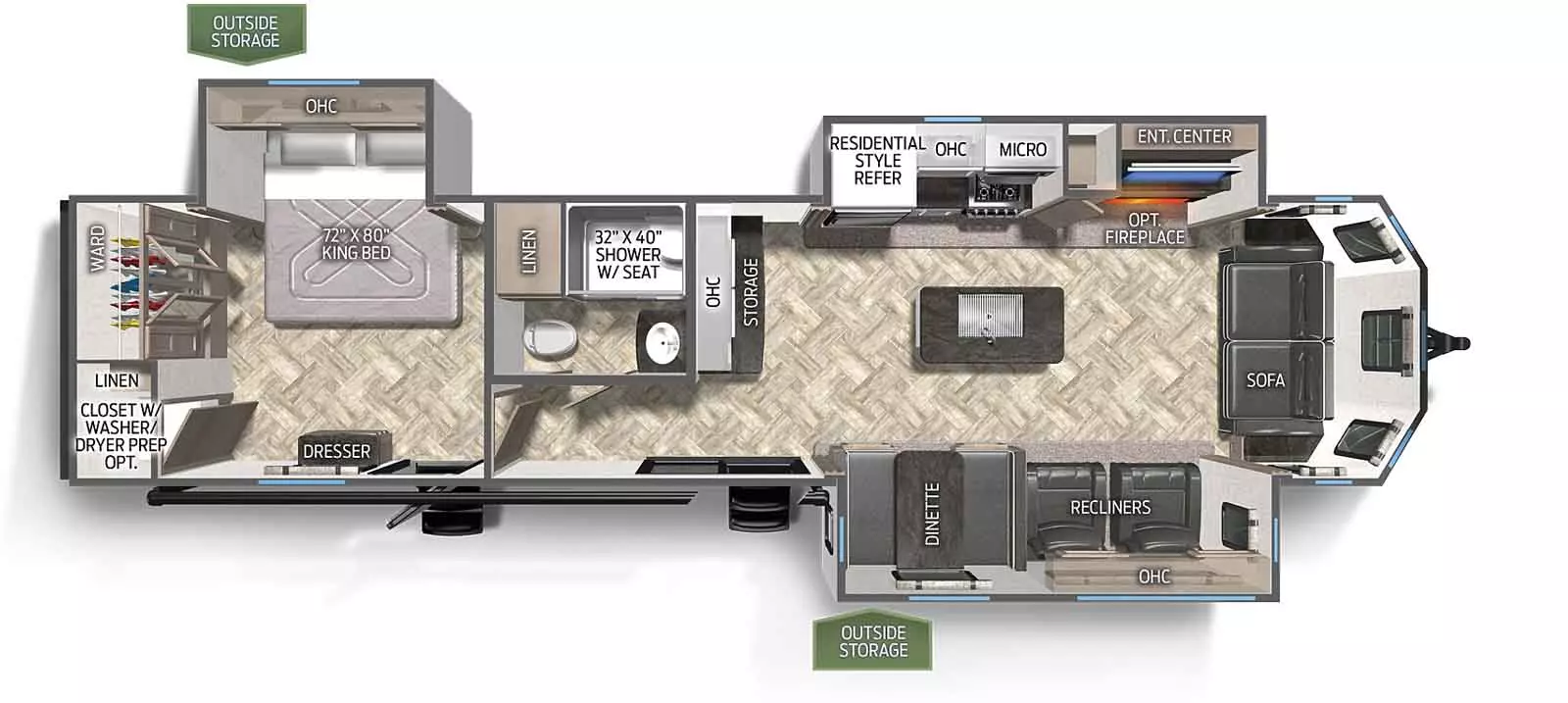

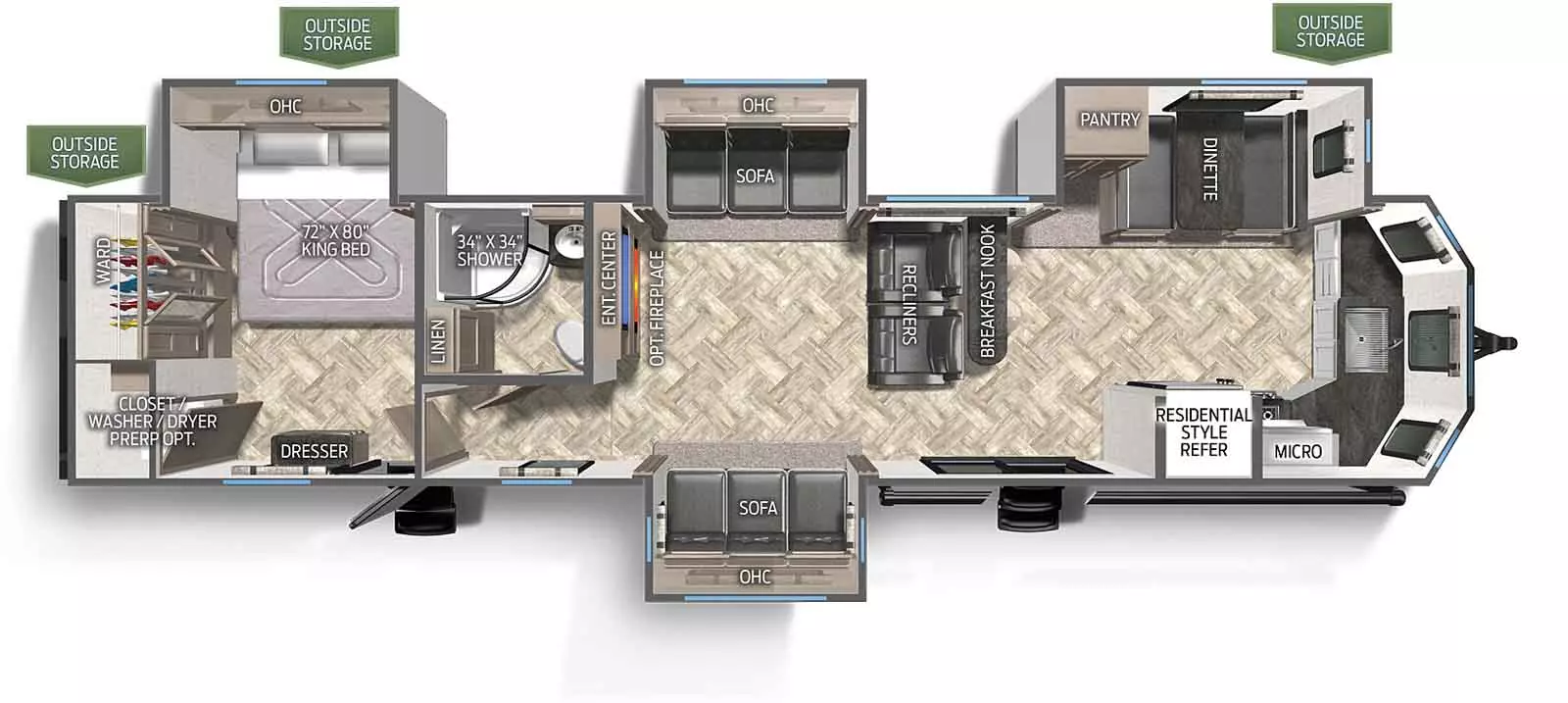

Floorplan: 37PFL : Destination Trailers 38DEN : Destination Trailers 38RLB : Destination Trailers 38RLQ : Destination Trailers 39DBT : Destination Trailers 39FKL : Destination Trailers 39PFK : Destination Trailers 39PQB : Destination Trailers
Hitch Weight:1,780 lb.1,295 lb.1,525 lb.1,469 lb.1,439 lb.1,540 lb.1,392 lb.1,413 lb.
GVWR:11,980 lb.11,500 lb.11,685 lb.11,629 lb.12,000 lb.11,700 lb.11,592 lb.13,413 lb.
UVW:9,753 lb.9,979 lb.10,240 lb.9,468 lb.10,162 lb.10,455 lb.10,004 lb.10,709 lb.
CCC:2,227 lb.1,521 lb.1,445 lb.2,161 lb.1,838 lb.1,245 lb.1,588 lb.2,704 lb.
Exterior Length:40' 8"40' 6"41' 10"39' 9"42' 4"42' 1"40' 8"42' 3"
Exterior Height:11' 9"11' 9"11' 9"11' 9"11' 9"11' 9"11' 9"11' 9"
Exterior Width:96"96"96"96"96"96"96"96"
Fresh Water:43.00 gal.43.00 gal.43.00 gal.43.00 gal.43.00 gal.43.00 gal.43.00 gal.43.00 gal.
Gray Water:34.50 gal.34.50 gal.69.00 gal.34.50 gal.99.00 gal.69.00 gal.64.50 gal.99.00 gal.
Black Water:34.50 gal.34.50 gal.34.50 gal.34.50 gal.69.00 gal.30.00 gal.34.50 gal.69.00 gal.
Awning Size:19'18'19'18'21'21'21'21'

GVWR (Gross Vehicle Weight Rating) – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GAWR (Gross Axle Weight Rating) – is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by a combination of all axles.

UVW (Unloaded Vehicle Weight)* – is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s) and tongue or pin and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity) ** – is the amount of weight available for fresh potable water, cargo, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before filling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Palomino RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Palomino RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.

Note: Specifications are subject to change without notice.

Features & Options

Print
  • Friction Hinged Radius Entry Doors
  • Powder Coated Frames
  • Super Lube Axles
  • Tinted Safety Glass
  • Clamp Ring Windows
  • Pass-Thru Storage (Where applicable)
  • Power Awning w/LED Light Strip (Optional on Destination Trailers)
  • AlphaPly Roofing Membrane w/Limited Lifetime Warranty
  • 4 Manual Stabilizer Jacks

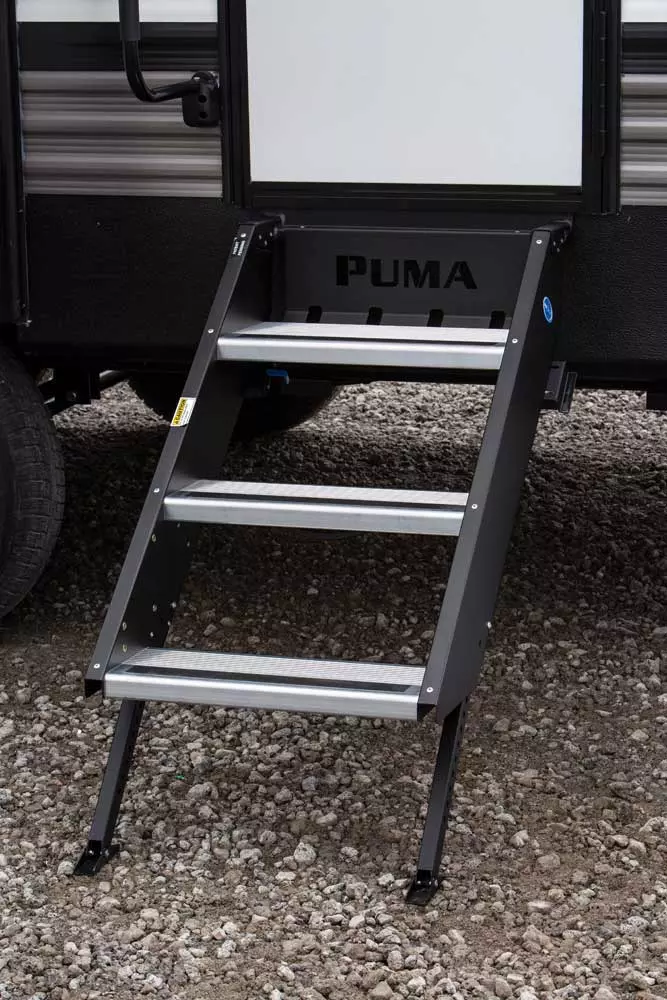

  • 9" Three-tier Steps
  • Rain Gutters w/Large Downspouts

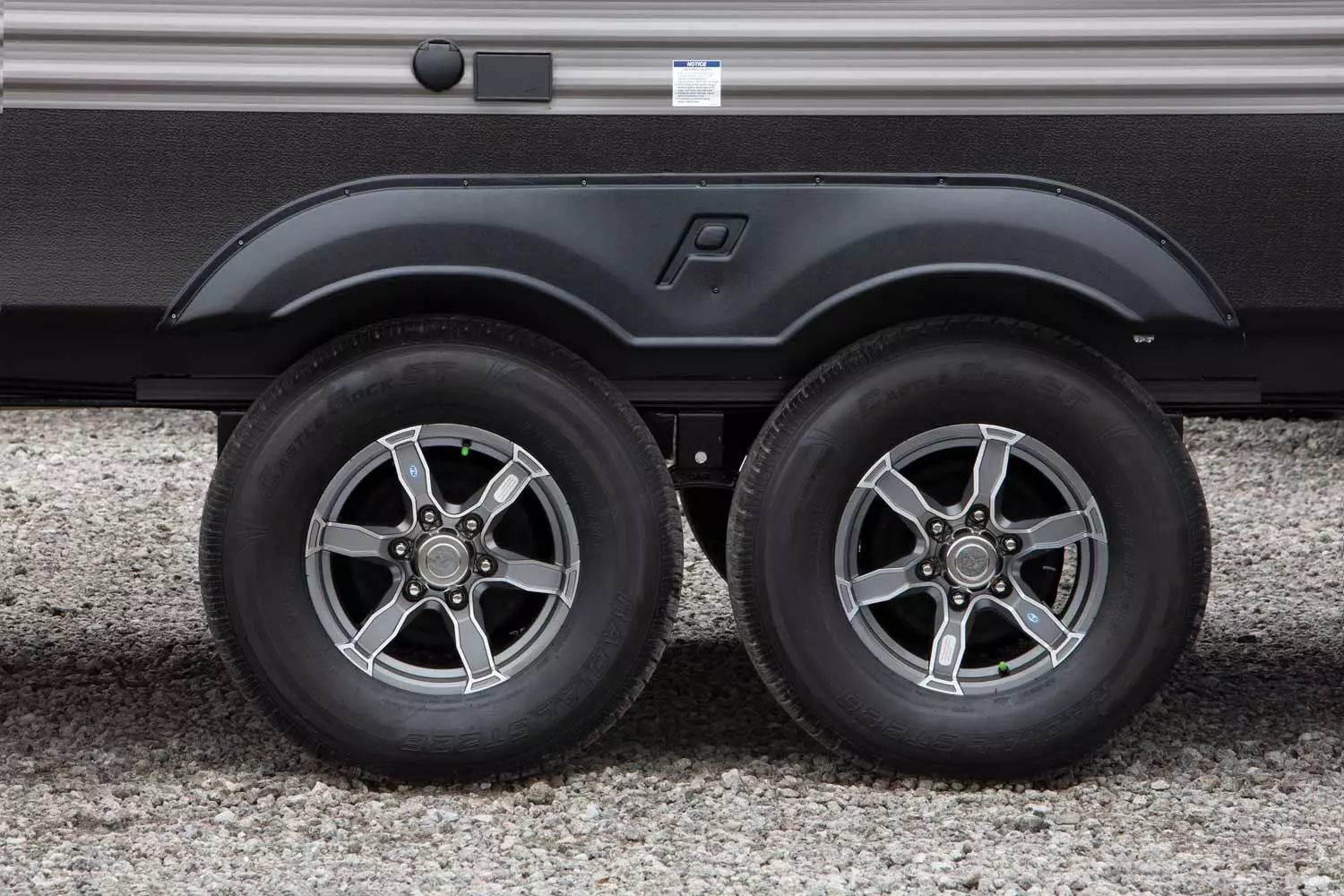

  • ABS Automotive Style Fender Skirts

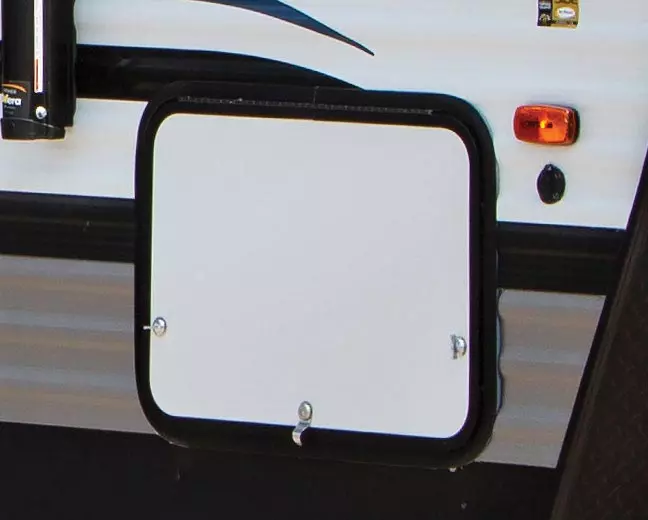

  • Radius Baggage Doors
  • Darco Wrapped Underbelly
  • Enclosed Underbelly (Most models)
  • 5/8" Araucoply Plywood Floor Decking (25 Year manufacturer’s limited warranty)
  • 2" x 3" Flush Floor Joists on 12" Centers
  • Pass-Thru Exterior Baggage Compartments (Where applicable)
  • 2-20 Lb. Gas Bottles
  • 6 Gal. DSI Hot Water Heater
  • Rack & Pinion Electric Slide System w/Manual Override (Standard on all slide outs)
  • Clamp Ring Luggage Doors
  • Back-up Camera Prep

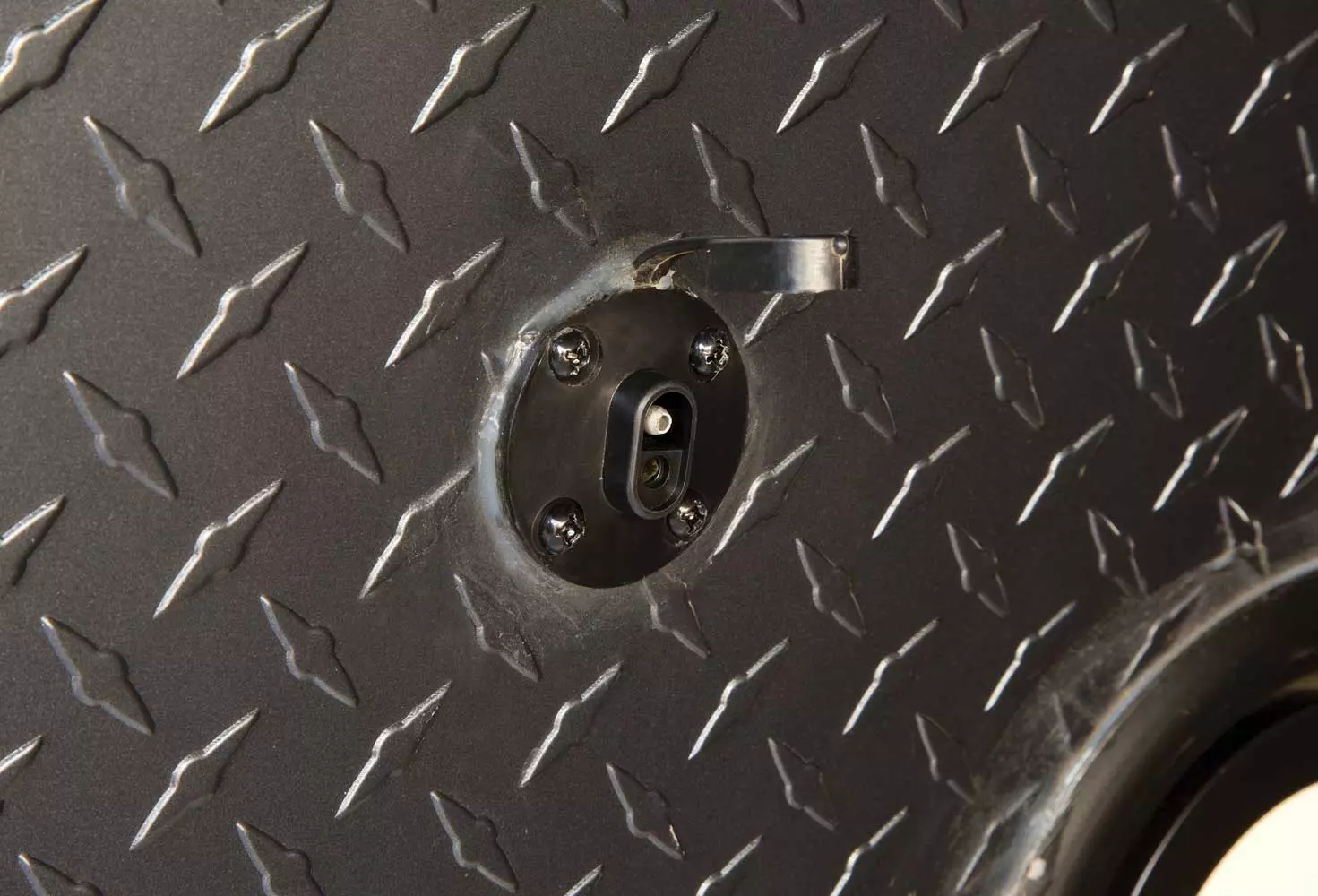

  • Solar Prep
  • 84" Interior Height
  • Floor Ducted Heat

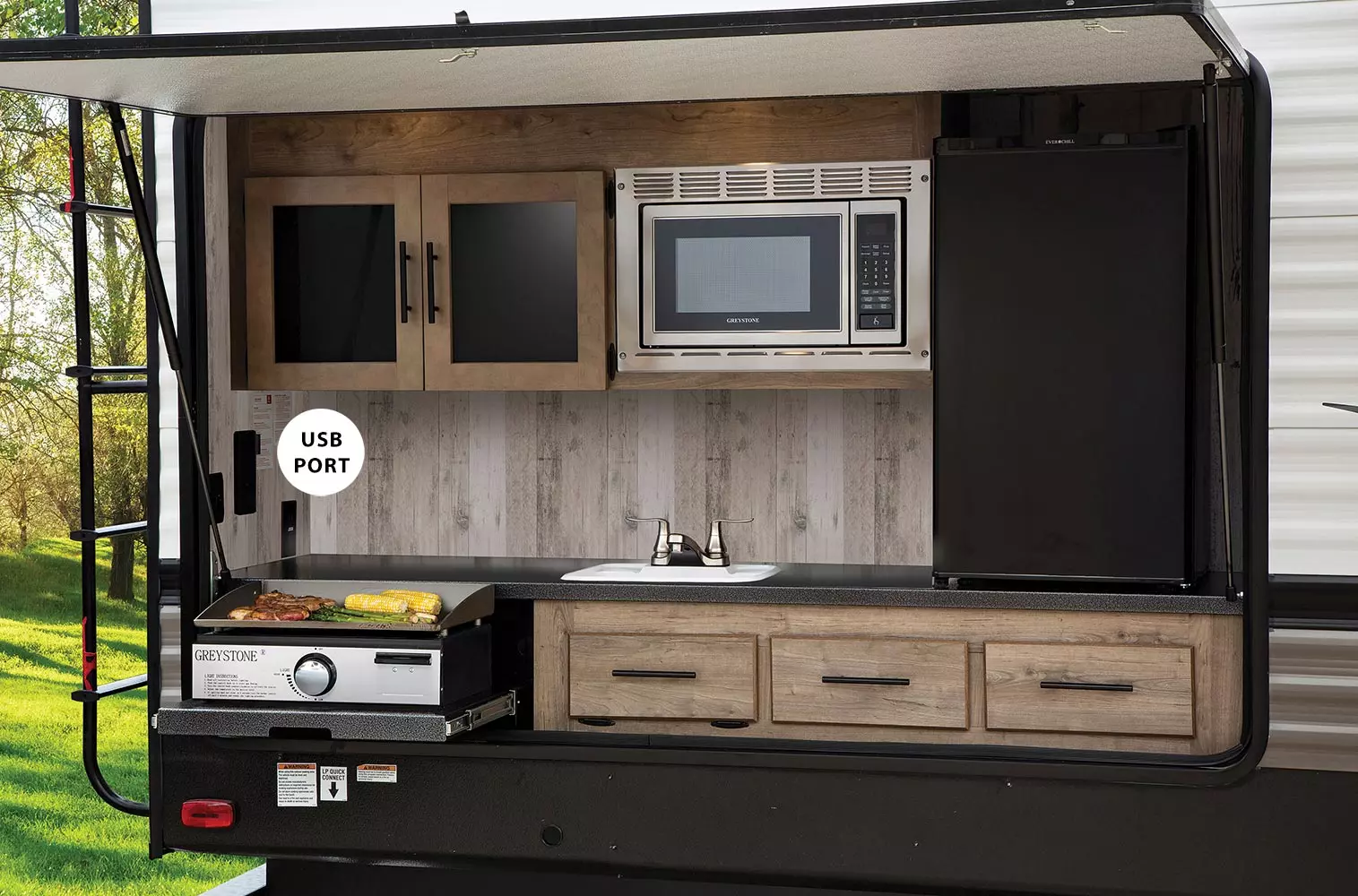

  • USB Charging Ports
  • 35,000 BTU Furnace
  • 14" Deep Overhead Cabinets in Super-Slide Models
  • Decorative Kitchen Backsplash
  • Kitchen Ball Bearing Drawer Guides
  • Spice Rack (Kitchen)
  • Divided Silverware Drawer
  • High-rise Faucet w/Sprayer
  • 3-Burner, High Output Range

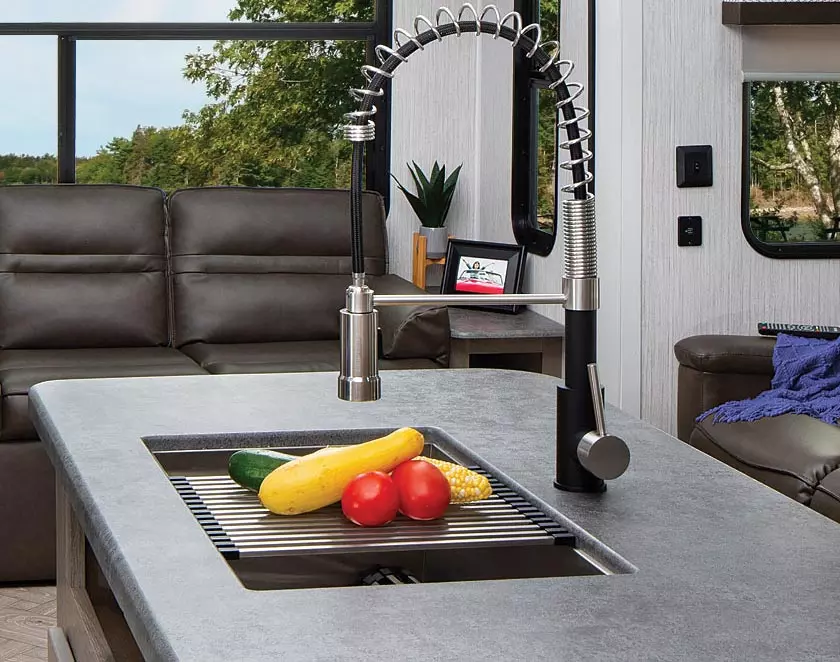

  • Undermount Stainless Steel Sink
  • Routed Metal Backsplash
  • Roll-up Stainless Steel Sink Covers
  • New Hardware Black Handles & Hinges (Kitchen, Living Room)
  • Glass Range Cover
  • Built-in Knife Rack
  • LED Ceiling Lights
  • 55 Amp Converter w/Battery Charger
  • AM/FM/Bluetooth Stereo
  • King Antenna w/WiFi Prep
  • Jack Knife Sofa w/Pull-down Center Drink Tray – Storage Underneath
  • Jack Knife Sofa Under Bunks

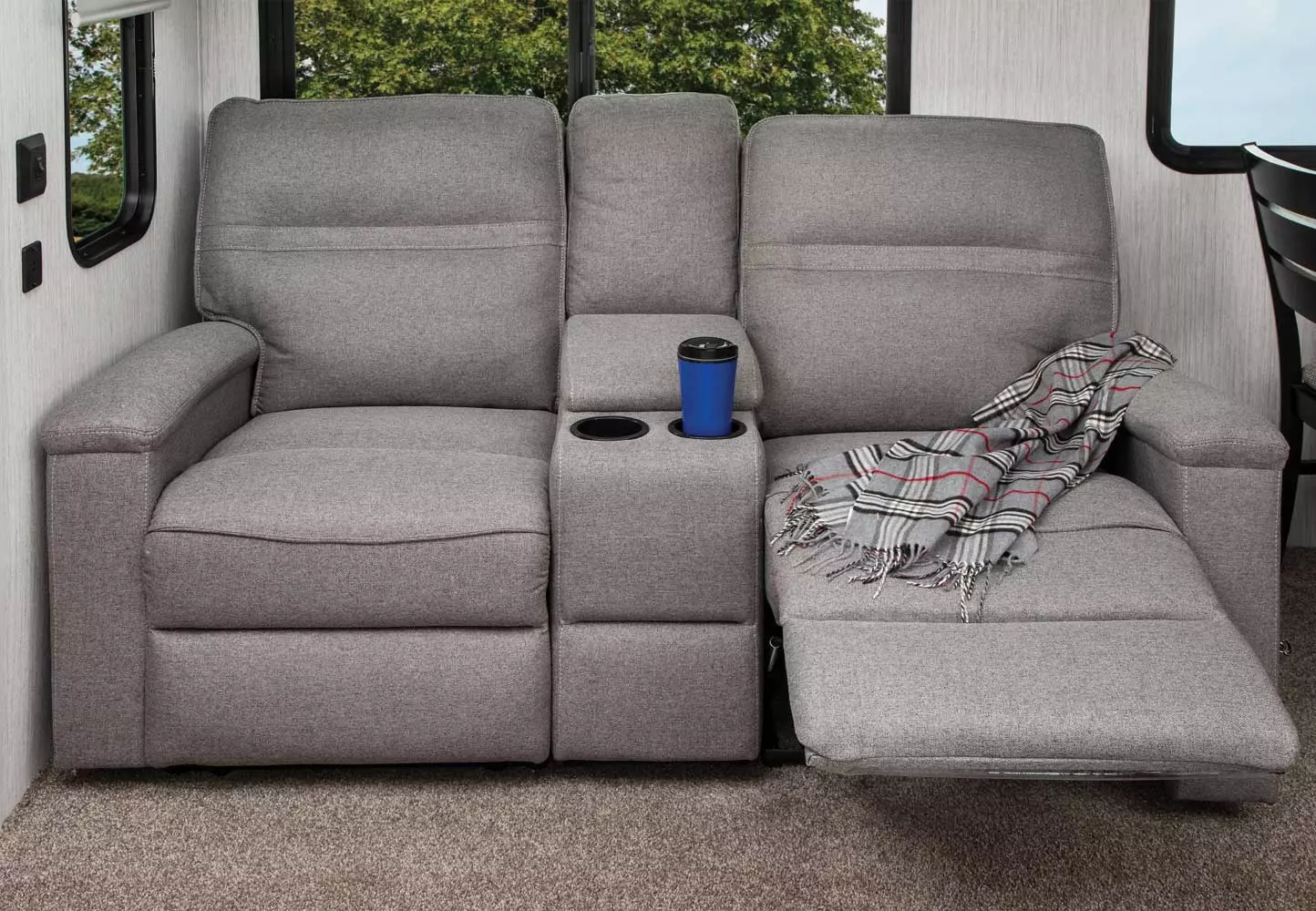

  • Push-back Recliner(s) (select models)
  • Wood Medicine Cabinet with Mirrored Door
  • Power Vent in Bath
  • Glass Shower Door (select models)
  • 12V Shower LED Light
  • 60” x 80” Queen Beds
  • High Density Foam Mattress
  • Upgraded Soft Teddy Bear Bunk Mats
  • Shirt Closet in Front Bedrooms
  • Nightstands in Front Bedrooms
  • Two Interior Decors
  • Coat Hooks in Entry Way (Most models)

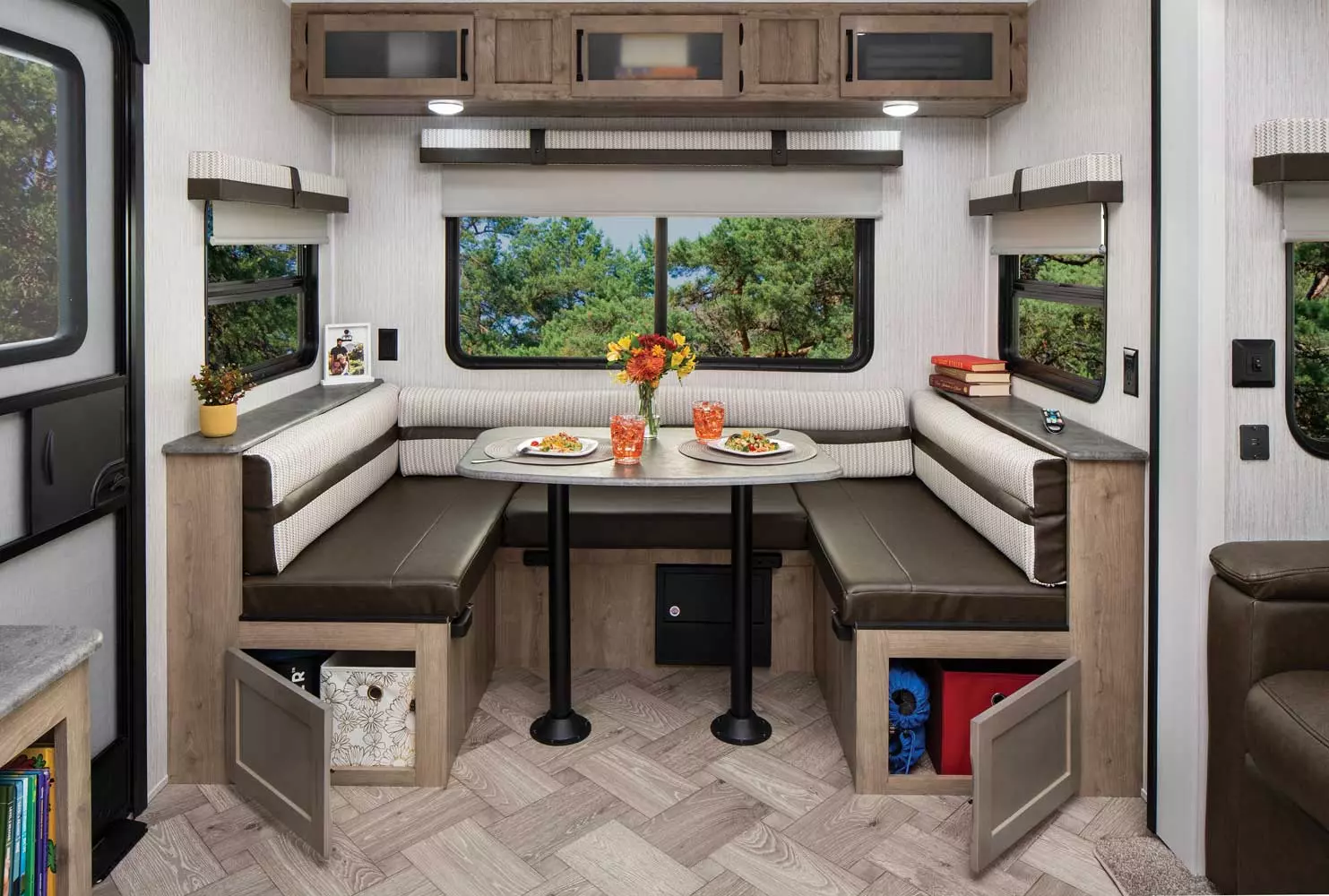

  • Square Dinette Seat Bases w/Cabinet Storage
  • Residential Carpet with pad
  • Designer Window Treatments (Living room)
  • Carbon Monoxide Detector
  • LP Leak Detector
  • Fire Extinguisher
  • Smoke Detector
  • Pre-wired for Solar System
  • Folding Grab Handle

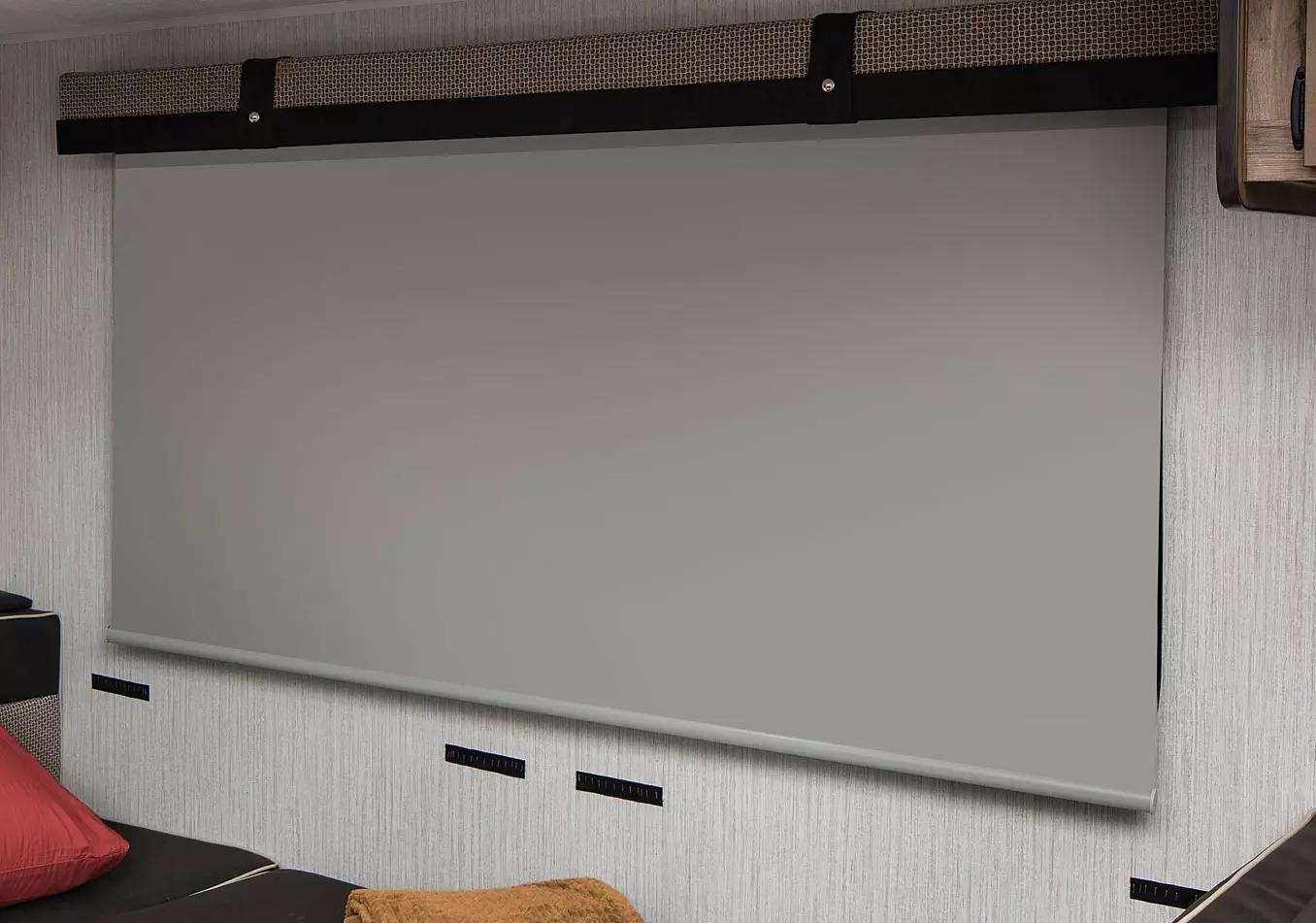

  • Night Roller Shades

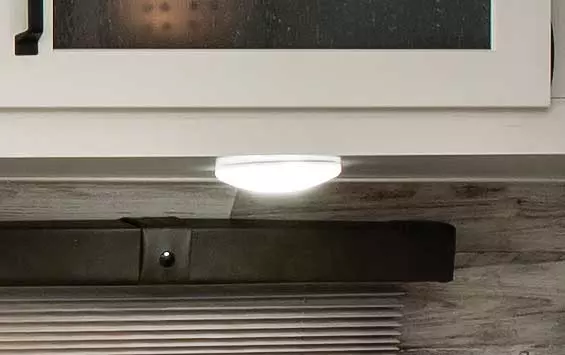

  • LED Lighting
  • 13,500 BTU Ducted A/C

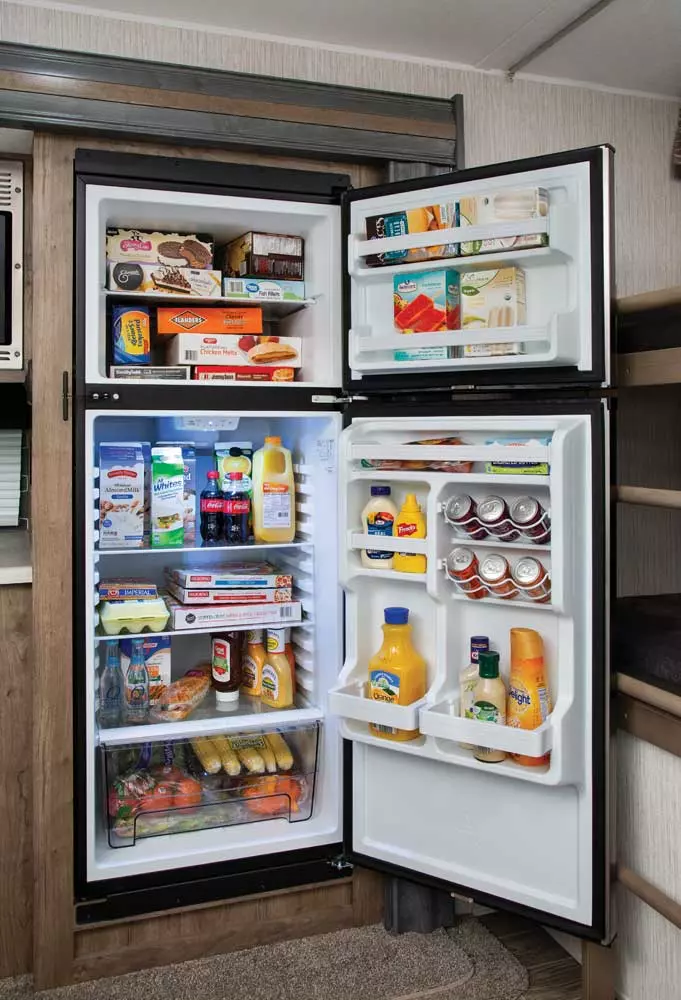

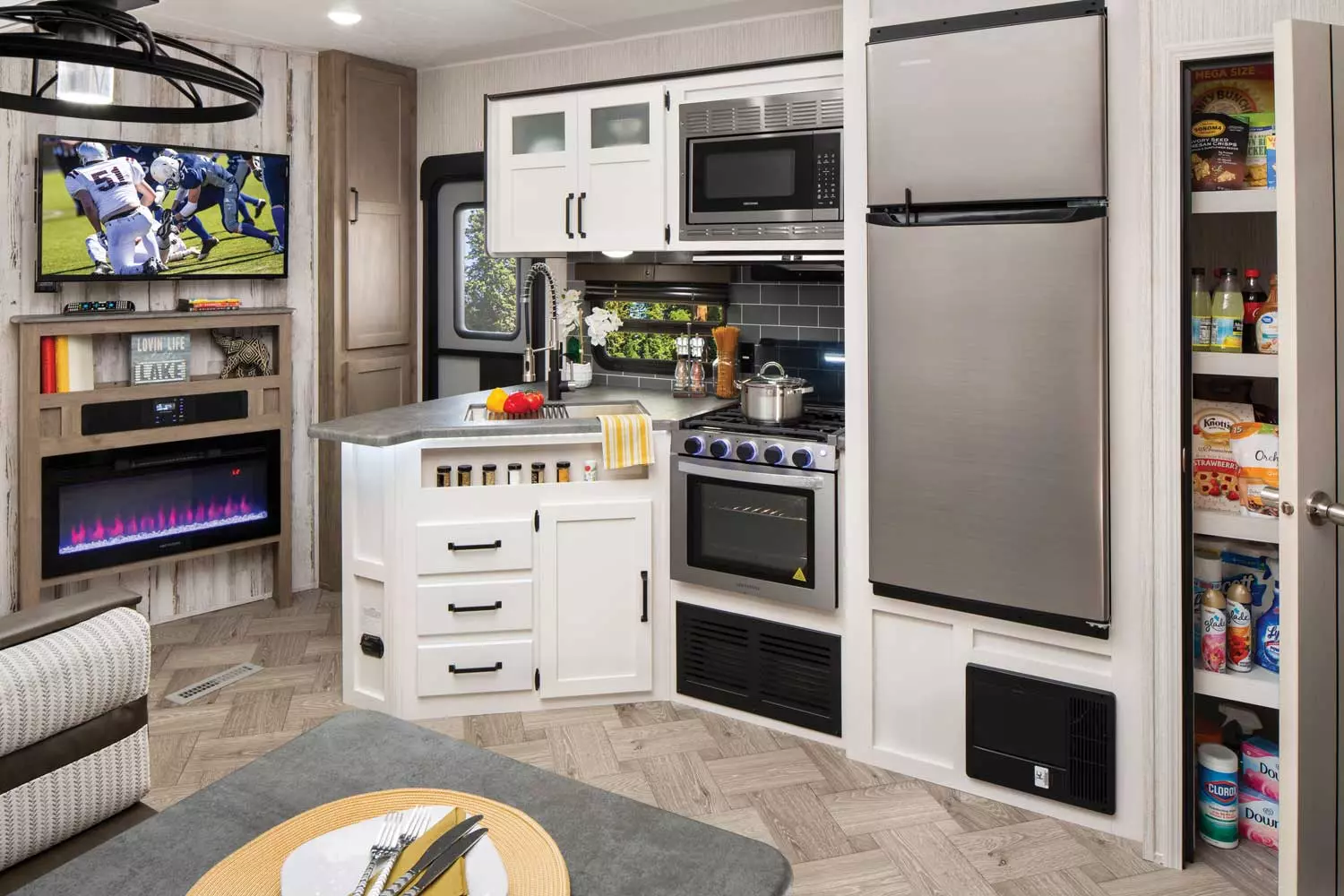

  • 18 Cu. Ft. Stainless Steel Residential Refrigerator w/Ice Maker
  • 1.3 Cu. Ft. Microwave
  • 24” Stainless Steel Oven w/Four Burner Stove
  • Range Hood
  • Beauflor Linoleum
  • Bedspread
  • Bedroom TV Hook-up
  • TV Antenna w/Booster & Cable Hook-up
  • ABS Tub Surround
  • 12 Gal Gas/Electric DSI Water Heater
  • AM/FM/Bluetooth Stereo
  • Undermount Stainless Steel Sink w/Covers
  • High-rise Faucet w/Sprayer
  • Black Tank Flush
  • Patio Door
  • WiFi Prep
  • 4 Stabilizer Jacks
  • 30 lb. Gas Bottles & Cover
  • 50 AMP Service (Second A/C Prep)
  • 15,000 BTU Ducted A/C IPO 13,500
  • Outside Shower
  • Solid Surface Countertop
  • Table & Chairs IPO Dinette
  • Dinette w/Booth Bench and Chairs (38 DEN)
  • 12V Ceiling Fan in Living Room
  • 2 Exterior Speakers

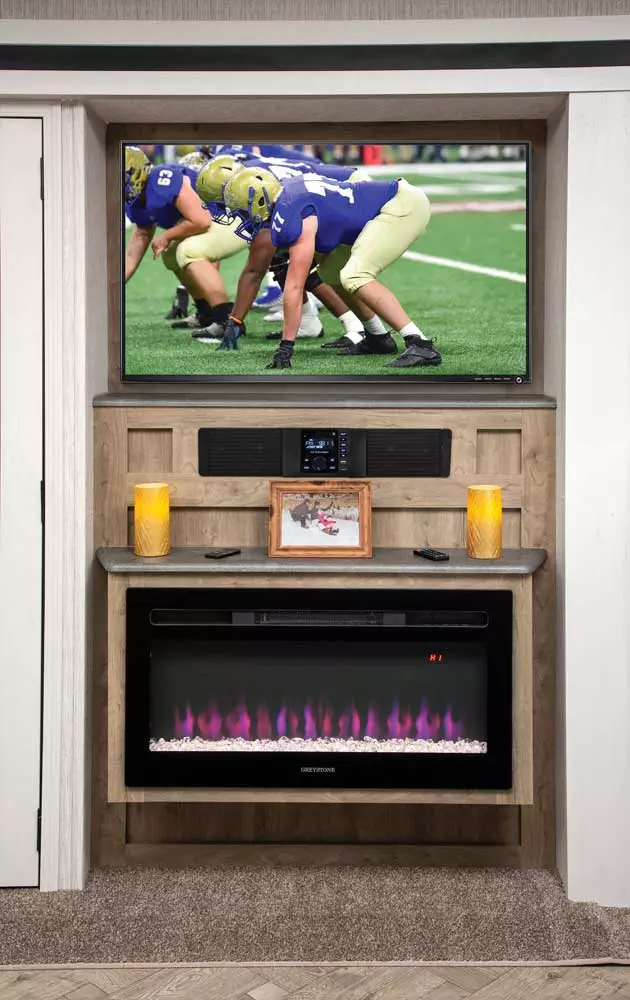

  • 5,100 BTU Electric Color Changing Fireplace
  • Tri-Fold Sofa IPO Jacknife in Living Room
  • Night Roller Shades


Videos

Some videos may show features or options not available on all products. Contact our service representatives or your local dealer if you have questions about how your specific RV operates.
