Revolve Travel Trailers

THE REVOLVE IS 100% POWERED BY SOLAR and allows for more travel flexibility than any other product on the market. Whether your destination is a campground, or the middle of nowhere, the REVOLVE provides a renewable energy source while you are on the road. With three ways to charge 1) solar 2) shore power or 3) tow vehicle, you will never worry about running out of power again.


RV News New Unit 2019 Best of Show - Revolve EV1Care Camps, fighting cancer and making memories

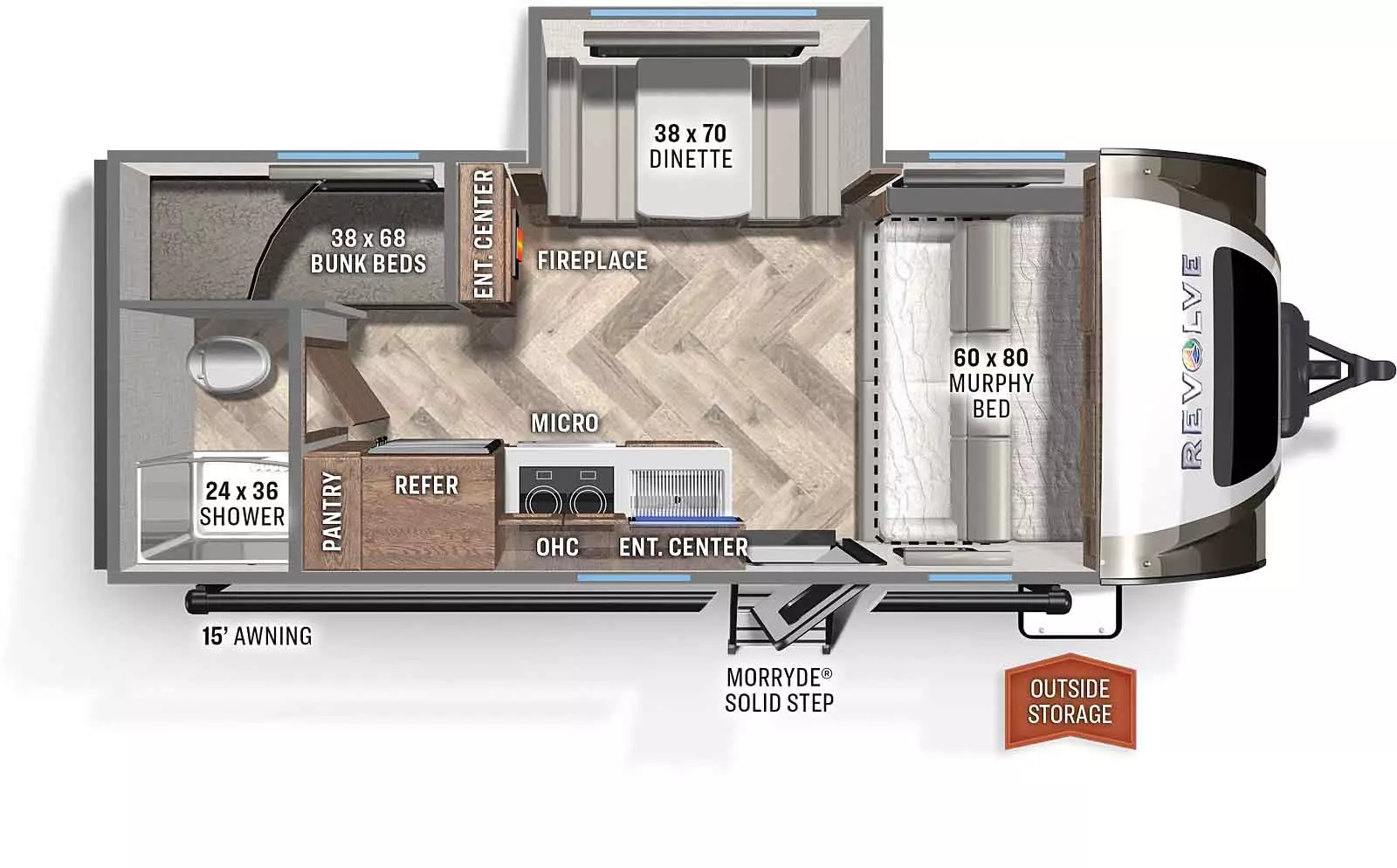

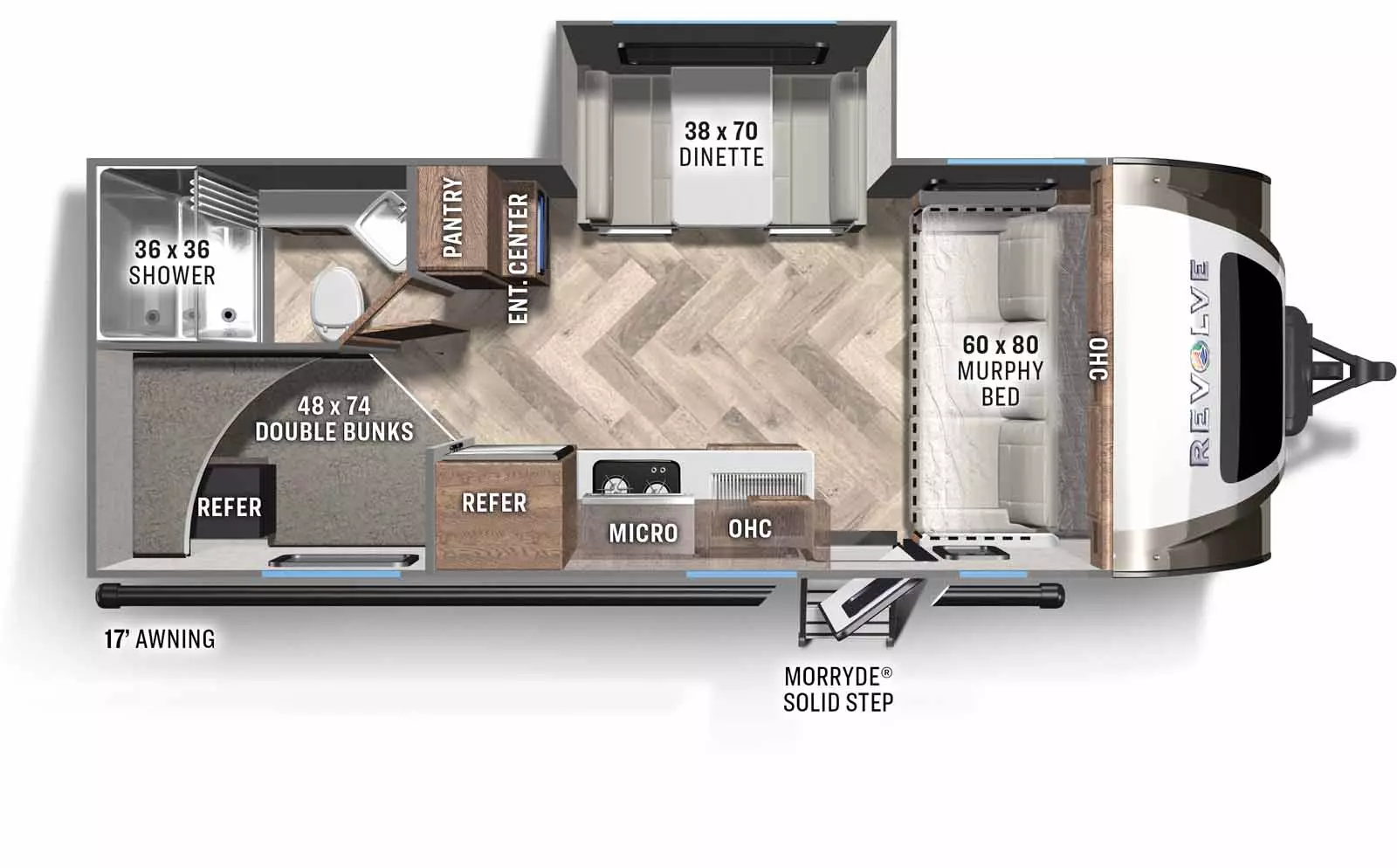

Floorplans

Print

Travel Trailers
Temporarily Unavailable


Specifications

Print

Floorplan: EV1 : Travel Trailers EV3 : Travel Trailers EV2 : Temporarily Unavailable EV4 : Temporarily Unavailable
Hitch Weight:570 lb.550 lb.585 lb.455 lb.
GVWR:4,970 lb.4,950 lb.4,985 lb.4,855 lb.
UVW:4,250 lb.4,115 lb.3,960 lb.3,865 lb.
CCC:720 lb.835 lb.1,025 lb.990 lb.
Exterior Length:21' 9"22' 11"21' 9"22' 11"
Exterior Height:10' 3"10' 3"10' 3"10' 3"
Exterior Width:90"90"90"90"
Fresh Water:44.00 gal.44.00 gal.44.00 gal.44.00 gal.
Gray Water:30.00 gal.30.00 gal.30.00 gal.30.00 gal.
Black Water:38.00 gal.38.00 gal.38.00 gal.38.00 gal.
Awning Size:14'15'14'15'

GVWR (Gross Vehicle Weight Rating) – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GAWR (Gross Axle Weight Rating) – is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by a combination of all axles.

UVW (Unloaded Vehicle Weight)* – is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s) and tongue or pin and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity) ** – is the amount of weight available for fresh potable water, cargo, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before filling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Palomino RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Palomino RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.

Note: Specifications are subject to change without notice.

Features & Options

Print
  • Off Grid pkg which includes (mandatory pkg): (4) 100W solar panels, (4) Lithium batteries, On board battery charger and monitor panel, Tow vehicle power adaptor 23’
  • 24” 12v TV
  • Convection microwave
  • Frameless windows
  • Hi-Gloss Gel coat front cap w/Line X protection and windshield
  • Single Torsion Axle
  • Constructed with Azdel
  • Solid surface counter tops
  • Enclosed underbelly
  • Off Road Package: 15” alum wheels with 28” mudder tires, Flared Fenders, Assist Rail
  • Power stabilizer Jacks
  • Portable Solar Panel (300W)
