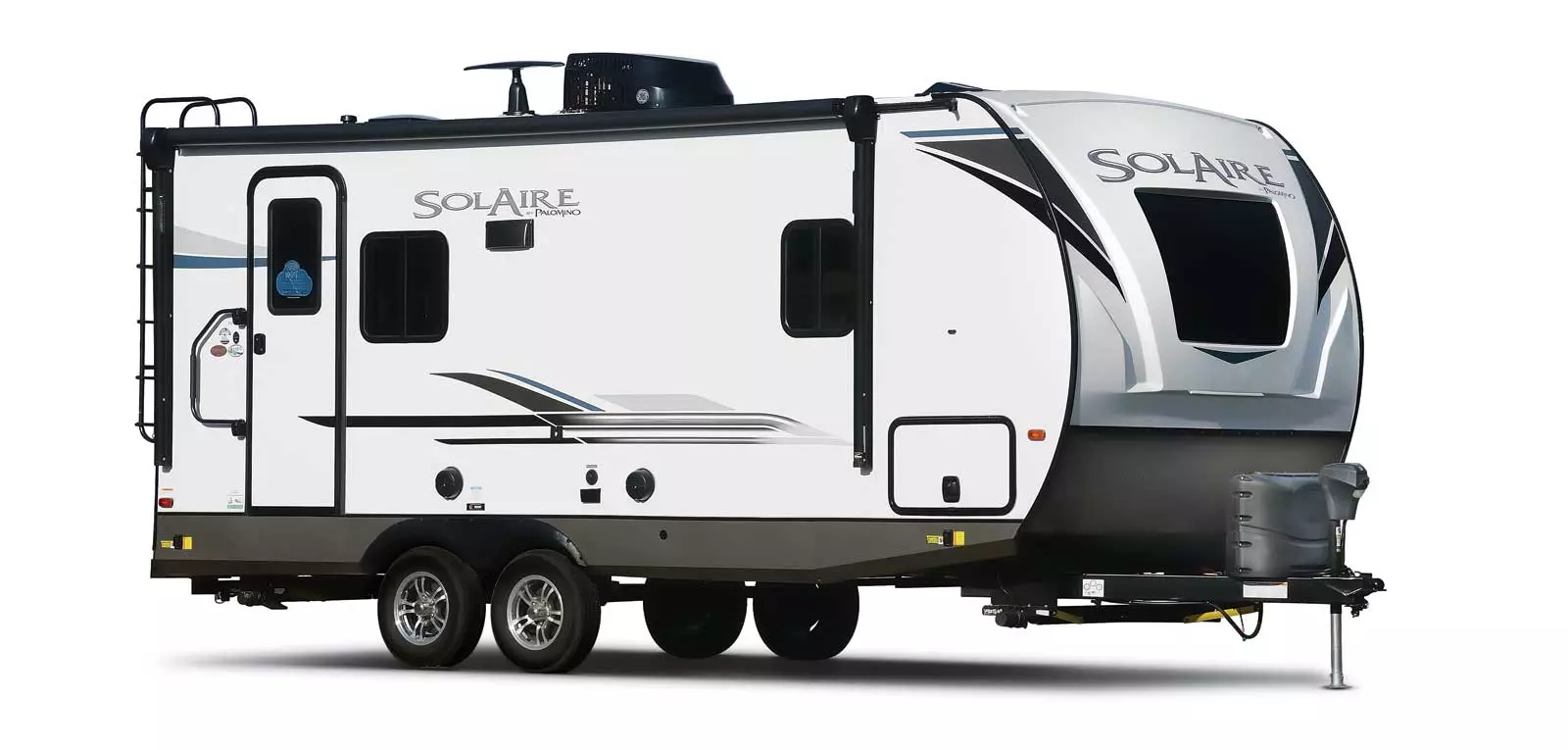

SolAire Ultra Lite Travel Trailers

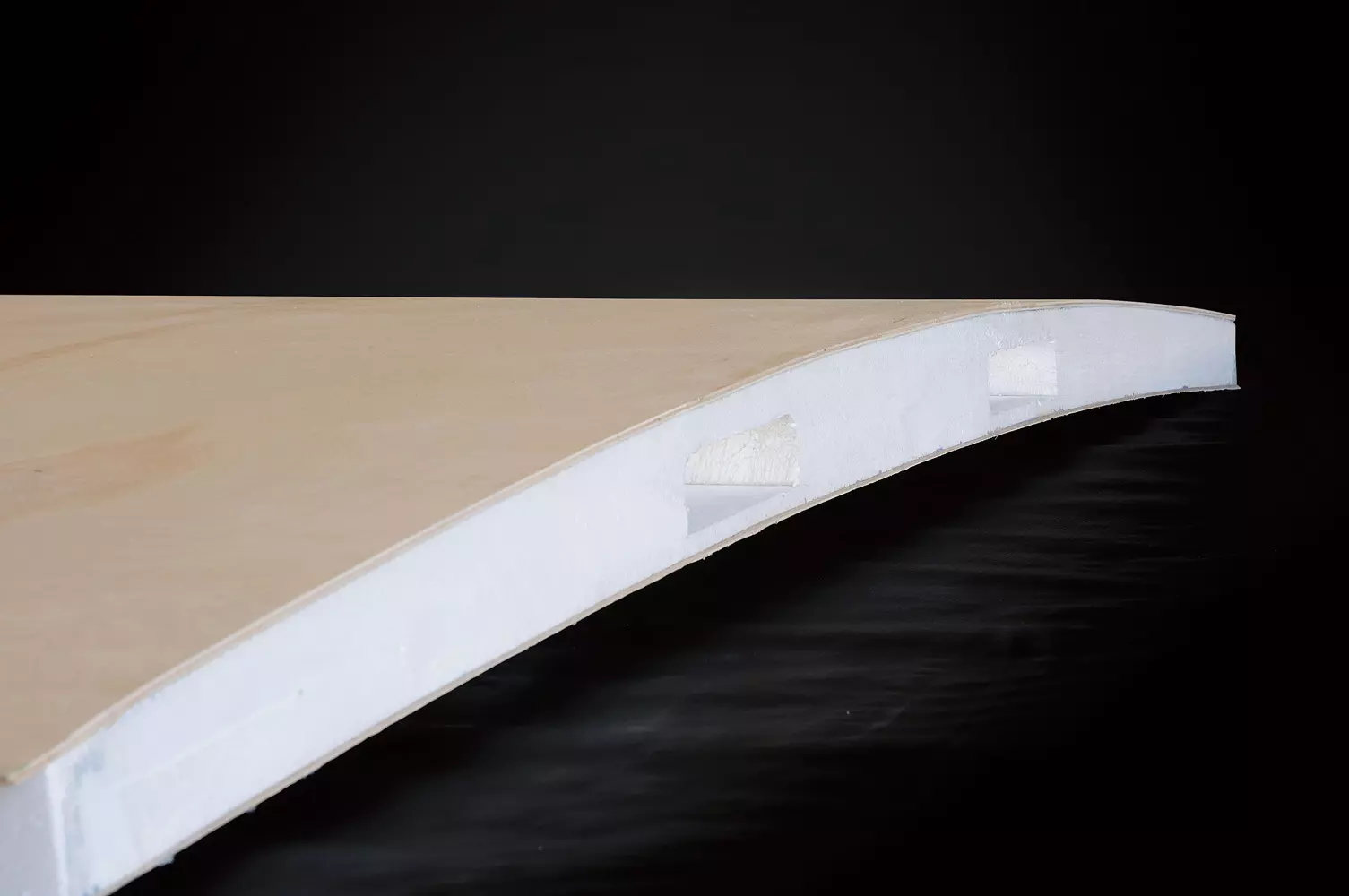

The Ultra Lites are the results of superior design and modernization. Striving to meet all the customer’s demand this trailer provides a smooth ride with independent suspension axles, aluminum superstructure frame for light weight towing and barreled ceilings for a more spacious interior.

Care Camps, fighting cancer and making memories

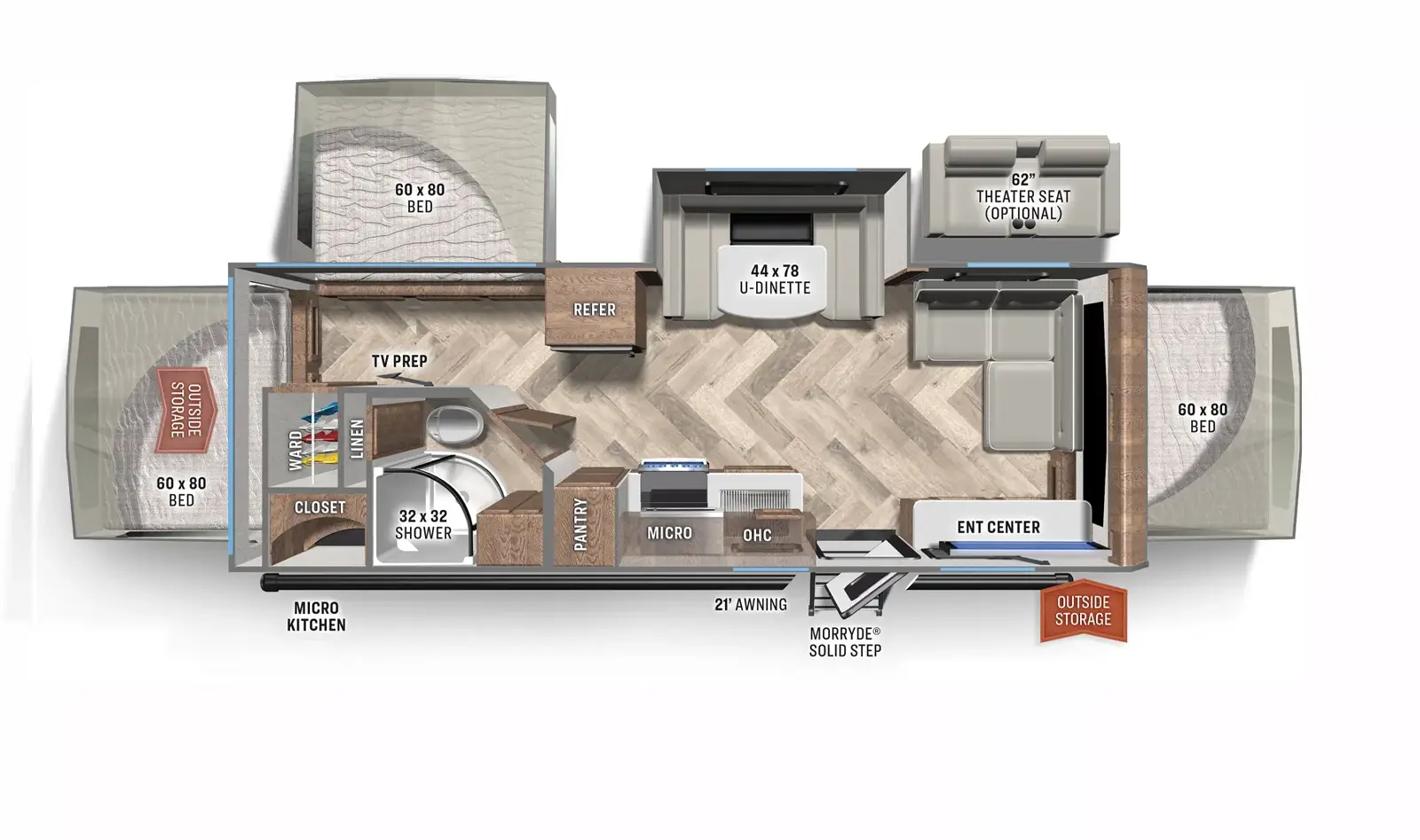

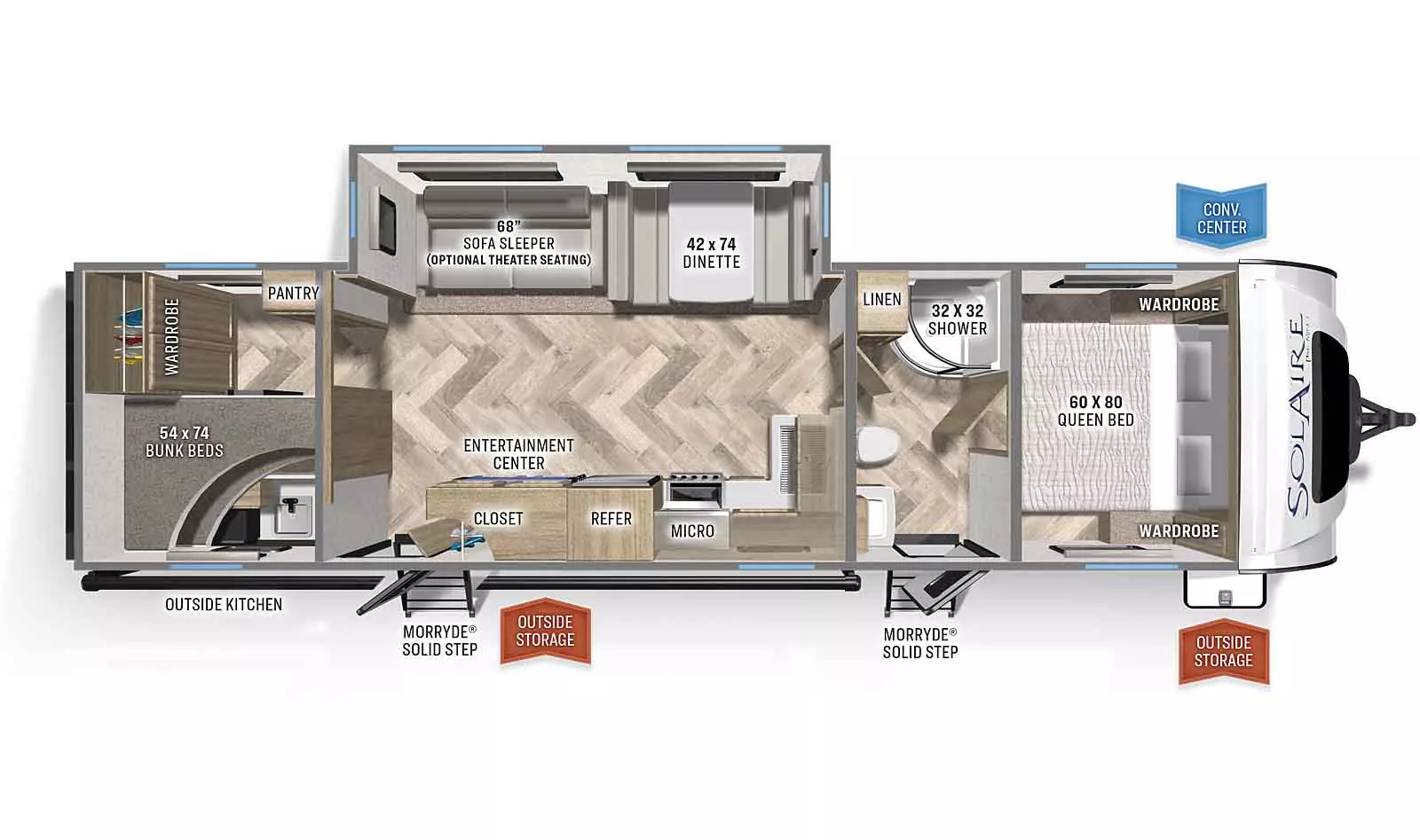

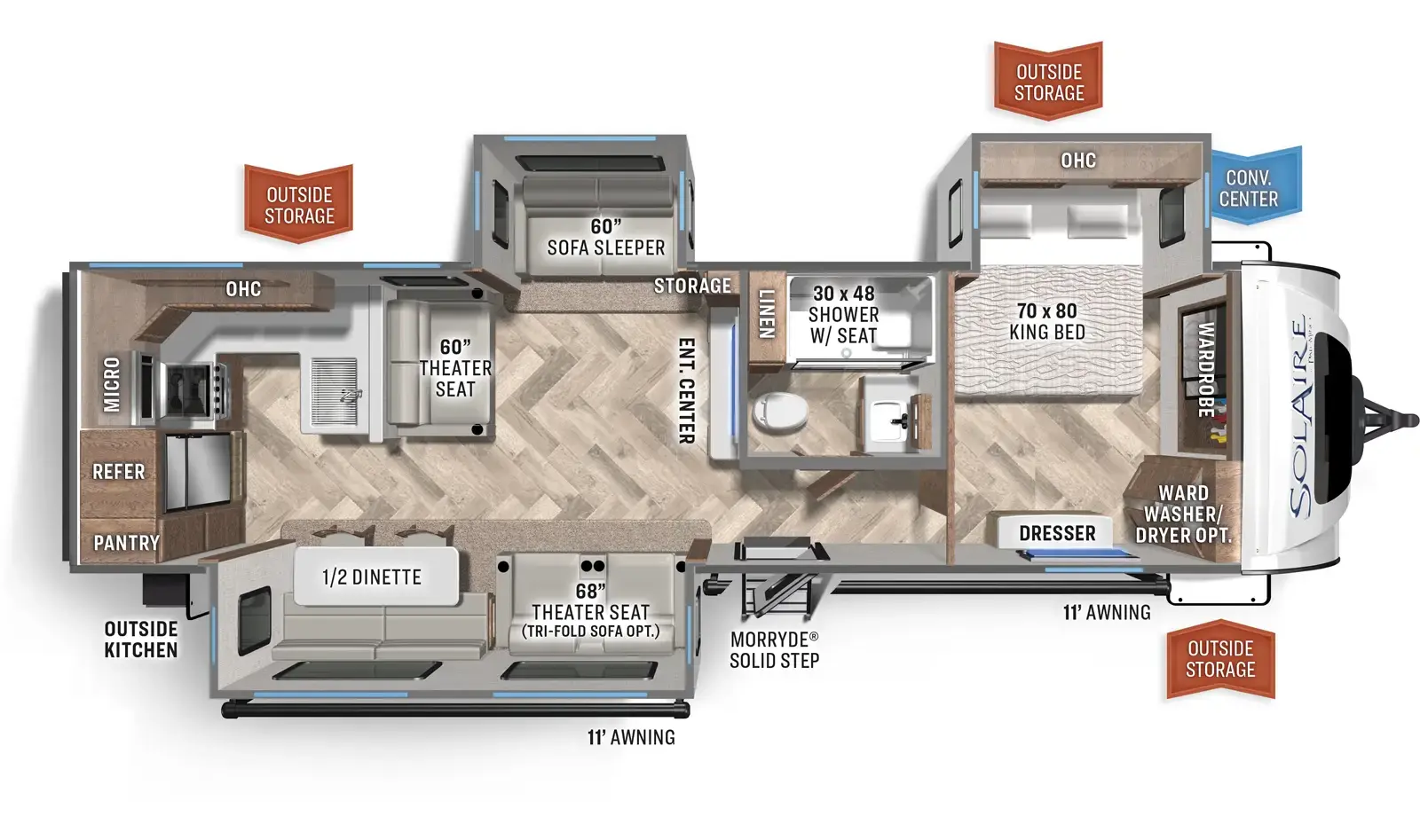

Floorplans

Print

Ultra Lite Travel Trailers
Temporarily Unavailable


Specifications

Print

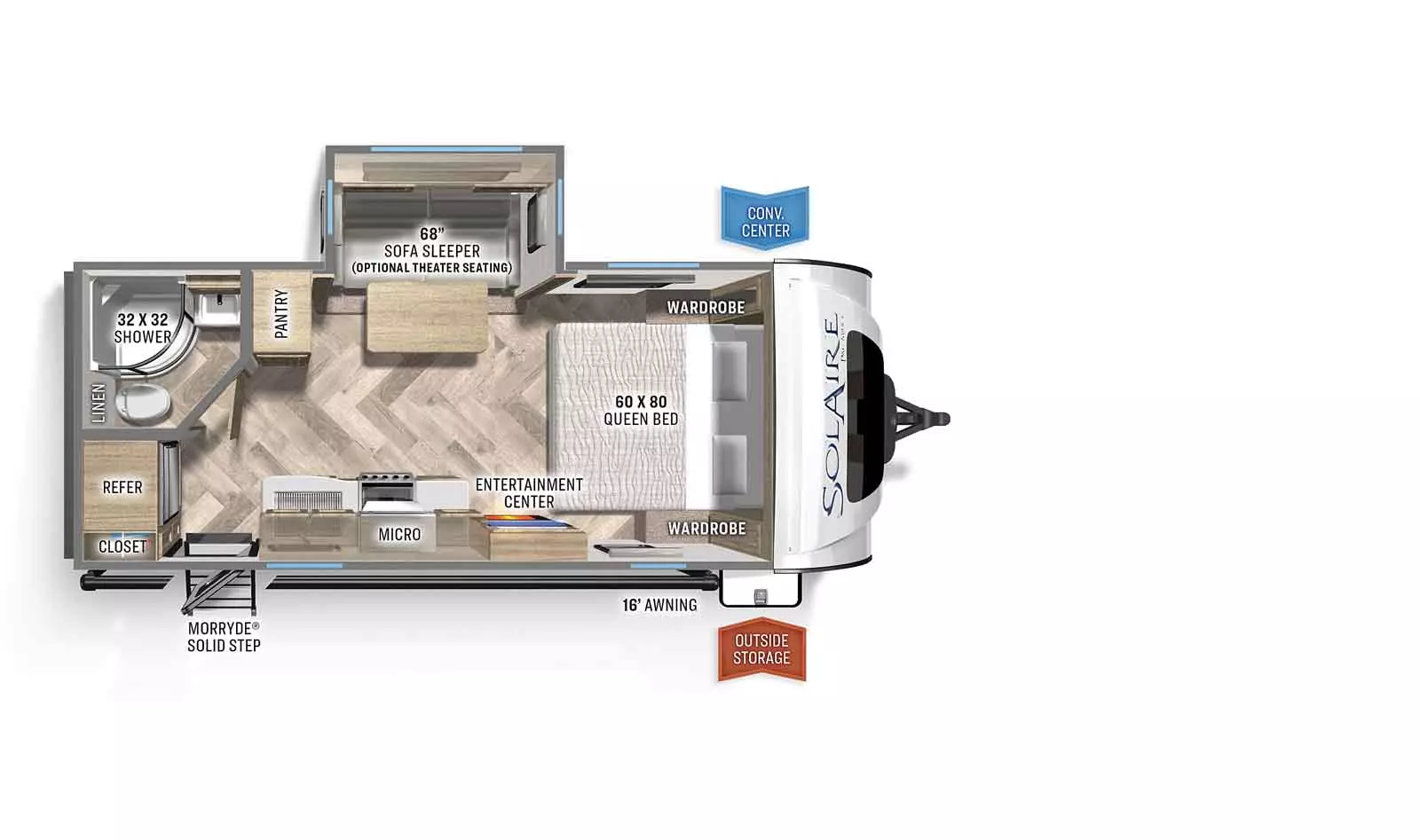

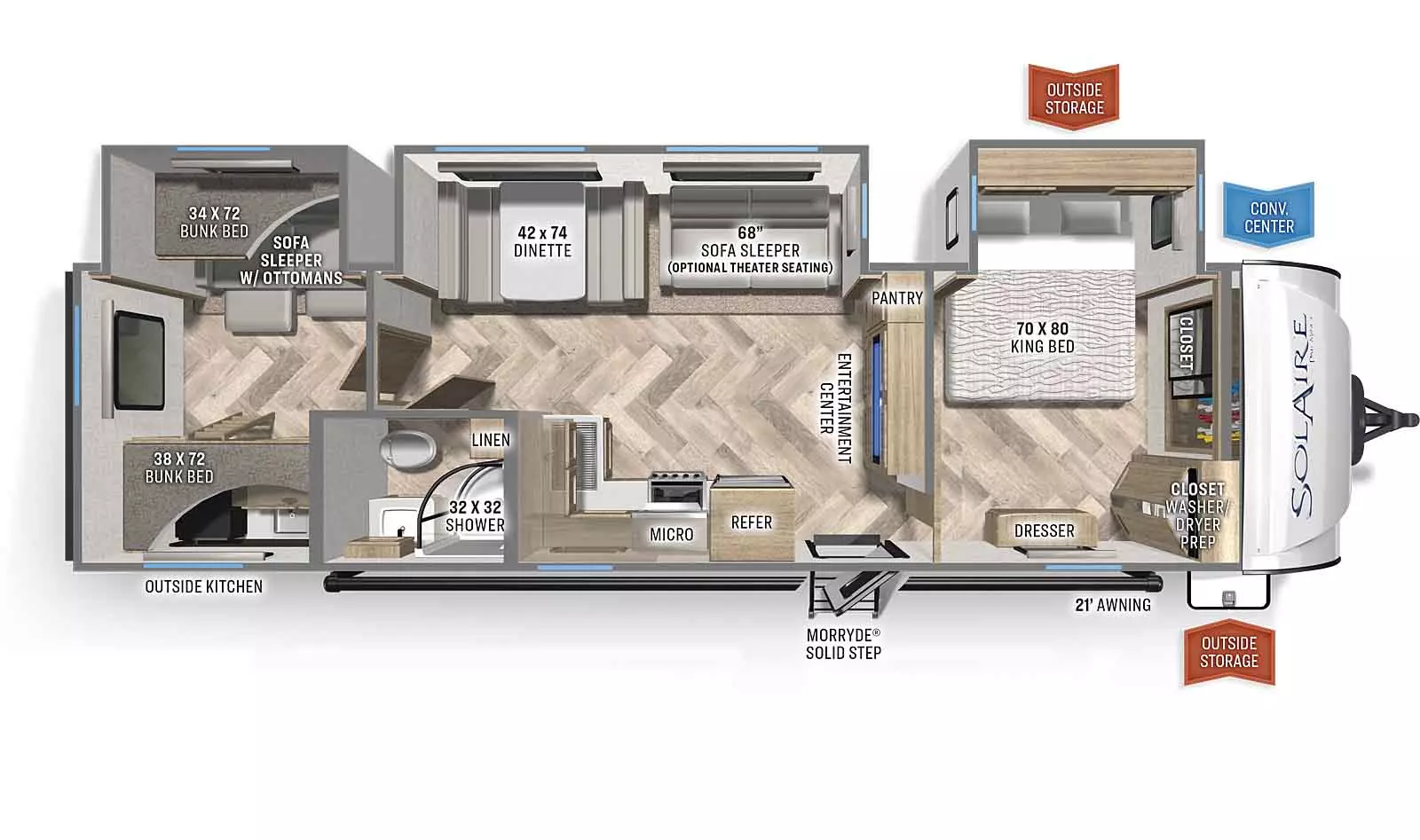

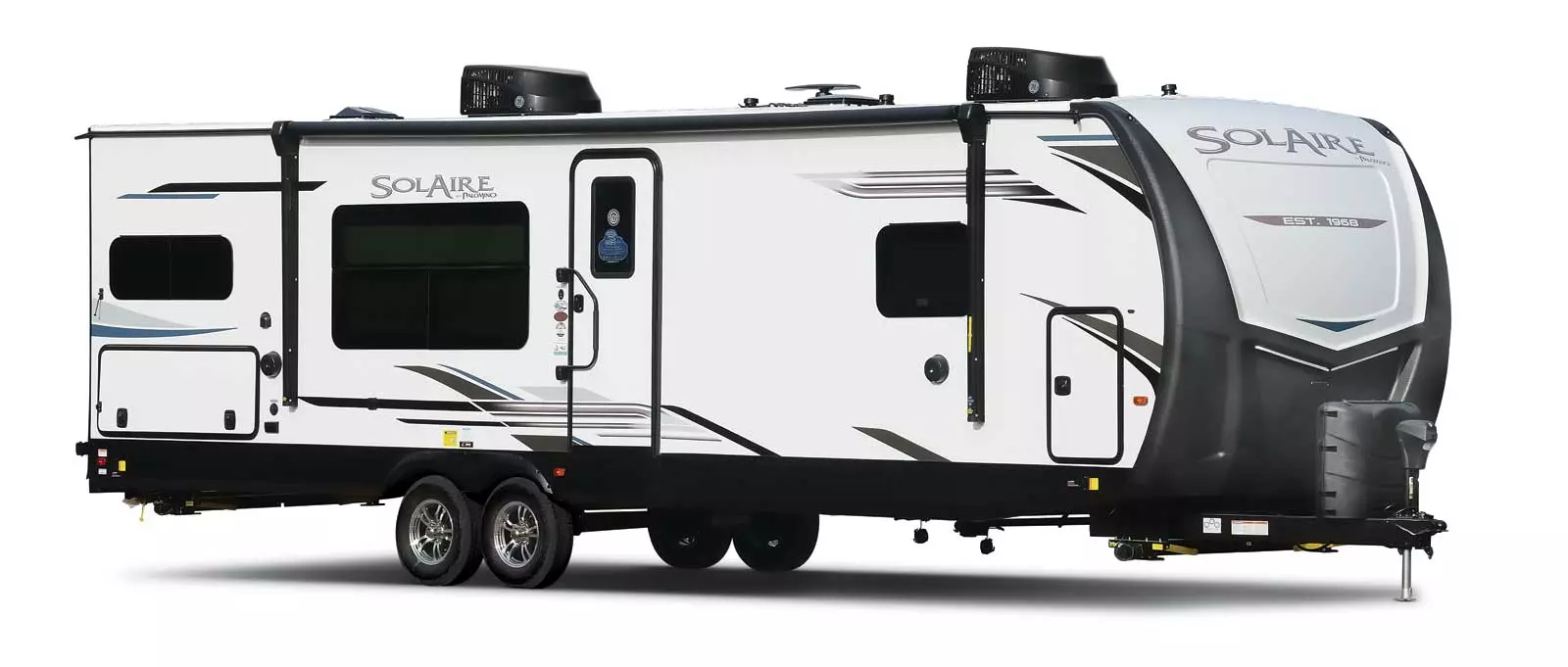

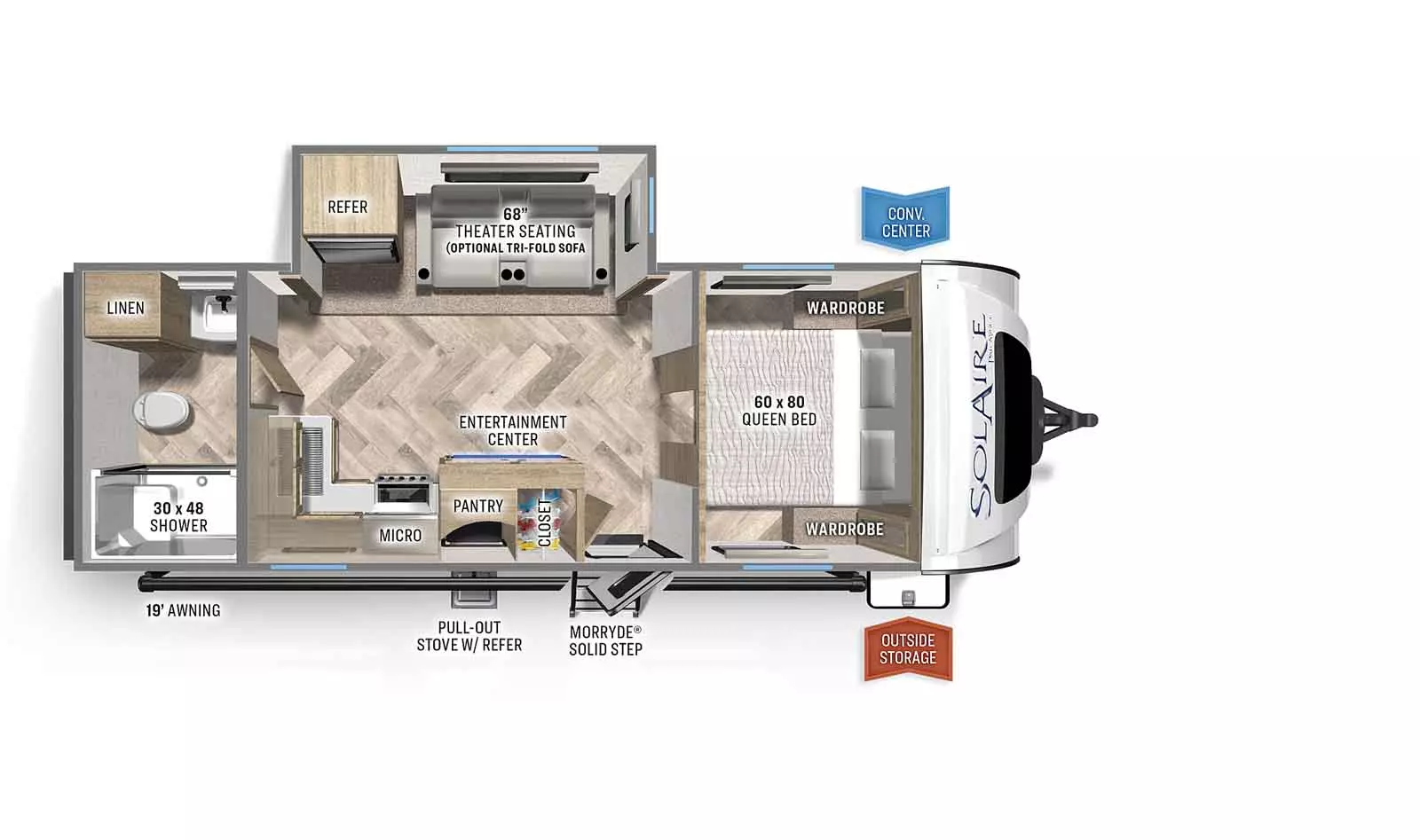

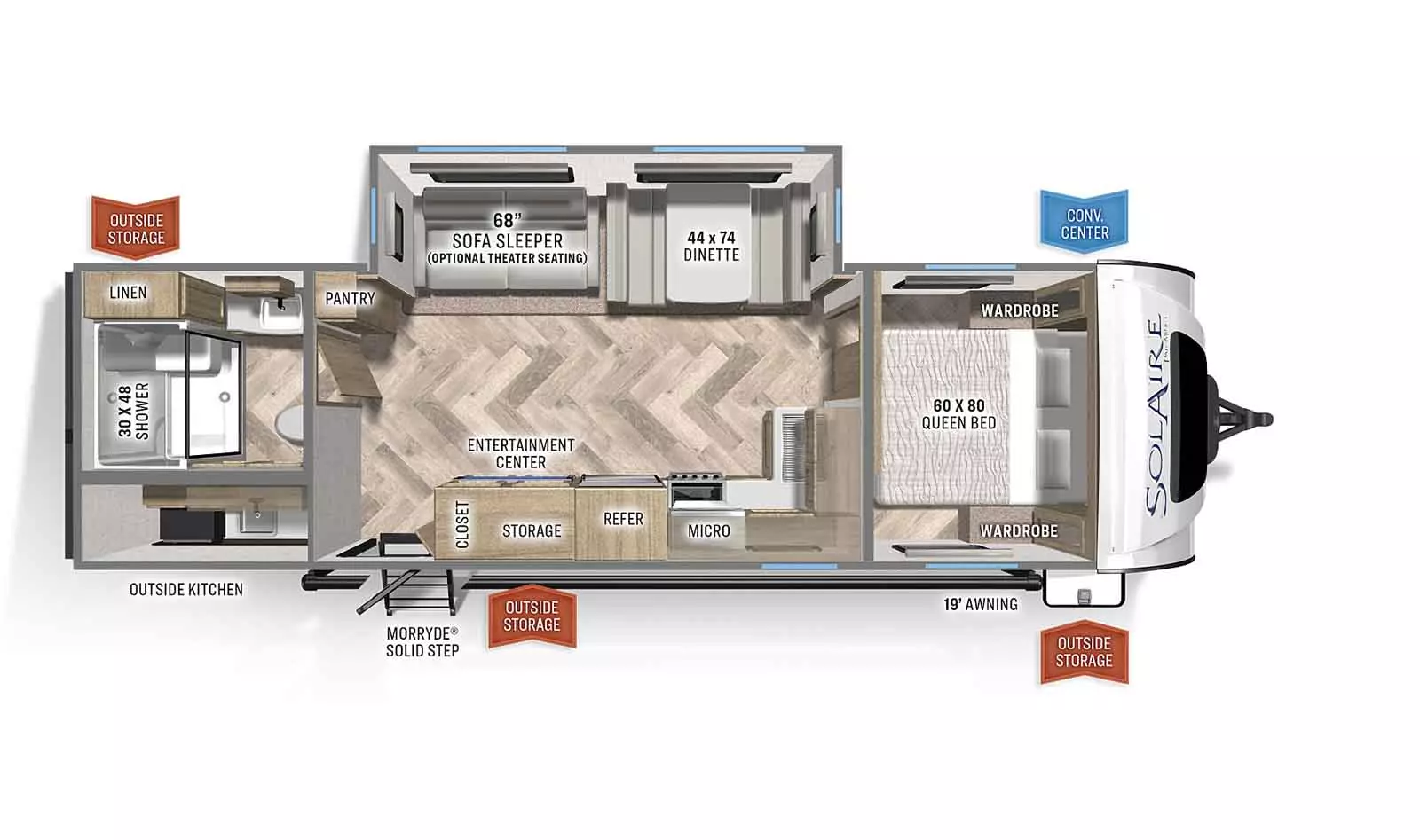

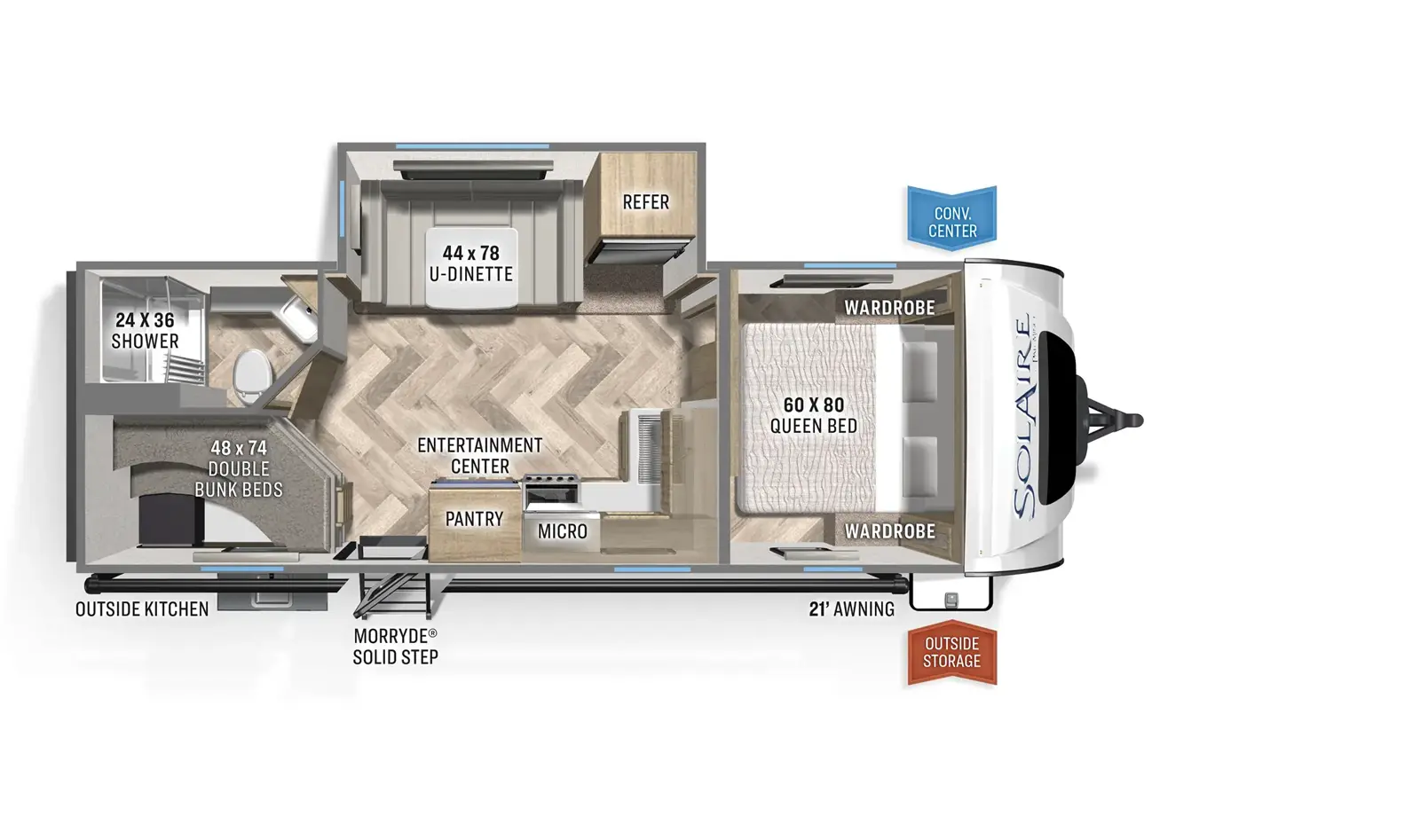

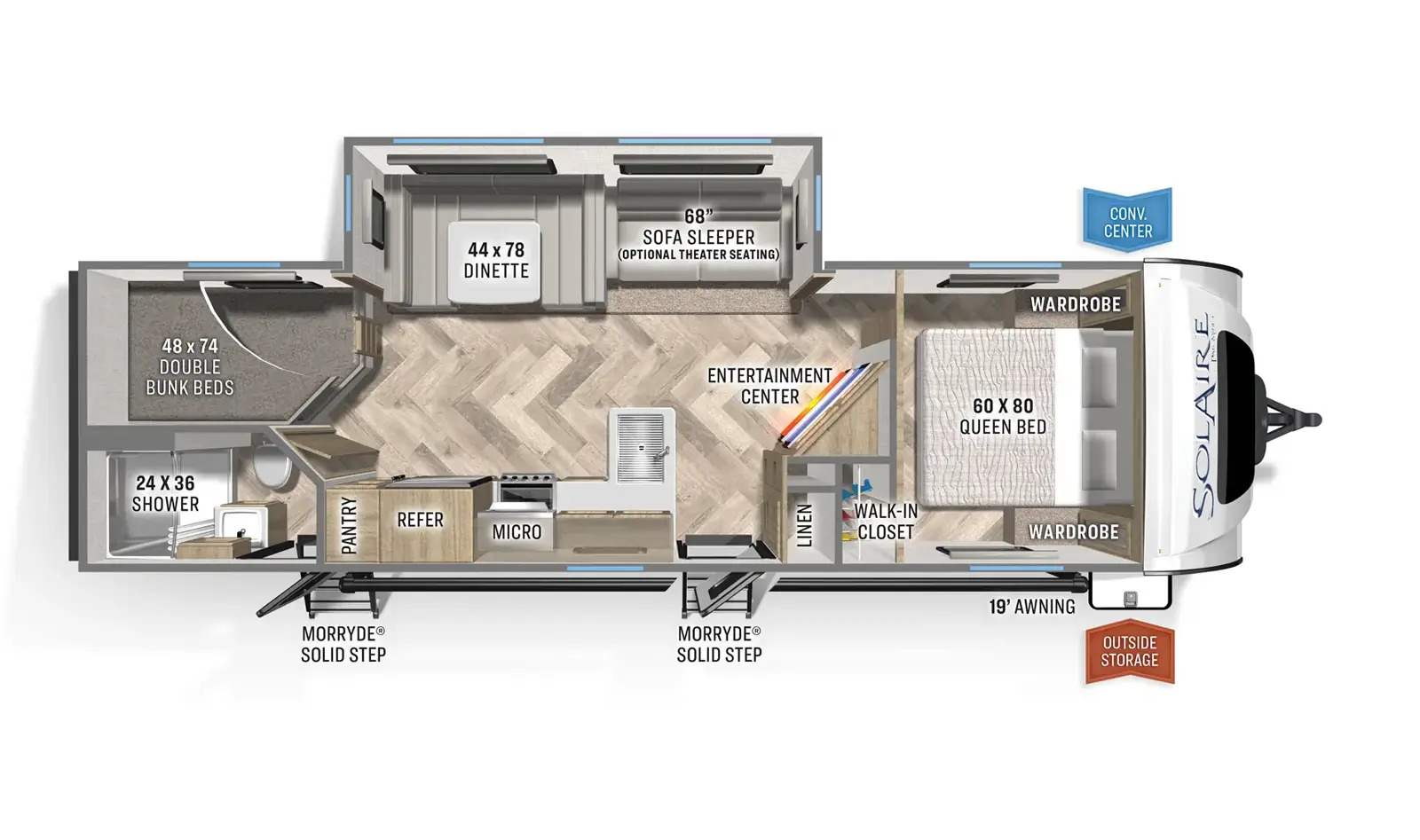

Floorplan: 205SS : Ultra Lite Travel Trailers 242RBS : Ultra Lite Travel Trailers 243BHS : Ultra Lite Travel Trailers 258RBSS : Ultra Lite Travel Trailers 294DBHS : Ultra Lite Travel Trailers 304RKDS : Ultra Lite Travel Trailers 320TSBH : Ultra Lite Travel Trailers 202RB : Temporarily Unavailable 217BH : Temporarily Unavailable 253RLS : Temporarily Unavailable 260FKBS : Temporarily Unavailable 317BHSK : Temporarily Unavailable 318RLTS : Temporarily Unavailable 319DQBH : Temporarily Unavailable
Hitch Weight:546 lb.625 lb.570 lb.765 lb.675 lb.920 lb.1,085 lb.536 lb.655 lb.607 lb.850 lb.705 lb.1,045 lb.860 lb.
GVWR:5,630 lb.7,265 lb.7,120 lb.7,765 lb.7,675 lb.8,920 lb.9,825 lb.5,125 lb.6,125 lb.7,607 lb.7,850 lb.8,705 lb.10,295 lb.8,794 lb.
UVW:4,384 lb.5,688 lb.5,533 lb.6,398 lb.6,393 lb.7,291 lb.7,958 lb.3,813 lb.4,553 lb.5,960 lb.6,233 lb.7,108 lb.8,458 lb.6,938 lb.
CCC:1,246 lb.1,577 lb.1,587 lb.1,367 lb.1,282 lb.1,629 lb.1,867 lb.1,312 lb.1,572 lb.1,647 lb.1,617 lb.1,597 lb.1,837 lb.1,856 lb.
Exterior Length:24' 3"27' 11"28' 11"32' 8"33' 6"35' 2"36' 3"23' 9"26' 4"30' 8"29' 11"35' 1"36' 3"36' 3"
Exterior Height:10' 1"11' 1"TBD11' 1"11' 1"11' 1"11' 1"10' 1"10' 1"11' 1"11' 1"11' 1"11' 1"11' 1"
Exterior Width:96"96"96"96"96"96"96"96"96"96"96"96"96"96"
Fresh Water:44.00 gal.44.00 gal.44.00 gal.44.00 gal.44.00 gal.44.00 gal.44.00 gal.44.00 gal.44.00 gal.44.00 gal.44.00 gal.44.00 gal.44.00 gal.44.00 gal.
Gray Water:38.00 gal.38.00 gal.60.00 gal.68.00 gal.60.00 gal.106.00 gal.98.00 gal.38.00 gal.68.00 gal.68.00 gal.60.00 gal.76.00 gal.98.00 gal.68.00 gal.
Black Water:30.00 gal.38.00 gal.30.00 gal.30.00 gal.30.00 gal.38.00 gal.30.00 gal.38.00 gal.30.00 gal.30.00 gal.30.00 gal.38.00 gal.30.00 gal.30.00 gal.
Awning Size:12'20'21'19'19'20'21'14'19'21'21'21'11' & 11'19'

GVWR (Gross Vehicle Weight Rating) – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GAWR (Gross Axle Weight Rating) – is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by a combination of all axles.

UVW (Unloaded Vehicle Weight)* – is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s) and tongue or pin and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity) ** – is the amount of weight available for fresh potable water, cargo, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before filling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

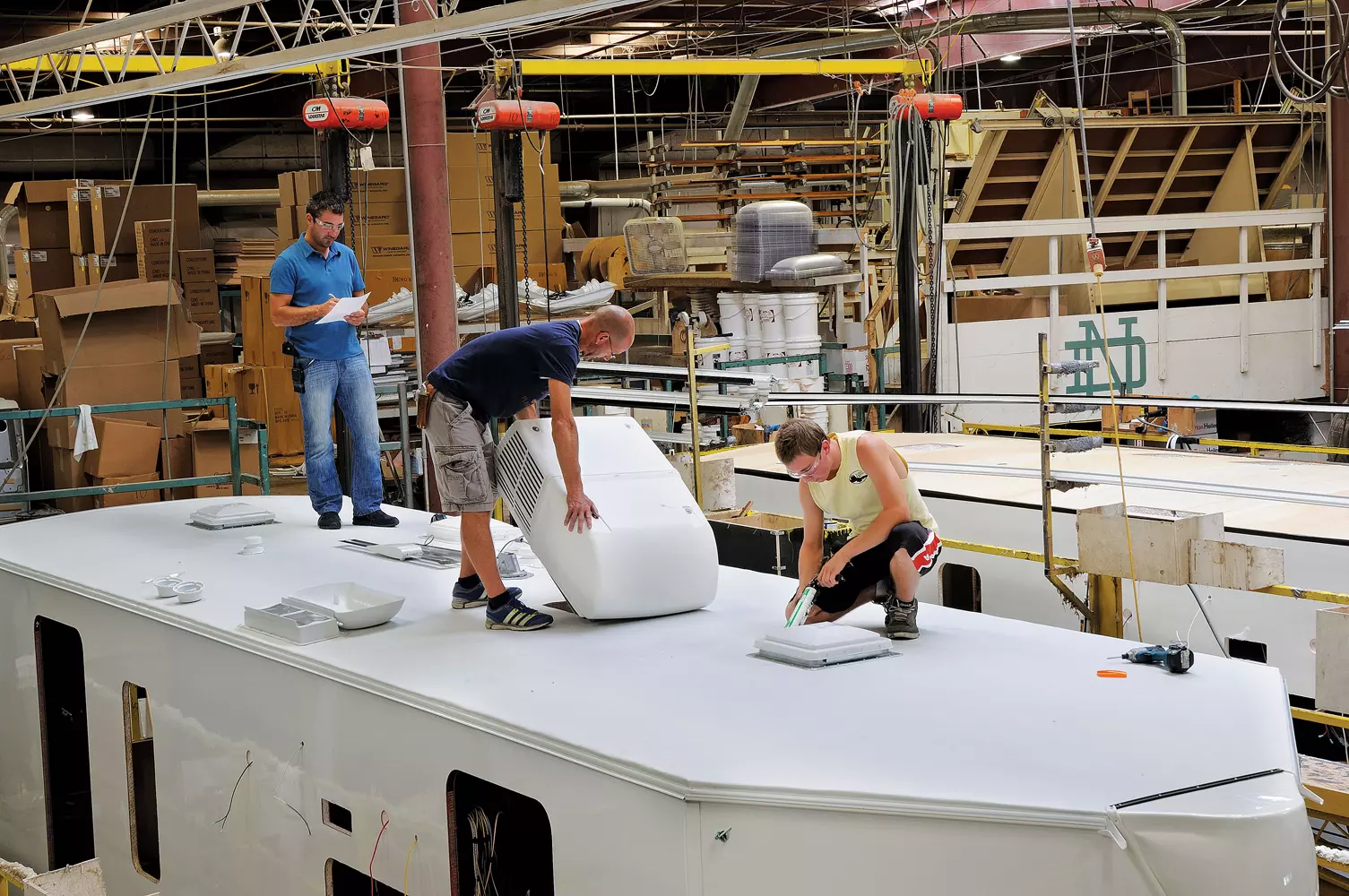

Each Palomino RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Palomino RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.

Note: Specifications are subject to change without notice.

Features & Options

Print
  • Power Awning w/LED Lights

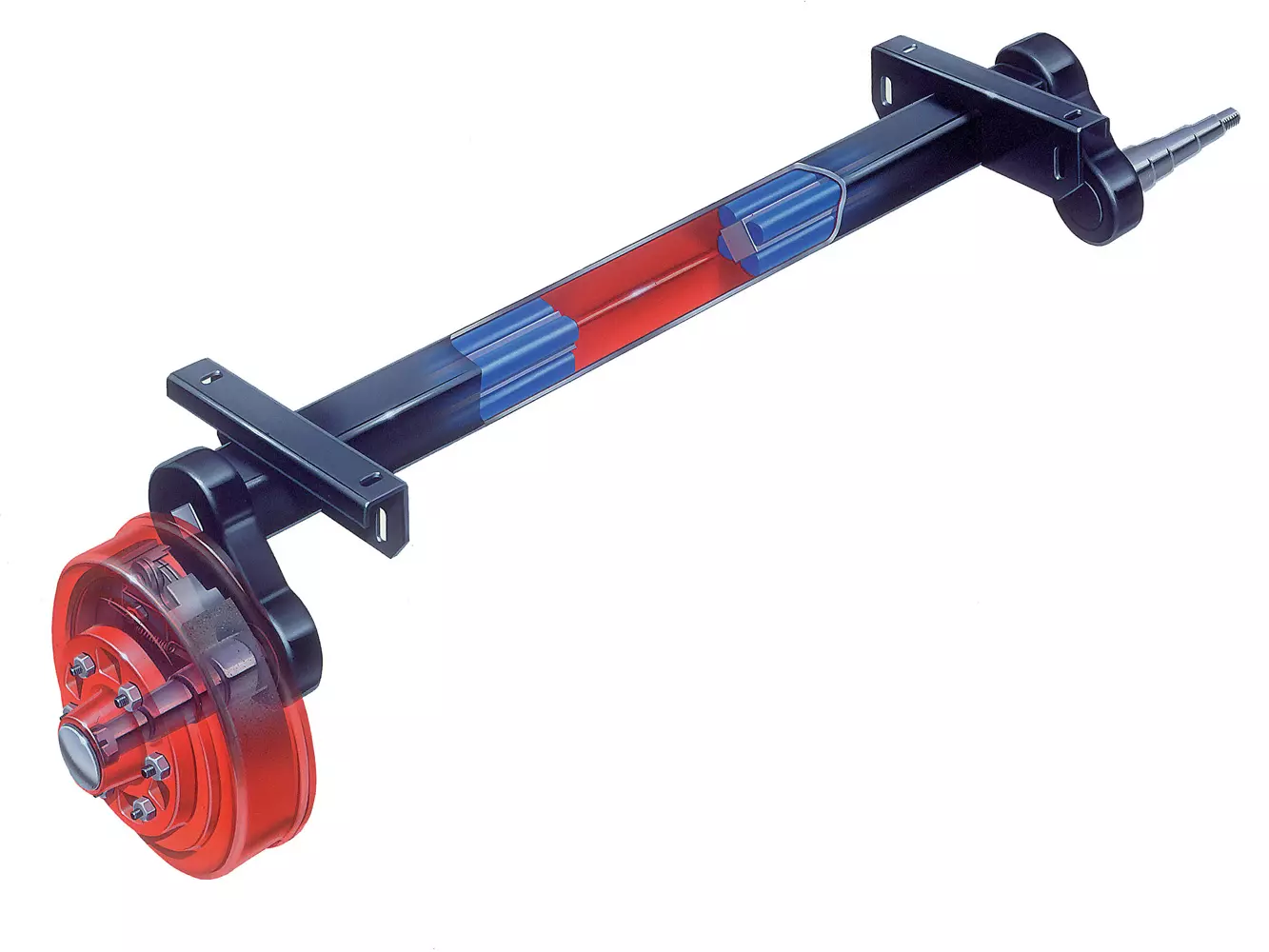

  • Dexter Tor-Flex Torsion Axles
  • Furrion HDMI DVD/Bluetooth/HDMI Stereo

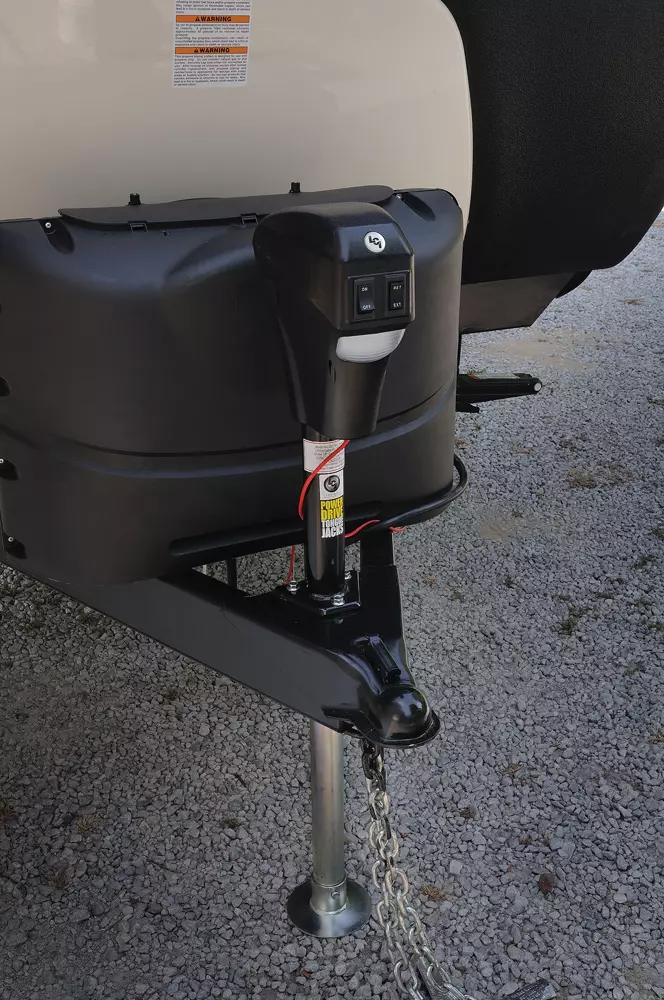

  • Power Tongue Jack
  • 13,500 BTU Ducted A/C

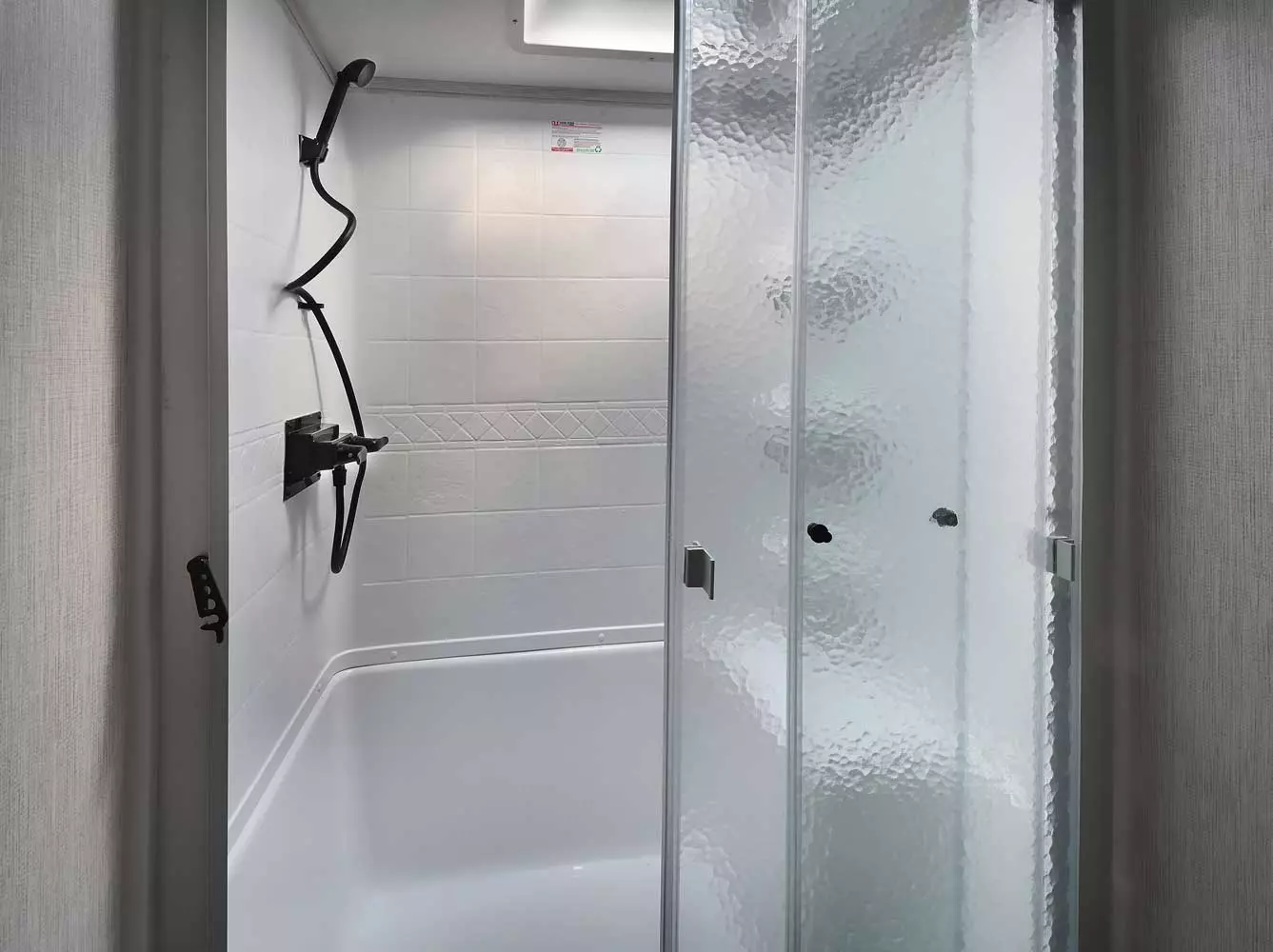

  • Tub Surround w/Skylight
  • Ball Bearing Drawer Guides
  • Microwave

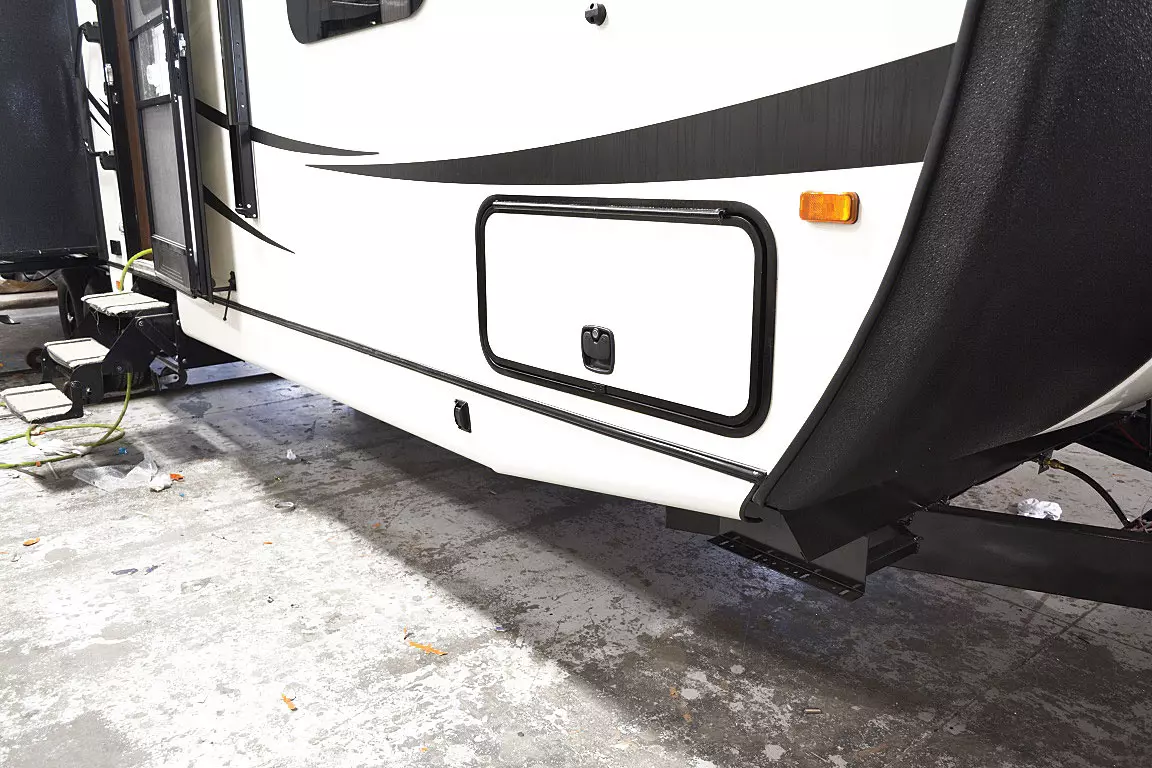

  • Slam Latch Baggage Doors w/Magnets
  • Black Tank Flush
  • Solid surface counter tops
  • Stainless Steel kitchen sink with roll cover
  • Aluminum wheels
  • 2/3 Front Fiberglass Cap (Windshield Included on All Except 304, 318, 320)
  • LED Interior Lighting
  • White Hi Gloss Exterior
  • USB Ports
  • Roller Shades
  • 11 cubic foot Refrigerator
  • Tire Pressure Monitoring System
  • Glass Top Flush Mount Range
  • Maxx Air Vent (Bathroom)
  • Bedroom Air Conditioner (304, 318, 320 Only)
  • 8 cubic foot Gas/Electric Refrigerator
  • Counter top extension (N/A 202, 217, 260, 320)
  • 30 lb. LP tanks
  • Free standing table & chairs
  • Power stabilizer jacks (N/A on 202/205/217)
  • RVQ bumper mount grill
  • 68” theater seating
  • Tri-fold sofa upgrade
  • 50 AMP Service (Std in 304/316/320)
  • Washer/Dryer (304/316/320 only)
  • Fireplace (N/A on 202/205/217)
  • WiFi booster
  • TV (size varies depending on floorplan)
  • Air Conditioner – 15,000 BTU
  • 50 AMP Service – std. on 304/318/320
  • Washer/Dryer – 304/318/320 only
  • WiFi Booster
  • Fireplace
  • Bedspread / Pillow Combo
  • Solid Surface Countertops Throughout
  • Roof Ladder
  • Bonded Frameless Windows
  • Power Stabilizer Jacks
  • Heated Holding Tanks
  • Full Fiberglass Cap w/Line X
  • Smart Arm - Awning Control
  • Air Conditioner – 15,000 BTU
  • Thermo foil barrier (floor and slideout)
  • 2-30 LB LP tanks
  • Heated Tank Pads


Videos

Some videos may show features or options not available on all products. Contact our service representatives or your local dealer if you have questions about how your specific RV operates.
